Best 10 Theory-of-Machines Mechanism Projects Students Actually Build
Quick answer: The mechanism projects mechanical students order most are working theory-of-machines rigs you can measure, not display pieces: the ball-and-beam PID rig for the strongest control-systems viva story, the cam-and-follower model with dial indicator for the easiest build, and the epicyclic gear-train rig for the best theory-to-measurement comparison. Geneva drives, governors, gyroscopes, Scotch yokes, clutches and quick-return rigs round out the list.

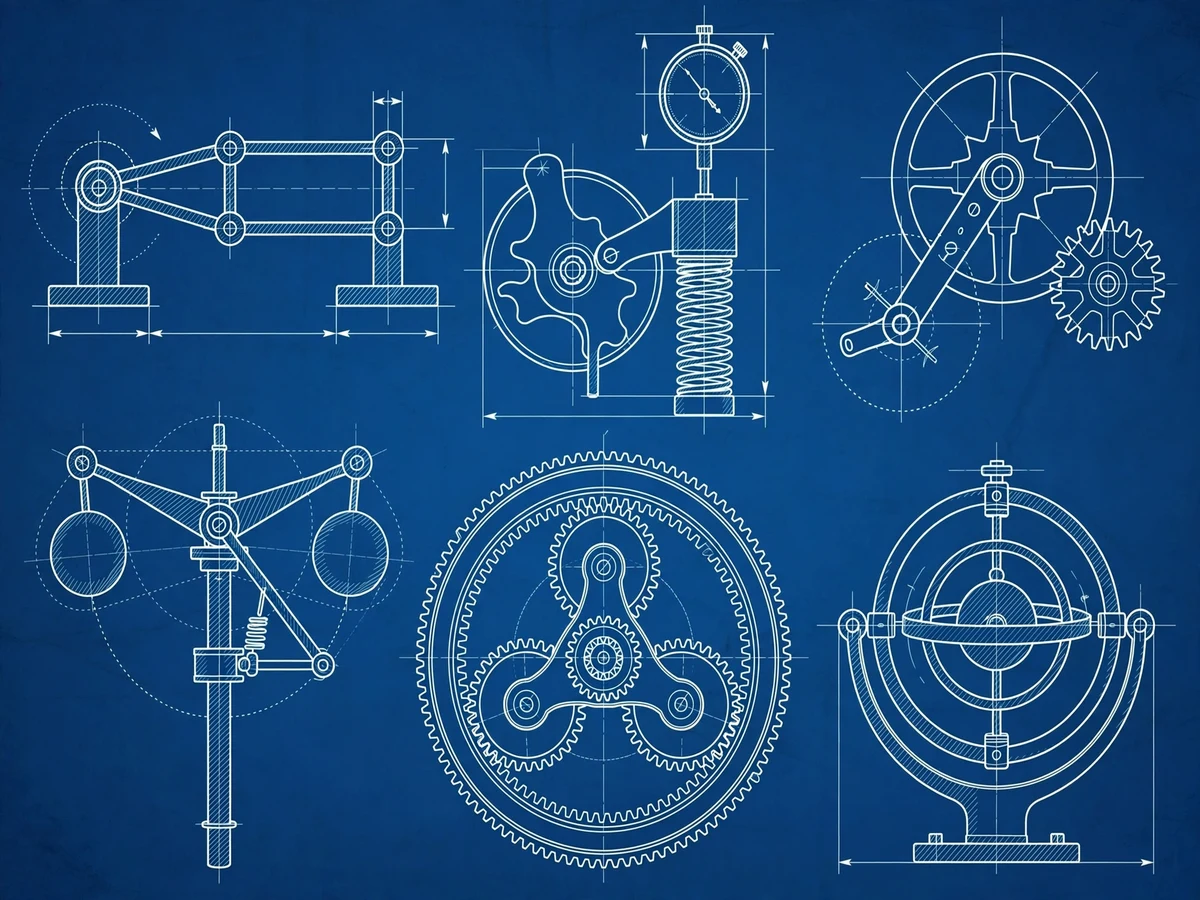

Theory of machines is the subject mechanical students describe the same way every year: the diagrams make sense, the derivations check out, and none of it feels real until something moves. These ten projects are the ones that close that gap. Every entry below is a real, published project on projectech.in — a working mechanism build, not a poster — and each one was picked because students actually ask for it: mechanism working models and demonstration rigs they can run, measure, plot against theory, and defend in a viva. The list was chosen from the themes mechanical clients enquire about most: cams, governors, gear trains, linkages, intermittent-motion drives and the classic control rigs.
1. Ball and Beam Balancing System with PID Control
The ball and beam is the canonical teaching rig for feedback control: a steel ball rolls on a pivoted aluminium beam, and because the ball accelerates away from any tilt, only a well-tuned controller can hold it still. This project makes PID physical. An ultrasonic sensor tracks the ball's position along the beam, an Arduino Uno runs the PID loop, and a high-torque servo tilts the beam through a linkage arm to drive the ball toward the setpoint. The real learning is the tuning arc the build is designed around: start with proportional-only control and watch it oscillate, add derivative to damp the oscillation, then discover what integral does to steady-state error — each stage documented with step-response plots from the student's own rig via serial data logging. It is the rare project where the viva practically runs itself, because the examiner can tap the beam and watch the controller recover. Students pick it when they want a control-systems story with genuine experimental content: tuned Kp, Ki and Kd values, plotted responses, and a disturbance-rejection demo, all from hardware they assembled.
2. Cam and Follower Mechanism Working Model with Dial Indicator
Cams open engine valves, drive textile looms and time automatic machines — yet students usually meet the cam as a displacement curve drawn on paper, with no feeling for what the curve means on steel. This rig makes the curve physical: a 12 V DC motor with a speed controller spins interchangeable cam plates while a spring-loaded follower rides the profile, and a dial indicator mounted above reads the follower's lift to 0.01 mm. Three cam profiles are supplied, so the student watches a gentle rise, a dwell and a smooth return happen in metal, then plots each cam's displacement diagram from their own dial-indicator readings taken degree by degree on the indexing setup. The most honest part of the report is the gap between the theoretical curve and the measured one — backlash, spring lag and manufacturing tolerance all show up in the numbers. It is one of the simplest builds on this list (aluminium extrusion frame, machined cam plates, a 12 V motor), and students pick it when they want a clean theory-to-measurement project with real plotted data.
3. Centrifugal Governor Demonstration Model
The centrifugal governor is the classic feedback device of mechanical engineering — the mechanism that kept steam engines at constant speed — and this project builds it as a working Porter-type demonstration model. Spinning flyballs rise with speed and lift a sliding sleeve, driven by a 12 V DC motor through a belt on a wooden base, with a panel speed regulator and a 0–500 rpm dial tachometer (design value) so any speed can be set and held. The experiment is straightforward and genuinely quantitative: record sleeve position against speed across the tachometer range, plot the governor characteristic curve, and work out sensitivity from the curve's slope. Then swap the interchangeable control spring for a stiffer or softer one and repeat the sweep — the characteristic shifts, and a purely mechanical device becomes a control-systems experiment. The build ships with fabrication drawings, the characteristic-plotting procedure, and the full report, PPT and viva kit. Students pick it when they want a historically grounded mechanism with measured curves they generated themselves.
4. Epicyclic Gear Train Demonstration Rig with Ratio Verification
Epicyclic gear trains pack large ratio changes into a compact package — they sit inside automatic gearboxes, wind-turbine gearboxes and e-bike hubs — and in theory of machines students compute their ratios with the tabular method without ever touching one. This bench-top rig fixes that: a machined module-2 gear set (18-tooth sun, three 24-tooth planets on a carrier, 66-tooth internal ring) mounted in a fabricated MS frame behind a transparent acrylic cover, so every mesh is visible while it runs. Locking pins fix the ring, the sun or the carrier in turn; the student cranks the input shaft by hand and counts output revolutions on 360-degree discs, computing the measured ratio for each of the three classic configurations and comparing it with the tabular-method prediction from the included ratio workbook. The small mismatch caused by backlash becomes the honest centerpiece of the viva discussion. An optional DC gear motor with PWM controller allows continuous running. Students pick it for the best theory-versus-measurement story on this list: a prediction made on paper, then confirmed — with documented error — on hardware.
5. Four-Bar Linkage Grashof Mechanism Demonstration Rig
The four-bar linkage is the most-taught mechanism in theory of machines, and Grashof's criterion — the inequality that decides whether the crank can rotate fully — is usually verified only on paper. This motorized rig makes it tangible: a 12 V geared DC motor drives the crank link at about 30 RPM while the coupler and rocker move through exact crank-rocker motion. Each aluminium link carries multiple pivot holes, so link lengths can be changed to build Grashof and non-Grashof configurations deliberately — assemble a non-Grashof chain and watch the crank lock up, then measure exactly why the inequality matters. Every link is labeled with handwritten masking-tape tags (crank, coupler, rocker, fixed link), and the report covers Grashof's law, transmission angle and inversion theory with a student-run verification. The build is deliberately simple — flat bars, brass pivot pins, a geared motor, a plywood base — so the mechanism, not the hardware, is the star. Students pick it when their examiner is likely to ask "but what happens if the lengths don't satisfy Grashof?" — because they will have the answer on video.
6. Geneva Mechanism Demonstration Model
Many machines need motion that stops and starts: indexing tables, tool changers and packaging conveyors all rely on intermittent drive, and the Geneva mechanism — the Maltese cross — produces it with nothing but geometry. This bench-top model pairs a 6-slot Geneva star wheel on bearing blocks with a motor-driven crank wheel carrying a single hardened drive pin: each crank revolution indexes the wheel exactly 60 degrees, while a locking disc riding the wheel's concave faces holds it positively stationary through each dwell. An index-angle degree dial with a pointer on the base lets the student measure motion versus dwell angles directly and verify the timing ratio against the theoretical external-Geneva relation for a 6-slot wheel. The build documents the engagement effects textbook geometry omits — the shock at pin entry, how firmly the locking disc holds against disturbance — with a DC geared motor and PWM speed controller for adjustable rate. Students pick it when they want an intermittent-motion story that photographs well and measures cleanly, equally strong in a viva room and a department display case.
7. Gyroscope Demonstration Rig with Gimbal Mount
Gyroscopic rigidity and precession steer ships, stabilize satellites and keep bicycles upright — and they are among the hardest dynamics topics to internalize from equations alone. This rig makes them visible: a lathe-turned brass rotor spun up by a DC motor through a rubber friction drive sits in a two-axis gimbal on bearings, with a PWM speed controller setting the spin speed. Students tilt the frame and feel the rotor resist (rigidity in space), then apply a known torque with calibration weights at a known radius and time the resulting precession with a stopwatch. Timing precession rates at several spin speeds lets them verify the gyroscopic-couple relation (C = I·ω·ωp) against their own measurements on the observation sheet. The build includes a tachometer reference and a couple-verification procedure. Students pick it when they want a dynamics project with a genuinely physical "aha" moment — the kind where the examiner asks to try it themselves — backed by measured numbers that check out against theory.
8. Scotch Yoke Mechanism Demonstration Model
The Scotch yoke appears in almost every theory-of-machines syllabus as the textbook example of rotary-to-reciprocating conversion producing pure simple harmonic motion — and this model lets students measure that claim. A 12 V DC geared motor turns a crank wheel at approximately 60 RPM (adjustable via PWM); a brass crank pin riding in the vertical slot of a sliding yoke block converts rotation into sinusoidal slider motion, with the horizontal displacement following x = r·cos(θ) exactly. Moving the crank pin between the 20, 30 and 40 mm holes changes the stroke to 40, 60 or 80 mm, confirmed on the graduated scale, and the twin guide rods constrain the yoke so it cannot rotate. Students count strokes per minute, time a cycle against the theoretical value, and watch the slider hit maximum velocity at mid-stroke and zero velocity at the dead centres — the signature of SHM. The practical details the diagram hides (pin engagement in the slot, backlash distorting the "perfect" sine wave, actual motor torque) all become measurable. Dimensioned 2D fabrication drawings and a motion-timing chart ship with the model, and students pick it for the cleanest kinematics-measurement story on this list.
9. Single Plate Clutch Cutaway Model
The single plate clutch is the component every mechanical student can name but few have ever seen inside — buried between engine and gearbox in a running vehicle, usually just a poster in the lab. This project takes a genuine clutch assembly and quarter-sections it to expose the flywheel with starter ring gear, the riveted friction disc with damper springs, the pressure plate and spring pack, and the release bearing with a working hand lever — all mounted on a welded steel display stand with engraved part labels. Pulling the release lever visibly separates the plates: the release bearing pushes the spring fingers, the pressure plate lifts, and the output shaft can be held still while the flywheel turns. Students trace the power flow — flywheel to friction disc to splined hub to shaft — by hand, and rehearse the guided demonstration script until they can deliver the full engagement-cycle explanation without notes. Fabrication and sectioning drawings, the report, PPT and viva kit are included. Students pick it when they want hardware that is both the experiment and the exhibit: equally at home in a viva and a department display case.
10. Whitworth Quick-Return Mechanism Demo Rig
In metal shaping, the cutting tool should move slowly while cutting and return quickly while idle — and the Whitworth quick-return mechanism achieves exactly that with pure kinematics. A crank rotating at constant speed drives a slotted lever through a sliding block, and the drive geometry makes the ram's forward stroke slower than its return; the timing ratio follows directly from the crank-circle geometry and changes with crank radius, a result every theory-of-machines student derives on paper. This bench-top rig turns that derivation into hardware: an adjustable crank disc, slotted lever and guided ram driven by a single-phase motor through a V-belt reduction, with the ram motion read on a graduated scale. The student sets the crank radius, times the actual cutting and return strokes, and compares the measured timing ratio with the theoretical value from the crank geometry. Fabrication drawings, a velocity-analysis manual, report, PPT and viva Q&A are included. Students pick it for the most satisfying "the math was right" moment on this list — a measured ratio landing on the theoretical one.
The ten projects compared
| Project | Core mechanism | Key measurement | Build difficulty | Who it's for |
|---|---|---|---|---|
| Ball and beam PID rig | Feedback control on a pivoted beam | Tuned Kp/Ki/Kd, step-response plots | Medium–Hard | Control-systems and mechatronics students |
| Cam and follower model | Rotating cam, spring follower | Displacement diagram from dial readings | Easy–Medium | Students wanting a clean measurement project |
| Centrifugal governor | Porter-type flyball governor | Sleeve-lift vs speed characteristic | Medium | Students who like plotted experimental curves |
| Epicyclic gear train rig | Planetary sun/planet/ring set | Measured vs tabular-method ratios | Medium | Gear-theory and transmission enthusiasts |
| Four-bar Grashof rig | Adjustable four-bar linkage | Grashof vs non-Grashof behavior | Easy–Medium | Anyone facing a theory-heavy viva |
| Geneva mechanism model | 6-slot intermittent drive | Motion vs dwell timing ratio | Medium | Students wanting a display-worthy build |
| Gyroscope gimbal rig | Spinning rotor, two-axis gimbal | Precession rate vs gyroscopic couple | Medium | Dynamics students chasing the "aha" demo |
| Scotch yoke model | Crank pin in slotted yoke | Stroke timing vs SHM theory | Easy–Medium | Kinematics-measurement purists |
| Single plate clutch cutaway | Sectioned friction clutch | Engagement-cycle demonstration | Medium | Students wanting exhibit-grade hardware |
| Whitworth quick-return rig | Crank and slotted lever | Cutting/return timing ratio | Medium | Shaper-mechanism and manufacturing students |
How to pick yours
Start with your constraints, not your curiosity. If your viva is theory-heavy, pick the rig whose derivation your examiner will probe — the four-bar Grashof rig, the epicyclic gear train, or the Whitworth quick-return — because each ships with the theory documented and the measurement that confirms it. If you have limited workshop access, lean toward the simpler builds: the cam-and-follower model and the Scotch yoke need basic fabrication, not a machine shop. If your timeline is tight, the cutaway clutch model and the governor demo are closer to assembly-and-measure than build-from-scratch. Budget-wise, mechanism rigs are among the most economical mechanical projects — mostly steel, bearings and small DC motors — but get an exact figure through the quotation flow before committing, since every project here is built to order. And if you are torn between two, pick the one whose demo you would enjoy running five times in a row: you will, in the viva.
FAQs
Are these working models or just display pieces? Working rigs. Every project on this list is built to be run and measured: motors drive the mechanisms, dials and scales capture the readings, and the included procedures walk you through plotting results against theory. The single plate clutch cutaway is the closest to a display piece, but even it operates — the release lever visibly engages and disengages the plates.
How much workshop access do I need? Less than you'd expect. Most of these rigs are designed around basic fabrication — cutting, drilling, tapping and simple welding — with machined parts (gears, cam plates, the brass rotor) supplied as finished components. The cam-and-follower model and the Scotch yoke are the lightest on workshop needs; the epicyclic gear train and the governor involve more assembly precision.
Which project gives the strongest viva story? The ball-and-beam PID rig, by a clear margin: examiners can disturb the system live and watch the controller recover, and the tuning arc (P oscillation, D damping, I removing offset) gives you plotted evidence for every claim. The epicyclic gear train runs second — a paper prediction confirmed on hardware, with the backlash mismatch as honest discussion material.
Can I extend one of these into a larger project? Yes, and several are designed for it. The ball-and-beam rig extends naturally into advanced control (LQR, fuzzy logic, or vision-based ball tracking). The governor model extends into electronic speed control comparisons. The four-bar rig extends into kinematic synthesis — designing link lengths for a target motion rather than verifying given ones.
What does "built to order" actually mean? Each project is fabricated after you order it, to the specification on its page — not pulled from a warehouse shelf. That means the mechanism, drawings, report, PPT and viva kit arrive matched to the project you chose. Get a quotation first so the scope, timeline and price are fixed in writing before the build starts.
My college lab already has some of these models. Is this still worth it? Lab models are usually decades old, fixed-configuration, and shared across batches. A built-to-order rig is yours: adjustable (interchangeable cams, springs, link lengths, crank radii), instrumented for your measurements, and documented with your readings — which is what turns a demonstration into a project you can defend.
A closing note
Theory of machines rewards students who can point at moving hardware and explain it. Every project on this list is built to order and quotation-based — the mechanism, the measurement procedure, the drawings, the report and the viva kit arrive as one matched package, and the numbers in your report will be the ones you measured on your own rig. Pick the mechanism whose theory you most want to understand deeply; the build will take care of the rest.
