ESP32 vs Arduino vs Raspberry Pi for IoT Projects

If you are building a final-year IoT project, choosing the controller is one of the first decisions that affects almost everything else: sensors, software, connectivity, power supply, cost, and how difficult the project becomes to debug.

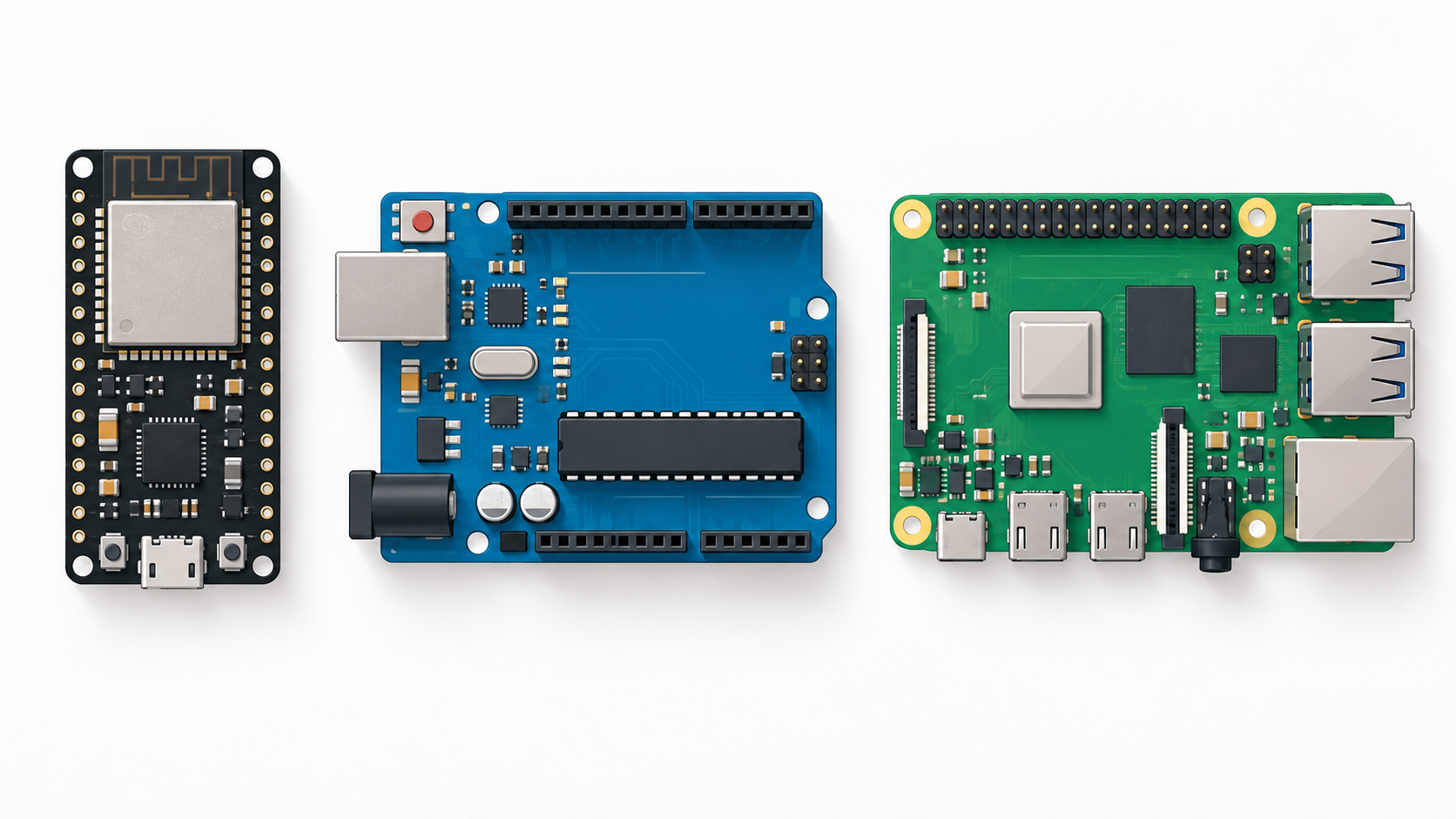

The ESP32 vs Arduino vs Raspberry Pi comparison is sometimes presented as if all three boards compete directly. They do not. An Arduino Uno and an ESP32 are microcontroller platforms. They are designed to read sensors, control relays, generate PWM signals, communicate with modules, and execute embedded code continuously. A Raspberry Pi 4, on the other hand, is a single-board computer. It boots an operating system, runs multiple processes, uses files and databases, connects displays and cameras, and can run applications written for Linux.

For most student IoT projects—especially projects involving sensors, MQTT, mobile dashboards, cloud monitoring, or Wi-Fi control—the ESP32 is usually the practical starting point.

Quick comparison table

Here is the practical comparison we use when selecting hardware for a student project.

The ESP32 specification is much more substantial than many students expect. The classic ESP32 family provides a dual-core 32-bit Xtensa processor running at up to 240 MHz and 520 KB of on-chip SRAM, with 2.4 GHz Wi-Fi and Bluetooth integrated into the chip.

The Arduino Uno Rev3 uses the ATmega328P, running at 16 MHz, with 2 KB SRAM, 32 KB flash memory, 14 digital I/O pins and six analog inputs. Its operating logic voltage is 5 V.

The Raspberry Pi 4 uses Broadcom's BCM2711 with a quad-core Cortex-A72 64-bit processor, currently specified at 1.8 GHz, and includes dual-band 802.11ac Wi-Fi, Bluetooth 5/BLE, Gigabit Ethernet, USB and camera/display interfaces.

The prices above are typical 2026 Indian street prices, not fixed manufacturer prices. Development-board versions, genuine versus compatible Arduino boards, RAM capacity, seller, GST and availability can move the actual purchase price considerably.

The important point is that clock speed and RAM alone should not decide your board. A Raspberry Pi is dramatically more powerful, but that does not make it automatically better for reading a temperature sensor every five seconds.

When to choose ESP32

For most final-year IoT projects, we start by asking one question: Does the device itself need Wi-Fi or Bluetooth? If the answer is yes, ESP32 is usually the first board worth considering. Built-in wireless is its biggest practical advantage. You do not need to add a separate ESP8266 Wi-Fi module, Ethernet shield or Bluetooth module just to get the project online.

That makes the ESP32 particularly suitable for projects involving: MQTT communication; IoT cloud dashboards; Blynk-style mobile dashboards; Firebase-connected systems; HTTP/REST APIs; web-based device control; Bluetooth configuration; real-time sensor monitoring; multiple sensors connected over I2C, SPI, UART or GPIO; remote alerts and automation.

Suppose you are building an IoT energy meter. The controller might need to read voltage and current sensors, calculate values, update a display, switch a relay and upload readings to a dashboard. That is exactly the type of workload where an ESP32 makes sense. The 240 MHz dual-core processor and 520 KB SRAM provide considerably more room than an Arduino Uno for networking libraries, JSON parsing, MQTT clients, web interfaces and multiple peripherals.

ESP32 also supports peripherals useful in embedded systems, including ADC, UART, SPI, I2C, PWM, touch sensing and other hardware interfaces depending on the particular ESP32 variant.

ESP32 is especially strong for multi-sensor projects. Consider a smart agriculture system with: soil-moisture sensing, temperature and humidity, water-level monitoring, pump control, an OLED/LCD, a cloud dashboard, and phone alerts. An Arduino Uno can handle several sensors and the pump logic, but internet connectivity usually requires extra hardware. An ESP32 can perform the sensing and control while handling the network connection on the same board. This reduces the number of modules and often simplifies the overall architecture.

MQTT is a natural fit. MQTT is commonly used in IoT because devices can publish sensor values to topics and subscribe to commands. An ESP32 can, for example: publish to projectech/lab1/temperature while subscribing to projectech/lab1/pump. The microcontroller remains responsible for the actual device control while a cloud service, laptop or Raspberry Pi can act as the broker/dashboard side of the system.

Watch the 3.3 V GPIO. There is one important difference from Arduino Uno: ESP32 GPIO uses 3.3 V logic. Do not assume every 5 V sensor output can be connected directly to an ESP32 input. Check the sensor/module specifications and use appropriate level shifting or voltage division where required.

From our builds: relay power can cause ESP32 brownouts. One fault we repeatedly avoid in ESP32 prototypes is powering the ESP32 and relay loads carelessly from the same weak 5 V rail. When a relay coil switches, the supply can dip or pick up switching noise. The ESP32 may then brown out, reset or behave unpredictably. Our practical fix is to use a separate suitable supply for the relay/load side, while maintaining the required common ground where the interface requires it. Also use a proper relay driver/module rather than attempting to power a relay coil directly from an ESP32 GPIO. A surprising number of "software bugs" in student ESP32 projects are actually power problems.

When to choose Arduino Uno

Arduino Uno still has an important place in final-year projects. Its advantage is not processing power. Its advantage is simplicity. If your project needs to: (1) read a few sensors, (2) apply straightforward control logic, (3) operate a motor, buzzer, servo or relay, (4) display information, (5) and repeat that loop continuously — the Arduino Uno may be enough.

A typical example is an automatic water-tank controller. You could have: water-level sensors, a pump relay, an LCD, a buzzer, and a few control buttons. There may be no practical reason to introduce Wi-Fi, Linux or a much more complicated software stack.

The Uno is useful with 5 V electronics. The Arduino Uno operates at 5 V, which is convenient when working with many traditional educational modules and circuits designed around 5 V logic. Arduino specifies the Uno Rev3 as a 5 V board based on the ATmega328P. That does not mean every 5 V device can automatically be connected without checking specifications, but it can simplify certain older sensor/module combinations compared with a 3.3 V controller.

It is easier for beginners to understand. The basic Arduino programming model is extremely clear: setup() / loop(). For someone learning embedded systems for the first time, this is valuable. You can explain exactly what happens: configure the pins, read the input, make a decision, control the output, repeat. Debugging a five-module Arduino prototype is usually easier for a beginner than debugging Linux services, Python environments, device permissions and network processes on a Raspberry Pi.

The limitation is memory. The Uno's 2 KB SRAM matters quickly. Simple variables and sensor readings are fine. Large strings, JSON documents, network stacks, image processing and complex application logic are not what this board was designed for. If you already know your project requires Wi-Fi, cloud APIs or a large dashboard communication stack, we would normally move to ESP32 instead of forcing an Uno to do the job through extra modules.

When the Arduino Uno is still the better choice. Choose it when the project is intentionally simple. Examples include: automatic street-light controllers, basic obstacle-avoiding robots, line followers, automatic irrigation without internet, simple motor-control prototypes, sensor-triggered alarms, traffic-light demonstrations, basic industrial control models. A final-year project does not become better simply because the controller is more powerful. The board should fit the problem.

When to choose Raspberry Pi

A Raspberry Pi should enter the discussion when your project stops looking like a microcontroller project and starts looking like a small computer system. The Raspberry Pi 4 contains a quad-core Cortex-A72 processor, substantial LPDDR4 memory, USB, Ethernet, Wi-Fi, Bluetooth, display interfaces and a CSI camera interface. More importantly, it runs Linux. That changes what you can build.

Choose Raspberry Pi when you need a camera. Camera projects are one of the clearest reasons to use a Pi: face-recognition attendance, people counting, object detection, number-plate recognition, visual inspection, security-camera analytics, computer-vision research prototypes. ESP32-CAM boards can capture images and handle lightweight camera applications, but a Raspberry Pi is much more appropriate when the project requires a larger computer-vision software stack. With Linux, you can use tools such as Python, OpenCV, databases, web frameworks and supported ML runtimes depending on the model and application.

Choose Raspberry Pi when you need AI. There is a large difference between "The controller reads a sensor and applies programmed rules." and "The device runs an image-recognition or machine-learning application." For the second case, Raspberry Pi is generally the more practical platform of these three. That does not mean every AI model will run efficiently on a Pi. Model size, accelerator requirements, memory and latency requirements still matter. But it provides the operating-system environment and memory required for workloads that would be unrealistic on an Arduino Uno.

Choose Raspberry Pi when the device must store and query substantial data. Suppose your project needs: SQLite, a local database, user accounts, historical records, a web dashboard, API endpoints, file storage. A Raspberry Pi can host these locally. For example, a smart-building prototype could use several ESP32 sensor nodes that publish readings using MQTT while a Raspberry Pi operates as: MQTT broker, database server, dashboard server, local analytics computer. This is often a better architecture than trying to make one microcontroller do everything.

Choose Raspberry Pi for a local web server. An ESP32 can serve lightweight web pages and APIs. But there is a difference between serving a small device-control page and running a proper application stack. If your final-year project needs something like: Camera → Python/OpenCV → Recognition algorithm → Database → Flask/Django/FastAPI server → Browser dashboard — a Raspberry Pi makes much more sense.

Remember the power requirement. Raspberry Pi is not a low-power replacement for an Arduino. For Raspberry Pi 4, the official specification calls for a 5 V supply with a minimum 3 A capability through USB-C or the GPIO power input. That is a completely different power class from a small microcontroller sensor node. If the project must run from a small battery for long periods, think carefully before choosing the Pi.

Decision flowchart

Use these five questions before ordering a board.

Question 1: Does the project need camera processing, Linux software, a substantial local database, or AI? Yes → Raspberry Pi. No → Go to Question 2.
↓
Question 2: Does the controller itself need Wi-Fi or Bluetooth? Yes → ESP32. No → Go to Question 3.
↓
Question 3: Does the project involve several sensors plus MQTT, a cloud dashboard or remote control? Yes → ESP32. No → Go to Question 4.
↓
Question 4: Is it mainly a simple sensor → logic → actuator system, especially using familiar 5 V educational modules? Yes → Arduino Uno is usually sufficient. No → Go to Question 5.
↓
Question 5: Does the project require computer-like software—multiple processes, Python packages, file storage, database services or a full local web application? Yes → Raspberry Pi. No → ESP32 is usually the most flexible default for a modern final-year embedded/IoT project.

In one line: Arduino Uno = control. ESP32 = connected control. Raspberry Pi = computing.

There are exceptions. For example, an ESP32-CAM may be perfectly suitable for a small camera-enabled embedded system without heavyweight vision processing. Similarly, an Arduino can access the internet by adding communication hardware. And a Raspberry Pi can toggle a relay. The question is not whether a board can perform the job. The better question is: Which board performs the job without adding unnecessary hardware or software complexity?

Mistakes students make

The most common board-selection mistake is choosing based on maximum specifications instead of project requirements.

Buying a Raspberry Pi for a temperature logger. Imagine the requirement: Read temperature every few seconds and upload it to an IoT dashboard. You need: a temperature sensor, internet connectivity, basic data formatting, an HTTP or MQTT client. An ESP32 already has the essential computing and wireless capability. Using a Raspberry Pi means you now also have: an operating system, a boot process, an SD card, considerably higher power requirements, package management, OS configuration, and a much higher controller cost. None of those automatically makes the temperature logger better. Use the Pi when its capabilities solve an actual requirement.

Choosing Arduino and then adding module after module. The opposite mistake also happens. A student starts with an Arduino Uno, then adds: Wi-Fi module, Bluetooth module, extra serial handling, level conversion, additional libraries. Eventually the circuit becomes more complicated than simply using an ESP32. If wireless connectivity is part of the project from day one, compare the total architecture rather than the controller price alone.

Powering an ESP32 from a weak USB supply. ESP32 Wi-Fi projects can behave strangely when the power source is poor. Symptoms can include: random resets, connection instability, resets when a relay activates, brownout messages, startup failures. Before rewriting the program, inspect the power system. Use: a suitable regulated supply, a good USB cable, correct grounding, proper relay/motor drivers, appropriate decoupling, and separate power paths for noisy loads where necessary. From our builds, one recurring issue is running relay loads and the ESP32 from the same weak 5 V supply. Relay switching can disturb the rail enough to trigger ESP32 brownouts. We normally separate the relay/load supply from the ESP32 supply and design the grounding/interface correctly.

Forgetting that ESP32 GPIO is 3.3 V. A module saying "5 V" on the product listing does not tell you everything about its I/O voltage. Check: module supply voltage, logic-high output voltage, logic input limits, whether level shifting already exists on the module. Do not blindly feed a 5 V signal into a 3.3 V ESP32 GPIO.

Assuming Raspberry Pi GPIO works like Arduino GPIO. A Raspberry Pi is running an operating system. That is excellent for high-level software but different from a bare-metal microcontroller executing a tight control loop. For time-sensitive control, PWM-heavy tasks or safety-critical switching, you may get a cleaner design by dividing the system: Raspberry Pi (AI / database / UI) — UART / MQTT / USB / network — ESP32 or Arduino (real-time sensors and actuators). This hybrid architecture is useful in advanced final-year projects because each controller does the work it is good at.

Choosing hardware before defining the project architecture. Do not begin with: "I bought a Raspberry Pi. What project can I make?" Begin with: "What information enters the system, what processing is required, what outputs must it control, and how does data move through the system?" Then select the hardware. A simple architecture sketch can save days of rework.

Example projects

The difference between the boards becomes clearer when you look at actual project types.

1. Face Recognition Door Lock using ESP32-CAM

Project: Face Recognition Door Lock using ESP32-CAM

This is a good example of why "camera project" does not automatically mean Raspberry Pi. An ESP32-CAM combines a microcontroller, Wi-Fi and camera support in a compact embedded platform. For a constrained door-access prototype where the camera is part of an embedded device rather than a full Linux computer-vision workstation, an ESP32-class solution can make sense. The important distinction is workload. If the project grows into heavier OpenCV processing, multiple camera streams, a substantial local recognition database or more demanding AI inference, Raspberry Pi becomes more attractive.

2. IoT EV Battery Management System using ESP32

Project: IoT EV Battery Management System using ESP32

This is the kind of application where ESP32 fits naturally. A battery-monitoring prototype may need to collect several measurements, perform embedded logic, present local status and transmit data to a remote monitoring interface. That combination—multi-sensor acquisition + embedded control + wireless connectivity—is exactly where ESP32 is strongest. A Raspberry Pi would normally add unnecessary complexity unless the same device also needed Linux applications, local database services or significantly heavier analytics. An Arduino Uno could handle basic sensor monitoring, but adding connectivity would require additional hardware.

3. Smart Face Recognition Attendance System

Project: Smart Face Recognition Attendance System

A full face-recognition attendance system represents the other end of the comparison. Once a project requires: camera capture, computer vision, face recognition, student records, attendance storage, possibly a web interface, and database operations, a Linux-capable Raspberry Pi becomes much easier to justify. That is more than simple sensor control. It is a computer application connected to physical hardware.

The controller decision should therefore follow the workload: For a simple automatic controller, start with Arduino Uno. For an IoT controller that reads sensors, controls hardware and communicates wirelessly, start with ESP32. For a system that needs Linux, cameras, databases, web applications or heavier AI/computer vision, start with Raspberry Pi. For most final-year IoT projects specifically, ESP32 is the best board to evaluate first—not because it is universally better, but because built-in Wi-Fi/Bluetooth, substantial microcontroller resources and low hardware complexity match the requirements of a large number of connected sensor-and-control projects.
