Pneumatics Basics for Student Engineering Projects

Most student builds reach for motors and servos first. Air is the quiet alternative: a 40mm-bore cylinder at 6 bar pushes with roughly 750N — far more force per rupee than any hobby servo — and pneumatic hardware is abundant in college labs, cheap on surplus sites, and fast to assemble. The price is that you must understand pressure, flow, and valve plumbing. This guide gives you exactly that: the components, the sizing maths, two circuits you can build this week, and how not to hurt yourself or your project.

What a pneumatic system is (and when to choose one)

A pneumatic system uses compressed air to do mechanical work. The loop is simple: compressor → air preparation (FRL) → valves → cylinders → exhaust. Air's advantages are speed (a cylinder strokes in well under a second), simplicity (pushing and pulling are just two ports), and inherent compliance (air is springy, so clamping won't crush a workpiece). Its disadvantages: position control is crude without extra hardware (air compresses, so mid-stroke stopping is spongy), the system is noisy on exhaust, and you always need a compressor or a filled tank nearby.

Rule of thumb: choose pneumatics when you need short, fast, repeatable linear motion with two defined positions — clamping, ejecting, lifting, sorting, stamping. Choose electric (servo/stepper) when you need precise intermediate positions, or hydraulics when the force is far beyond what air gives at 6 bar.

Pressure: units and reading a gauge

College labs work in bar almost exclusively. Know the conversions:

Unit	Value	Notes
1 bar	100 kPa	The lab standard
1 bar	≈ 14.5 psi	Gauge markings often show both
1 bar	≈ 1.02 kg/cm²	Older Indian equipment uses this
1 MPa	10 bar	Catalogue units for flow ratings

Pressure gauges on regulators read gauge pressure (relative to atmosphere), not absolute. A regulator set to 6 bar means 6 bar above ambient — this is the pressure that does the work, and the value you plug into force calculations.

Practical points: most compact cylinders are rated to 8–10 bar maximum; student circuits almost always run at 5–6 bar, which the FRL regulator dials down from the 8-bar compressor output. Never trust a gauge reading while adjusting — turn the regulator knob, then actuate the circuit and read the gauge under flow, because pressure rises slightly at rest and dips when air is moving.

Cylinders: single-acting vs double-acting

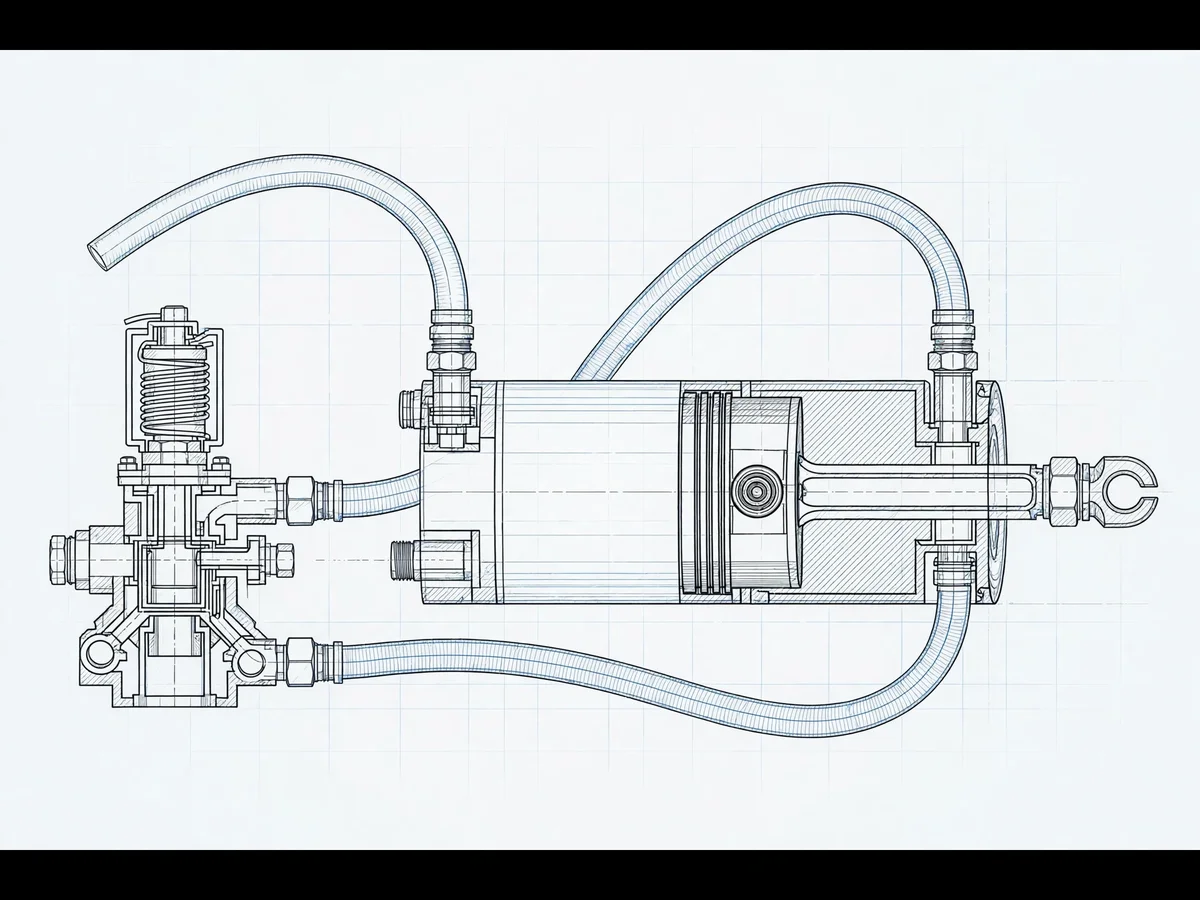

Double-acting cylinders have two ports (extend and retract) and are powered in both directions. Single-acting cylinders have one port plus a spring; air pushes one way, the spring returns the other. Roughly 80–90% of student projects use double-acting — the spring return is weak and the extra port costs nothing.

Key dimensions and terms:

Bore (mm): the piston diameter. Force scales with bore area (π/4 × d²), so a small bore increase gives a large force jump.
Stroke (mm): the travel distance. Longer stroke = more air per cycle = slower cycles on a small compressor.
Mounting: foot, flange, clevis, or trunnion mounts. For student builds, rear clevis + front rod eye (male thread) is the most forgiving arrangement for push-pull mechanisms.
Cushioning: adjustable end cushions slow the piston just before it slams the end cap. Use them whenever the payload exceeds a few hundred grams, or your mechanism will sound (and wear) like a jackhammer.
Magnetic piston (with reed-switch slots in the barrel): lets you mount position sensors without drilling the cylinder. Cheap and extremely useful for sequencing.

Standard student sizes: bore 25–63mm, stroke 50–200mm. Below 25mm the forces get toy-like; above 63mm the air consumption starts to demand a serious compressor.

Force sizing: F = P × A (with a worked example)

The push force of a cylinder is pressure times piston area. Because catalogue pressures are in bar and bores in mm, memorise the shortcut:

F (N) = P (bar) × A (mm²) / 10

Worked example — will a 40mm-bore cylinder at 6 bar lift a 50kg box vertically?

Area = π/4 × 40² ≈ 1257 mm²
Theoretical push force = 6 × 1257 / 10 ≈ 754 N
754 N ÷ 9.81 ≈ 77 kg of lift in ideal conditions

Now derate, honestly. Friction, seal drag, and pressure dips cost roughly 10–20%, and the return stroke is weaker because the piston rod steals area from the annulus side (for a 40mm bore with a 16mm rod, return force is about 84% of push). Apply a safety factor of 1.25–1.5 on the required force: required 50 kg × 1.3 = 65 kg → 638 N needed → the 754 N theoretical cylinder just qualifies. If it doesn't qualify, go up one bore size (50mm bore at 6 bar gives ≈ 1178 N) rather than cranking pressure above 6 bar — the next compressor pressure jump is rarely available.

A quick calculator for experimenting with sizes:

import math

bore_mm = 40       # cylinder bore in mm
rod_mm = 16        # piston rod diameter in mm
pressure_bar = 6   # regulated line pressure in bar

area = math.pi * bore_mm**2 / 4          # mm^2
rod_area = math.pi * rod_mm**2 / 4       # mm^2

push_N = pressure_bar * area / 10
pull_N = pressure_bar * (area - rod_area) / 10

print("Push force:", round(push_N), "N")
print("Pull (return) force:", round(pull_N), "N")

Air consumption: the number students forget

Force gets the attention; air consumption kills the build. Each cylinder stroke consumes bore-area × stroke × (pressure + 1 bar absolute) of free air. A 50mm bore, 100mm stroke cylinder at 6 bar uses roughly 1.4 litres of free air per full cycle. At 30 cycles/minute that is ~42 litres/minute — and a typical small college compressor delivers only 100–200 L/min for the whole bench.

This matters twice: (1) sizing the compressor or receiver tank — if total cycle demand exceeds supply, pressure sags mid-cycle and cylinders slow down (see troubleshooting); (2) exhaust noise — add a silencer/muffler (brass or plastic, a few rupees) on every exhaust port; unmuffled 5/2 valves at 6 bar are loud enough to annoy a whole lab.

Valves: 5/2 and 3/2, and how to actuate them

Directional control valves route air to one cylinder port while venting the other. The naming: 5/2 = 5 ports, 2 positions; 3/2 = 3 ports, 2 positions.

5/2 valve: the standard valve for double-acting cylinders. Ports: 1 = pressure in, 2 and 4 = to the cylinder, 3 and 5 = exhaust. One position extends, the other retracts.
3/2 valve: for single-acting cylinders (or as pilot/control valves). One position pressurises the line, the other vents it to atmosphere.

Actuation types, by usefulness in student projects:

Type	How it works	Best for
Solenoid 5/2 (24V DC)	Coil shifts the spool electrically	Any Arduino/microcontroller project — the default choice
Manual 5/2 (lever/pushbutton)	Hand-operated spool	Test rigs, demo panels, manual fixtures
Pneumatic pilot	Air signal shifts the spool	Cascaded circuits, no-electricity demos
Foot pedal 5/2	Foot-operated	Punch/stamp rigs where hands stay clear

For solenoid valves, 24V DC coils are the student standard (safer than 230V AC, directly switchable from a relay module). The valve draws ~2–5W; switch it with a relay or MOSFET, not directly from a microcontroller pin. Add a flyback diode across a DC coil, the same as with any relay.

Valve plumbing uses push-in (one-touch) fittings with polyurethane tubing — 6mm OD is the student-lab standard (4mm for small cylinders, 8mm for high-flow). Cut tubing square with a tube cutter, push fully home, and tug to confirm. A fitting that leaks at 6 bar hisses audibly; replace it rather than wrapping tape around it.

The FRL unit: filter, regulator, lubricator

Every pneumatic circuit starts with an FRL (filter–regulator–lubricator) — three devices, one assembly:

Filter: removes water condensate and particulates. Compressors squeeze water out of air; without a filter this water ends up inside your cylinders, rusting bores and washing away grease. Drain the bowl regularly — automatic drains exist, but a manual drain you actually empty beats an automatic one nobody checks.
Regulator: drops compressor pressure (typically 8 bar) to your working pressure (5–6 bar) and holds it steady as cylinders gulp air. This is where you set the system's working pressure.
Lubricator: mists a little oil into the air to keep seals happy. Modern student cylinders are pre-lubricated and usually want dry air — many manufacturers now recommend no lubricator, because oil mist gunks up with dust over time. Check your cylinder's catalogue: if it says pre-lubricated, fit the FRL without the lubricator element, or leave the lubricator bowl empty.

Mount the FRL at the air inlet, before the first valve, with the filter bowl pointing down. A gauge on the regulator shows working pressure; a second gauge after the FRL is handy for spotting pressure drop across dirty filter elements.

Compressors in college labs

You will meet three types:

Oil-free reciprocating (diaphragm/piston): the common small lab compressor. Quiet-ish, maintenance-free, delivers 50–200 L/min at up to 8 bar. Perfect for student cylinders; the duty cycle (often 50%) is the limit — it needs rest between long runs.
Oil-lubricated reciprocating: louder, needs oil checks, but runs continuously and delivers more air. The workshop-grade option.
Receiver tank setups: a compressor feeding a storage tank with a pressure switch (cut-in/cut-out). The tank smooths demand spikes — the single best upgrade when several cylinders run together.

Never exceed the tank's rated pressure (stamped on the plate), drain the tank's condensate daily, and keep the intake filter clean — a clogged intake is the most common reason a lab compressor "loses power".

Circuit 1: Speed control of a cylinder

Cylinder speed is set by how fast air can leave the cylinder, not how fast it enters. The standard method is meter-out: a flow-control valve (a one-way restrictor — free flow in, throttled flow out) on each cylinder port, throttling the exhaust.

Assembly: 5/2 valve → flow-control valves screwed into the cylinder ports (the restricted direction facing away from the cylinder, throttling exhaust) → cylinder. Open both restrictors fully, actuate the cylinder, then close each restrictor until the motion is smooth and controlled. Meter-out is preferred because throttling exhaust keeps the piston loaded against a cushion of air — meter-in (throttling the supply) lets the piston lurch and stick-slip, especially with varying loads.

Typical result: a 100mm stroke that banged across in 0.2s becomes a smooth 1–2s stroke you can actually use in a mechanism. Always tune speed under the real load — an unloaded cylinder tuned to "slow" will crawl once loaded.

Circuit 2: Cylinder sequencing basics

Two cylinders that must fire in order — A extends, then B extends, then both retract — need feedback, not timing guesses. The student-friendly method uses magnetic reed switches on the cylinder barrels:

Cylinder A extends (5/2 valve V_A energised).
Reed switch at A's extended position fires → controller energises 5/2 valve V_B → cylinder B extends.
Reed switch at B's extended position fires → optional dwell → both valves de-energise → both retract.
Reed switches at retracted positions confirm homing before the next cycle.

Reed switches are just magnetically operated contacts — wire them as digital inputs with a pull-up, debounce in software, and your "sequencing circuit" is a small state machine on an Arduino. For fully pneumatic sequencing (no electronics), cascade 3/2 roller-lever valves as limit valves — a classic technique, but start with reed switches; they are cheaper to debug.

Golden rule: sequence on position feedback, never on timers. Timer-based sequencing drifts the moment pressure or load changes, and the failure mode is two mechanisms colliding.

Safety: what actually goes wrong

Pneumatics at 6 bar is low-risk compared with hydraulics, but it has real failure modes students must respect:

Whipping hoses: a hose that pops off a fitting at 6 bar thrashes violently. Prevent it: push-in fittings fully seated, tubing cut square, and no improvised barb-and-tape joints on pressure lines.
Stored pressure: a charged receiver tank or a trapped volume between a valve and cylinder holds pressure after the compressor is off. Always include a dump/vent valve (a 3/2 manual valve upstream of the circuit) and vent the system before disconnecting anything. Bleed pressure with the circuit's own exhaust before loosening fittings — cracking a fitting under 6 bar launches it.
Unexpected actuation: cylinders move instantly when a valve shifts. During wiring and debugging, disconnect the air supply (or at least vent it) before touching the mechanism. Keep fingers clear of pinch points — a 40mm cylinder closing a gripper does not care about your thumb.
Burst lines: old, sun-baked, or nicked polyurethane tubing can split. Inspect tubing before each demo day; replace anything discoloured or scored. Keep tubing runs short and routed away from sharp edges and heat.
Eye protection when pressurising a new circuit for the first time. Fittings seated wrongly pop off exactly once — at the worst moment.

Troubleshooting: the usual suspects

Slow or weak cylinder. Check in order: (1) regulator set correctly and gauge read under flow; (2) FRL filter element clogged (pressure gauge after the FRL reads low); (3) flow-control valves over-throttled; (4) kinked or undersized tubing starving one port; (5) bore too small for the load (recalculate F = P × A); (6) compressor duty cycle exceeded — the tank pressure has sagged below the regulator's set point.

Hissing leaks. Soapy water in a spray bottle finds every leak in seconds — bubbles form at the source. The usual culprits: tubing not pushed fully into fittings, scored tubing ends, loose silencer threads, and worn cylinder rod seals (oil mist on the rod is the tell). Fix fittings and tubing; a leaking rod seal usually means a seal kit or a replacement cylinder.

Pressure drops during cycling. Demand exceeds supply: add a receiver tank, reduce cycle rate, shorten strokes, or upsize the compressor. Also check the regulator's flow rating — an undersized regulator chokes flow even with a big compressor behind it.

Cylinder creeps or drifts when it should hold. Internal seal bypass (worn piston seal letting air past). Also check that both 5/2 valve exhausts are venting freely — a blocked silencer pressurises the "exhaust" side.

Valve chatters or won't shift. Solenoid voltage too low (measure at the coil under load — long thin wires drop volts), pilot air starved, or the manual override button left half-pressed. For pneumatic-pilot valves, pilot pressure must reach the catalogue minimum (often 2–3 bar).

FAQ

Do I need an FRL for a small demo?
At minimum, a filter and regulator. A filter protects the cylinder from compressor water, and a regulator gives you repeatable force and speed. The lubricator is optional for pre-lubricated cylinders — check the catalogue.

Can I run pneumatics without a compressor, from a filled tank?
Yes, for demos: a charged portable tank or even a large-volume reservoir works, but calculate total air demand first (bore × stroke × cycles × absolute pressure ratio) and confirm the tank holds enough for your demo duration. Bring the compressor anyway for multi-hour exhibition days.

5/2 single-solenoid or double-solenoid?
Single-solenoid valves spring-return to a default position when power is lost — safer for most student mechanisms (the cylinder retracts on power failure). Double-solenoid valves stay in their last position on power loss, which is only what you want when a mid-stroke freeze is the safe state. Default to single-solenoid.

How do I stop a cylinder mid-stroke?
Not cleanly with basic valves — air compresses, so a closed-centre 5/3 valve holds position only approximately and drifts under load. If your mechanism needs real intermediate positions, use electric actuation instead. This is pneumatics' honest limitation.

Are pneumatic components expensive for a student budget?
Modestly: a 32–40mm cylinder, a 5/2 solenoid valve, an FRL and fittings typically cost a few thousand rupees total from industrial suppliers or surplus sellers. The compressor is the expensive part — use the college lab's rather than buying one.

Can I mix brands of cylinders, valves and fittings?
Yes — pneumatic interfaces are standardised (G/BSP threads, standard tube ODs, 24V DC coils). Just match thread sizes (G1/4 and G1/8 are the common student sizes) and pressure ratings.

Limitations

Crude positioning: two end positions are precise; anything mid-stroke is approximate and drifts under varying load. Don't design a pick-and-place that needs ±1mm mid-travel accuracy on air alone.
Force ceiling: at 6 bar, forces beyond ~2kN need impractically large bores and huge air volumes — that territory belongs to hydraulics.
Noise and air hunger: exhaust is loud without silencers, and high cycle rates demand serious compressor capacity. Exhibition-hall demos should budget for both.
Speed varies with load and pressure: unlike a stepper motor, cylinder timing is not inherently repeatable — any sequence relying on precise timing needs position feedback.
Temperature sensitivity: cold air is denser and seals stiffen in cold; hot environments soften tubing. Lab conditions are fine; outdoor winter demos need margin.
Maintenance: filters need draining, tubing ages, seals wear. A pneumatic project handed over without a maintenance note degrades within a year — document the FRL drain schedule and the regulator setting in your report.
