Hospitals, data centres and high-rise lifts don't wait for someone to throw a lever when the mains fail. An Automatic Transfer Switch (ATS) is the panel that watches the utility supply and moves the load to a standby generator — and back — without human intervention. This guide explains what's inside the panel, how the sensing and transfer sequence works, the difference between open and closed transition, and how to size one, with a worked calculation.

The problem it solves

Mains power fails. When it does, critical loads (lifts, fire pumps, servers, medical equipment) need an alternate source — usually a standby diesel generator — within seconds to minutes. A manual changeover switch does this job, but it needs a person present, alert, and willing to touch live equipment in a blackout.

The ATS automates the whole sequence: detect the failure, confirm it's real and not a transient dip, start the generator, wait for it to stabilize, disconnect the mains, connect the generator, and — when the utility returns — transfer back in the right order and shut the generator down after a cool-down. Done properly, a typical standby cycle completes in under a minute.

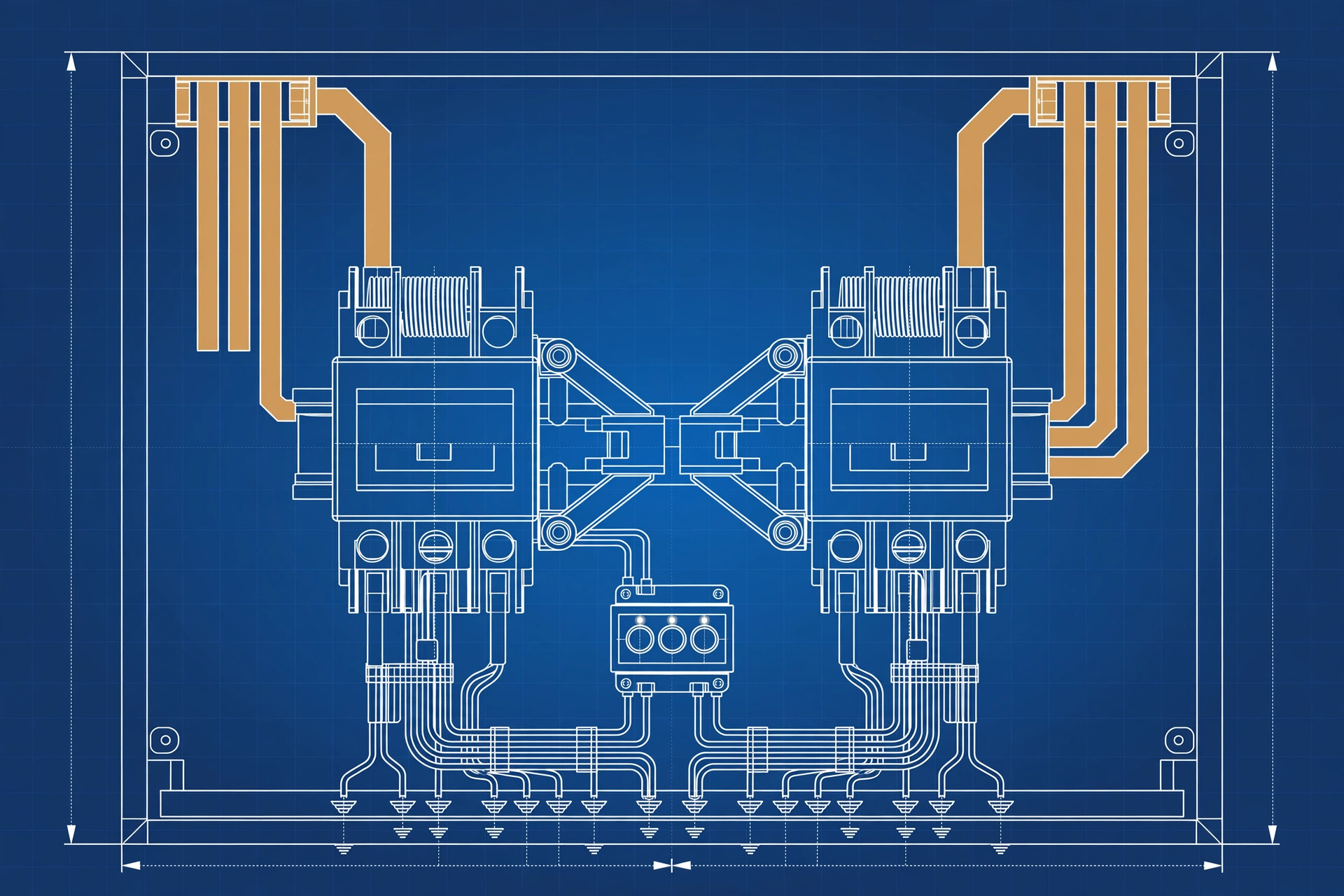

What's inside the ATS panel

Component	What it does	Selection notes
Two switching devices	Connect the load bus to source 1 (mains) or source 2 (generator)	Contactor pair with mechanical interlock, or a purpose-built changeover switch/motorized MCCB pair
Mechanical interlock	Physically prevents both devices closing at once	The single most important safety part of the panel — back-to-back contactors without it are a parallel-fault hazard
ATS controller	Senses voltage on both sources, runs the timing logic	Microprocessor module with adjustable pick-up/drop-out thresholds and timers
Source incomers	Feed utility and generator cables into the panel	MCBs/MCCBs rated for the respective cable and source capacity
Generator start/stop interface	Crank-and-rest control of the standby genset	Typically a dry-contact relay output (volt-free) plus a common-alarm input
Sensing PTs/CTs	Measure voltage (both sources), sometimes current	Controller reads source voltage through fuses; CTs used for overload/load-shedding logic on larger units
Auxiliary relays and timers	Interposing, signal delays, alarm outputs	Keep the control wiring on its own fused circuit

Note: Many beginners think the ATS powers the generator. It doesn't — it starts the generator's own starter via a signal contact and switches the load between two already-available sources. The generator is a separate, self-contained machine.

The transfer sequence, step by step

1. Mains fails. The controller watches utility voltage continuously — typically all three phases. When voltage drops below the drop-out setting (commonly around 80–90% of nominal, configurable), the timing sequence starts.
2. Time delay to confirm (TDES). A short delay — a few seconds — confirms the outage is real and not a switching transient or motor-starting dip. Only after this does the controller command the generator to start.
3. Generator starts and stabilizes. The genset cranks, reaches rated voltage and frequency. A second delay (voltage-ready / warm-up time) lets it stabilize before it takes any load — cold-loading a diesel set shortens its life and risks collapse on large motor starts.
4. Transfer. The controller opens the mains contactor and closes the generator contactor (open-transition: the load is briefly dead; see below for the closed-transition variant). The load is now on standby power.
5. Utility returns. The controller watches the mains continuously. When voltage is healthy again for a sustained retransfer delay (typically 1–10 minutes, to be sure the grid is stable), it transfers the load back to the mains.
6. Cool-down and shutdown. The generator runs unloaded for a cool-down period (often 5–15 minutes), then stops. This is standard practice — shutting a diesel set down hot invites turbo and cylinder problems.

The settings (delays, voltage thresholds) live in the controller's configuration menu. In projects, record them in the report — an ATS that "works" but transfers on every brownout is worse than useless.

Open vs closed transition

Open transition (break-before-make): the mains contactor opens first, then the generator contactor closes. The load sees a short interruption — seconds. This is the standard, economical choice for standby service.

Closed transition (make-before-break): the generator contactor closes while the mains is still connected — but only after the controller synchronizes the generator to the mains (matching voltage, frequency and phase). The load sees no interruption. This is how automatic systems return to the utility without a blink, and it's also the basis of peak-shaving and demand-management schemes.

Warning: Closed transition requires a synchronizing controller and both sources to be present and in phase before paralleling. An improperly configured make-before-break transfer parallels two unsynchronized sources — the fault current can destroy the switchgear and the generator. If your project uses open transition, the mechanical interlock is the non-negotiable safeguard.

ATS vs MTS: a Manual Transfer Switch is the same hardware concept without the controller — someone moves the lever. Many installations combine both: an ATS panel with a manual bypass for maintenance.

Sizing the ATS: the worked calculation

Size the ATS for the total connected emergency load, not the generator's rating. The switching devices, cables and incomer protection all follow the load current.

I = P / (√3 × V × pf)

Worked example: A commercial building's emergency bus carries 100 kVA of load at 415 V, power factor 0.8 lagging.

• Full-load current: I = 100000 / (1.732 × 415 × 0.8) ≈ 174 A
• Select the next standard changeover rating: 200 A (verify against the manufacturer's table — standard ATS frames run 100 / 160 / 250 / 400 / 630 A in this range)
• Cable and incomer MCCB: size for the 200 A device rating, apply derating for grouping/ambient, and confirm the generator breaker coordinates with it
• Controller sensing range: 415 V nominal, set drop-out ≈ 350 V (85%), pick-up ≈ 395 V (95%) — record your values

Motor loads matter: an ATS that transfers a 75 kW DOL-started motor sees starting current of several times full-load current at retransfer. If your emergency bus has large motors, check the switching device's motor-duty rating, not just its resistive-current rating, and consider staggering motor restarts after transfer rather than hitting the generator with everything at once.

Commissioning checklist

• Mechanical interlock verified by hand (with the panel de-energized): one contactor can never close while the other is closed
• Both source incomers phased correctly — phase sequence on the generator matches the mains (a reversed generator phase sequence spins three-phase motors backwards)
• Controller voltage thresholds and timers set and recorded
• Simulated outage test: kill the mains, confirm generator start, transfer, retransfer and cool-down timings
• Transfer time measured and within the spec for the critical loads (elevator, fire pump, UPS make-up)
• Alarm contacts and any remote monitoring wired and tested
• Battery and charger for the generator's starting circuit healthy — most ATS "failures" are actually flat genset batteries

Safety: An ATS panel has TWO live sources by design. The mains incomer and the generator incomer can both be energized even when the load bus is dead — lock-out/tag-out must isolate both sources before any work inside the panel. Never defeat the mechanical interlock to "test faster."

Failure modes (and how to answer them in the viva)

1. Generator doesn't start on outage — flat battery, empty fuel tank, failed starter relay. Check the crank battery first; it's the most common real-world cause.
2. Chattering during brownout — drop-out threshold set too close to normal operating voltage, or TDES set to zero. The fix is in the controller settings, not the contactors.
3. Generator runs but never takes the load — transfer contactor coil circuit fault, blown sensing fuse, or the controller never saw "generator ready."
4. Phase-reversal on retransfer — generator phases land in a different sequence than the mains; motors reverse direction. Verify with a phase-rotation meter at commissioning.
5. Welded contacts after a fault — switching device underrated for the fault level, or interlock defeated during maintenance. This is why the interrupting rating matters, not just the current rating.

FAQ

How fast does a typical ATS transfer?
Contactor-based ATS panels transfer in a fraction of a second once the sequence triggers, but the total standby time is dominated by generator start-up and stabilization — typically 10–30 seconds for a small diesel set. True seamless service needs UPS or closed-transition transfer.

Can an ATS work with solar or a second generator as the standby source?
Yes — the "standby source" just needs to be a dispatchable AC source the controller can start and synchronize with. Solar alone is not dispatchable, so it pairs with storage or a genset in practice.

Why not just parallel the generator with the mains all the time?
Continuous paralleling is a different application (peak shaving / co-generation) with its own protection, metering and utility-agreement requirements. An ATS's job is emergency standby, and the interlock exists precisely to prevent unplanned paralleling.

What's the difference between the ATS controller and a PLC?
A dedicated ATS controller is a purpose-built unit with pre-engineered sensing, timing and interlock logic; a PLC-based scheme gives flexibility (load shedding, sequenced motor restart, SCADA) at the cost of design and validation effort. Both appear in industry.

Does the ATS protect against faults?
No — the ATS is a transfer device, not a protective device. Fault protection comes from the MCCBs/MCBs on each incomer and the generator's own protection. Size and coordinate them separately.

Where to go from here

• Contactor vs Relay: Which to Use and When — the switching devices at the heart of most ATS panels.
• DOL vs Star-Delta Starter — contactor duty and motor starting current, directly relevant to ATS sizing with motor loads.
• Three-Phase Wiring Basics — the supply system the ATS switches between.
• Solar Inverter Types Compared — alternative standby sources and their transfer characteristics.
