Node-RED IoT Dashboard for Sensor Networks

IoT coursework usually teaches the pieces in isolation: one lab flashes an ESP32, another plots a chart, a third mentions MQTT. When students then try to build a real sensor network, the pieces don't meet — readings stay trapped in serial monitors, there is no shared dashboard, no alerting, and no history to analyze. Cloud platforms solve this but add accounts, subscriptions and an internet dependency that complicates college demos. Node-RED, the open-source flow-based programming tool from the OpenJS Foundation, offers a middle path: a visual wiring canvas where MQTT messages flow into processing nodes, dashboard widgets, alert nodes and log files, all running on a local Raspberry Pi. This project builds that complete stack — sensor nodes, broker, flows, dashboard, alerts and historian — so the student demonstrates a genuine end-to-end IoT system, not a single sensor blinking on a breadboard.

1. Each ESP32 sensor node reads its sensors (DHT22, MQ-series gas, BH1750 light, capacitive soil moisture) and publishes a JSON payload to its MQTT topic every configured interval.
2. The Eclipse Mosquitto broker on the Raspberry Pi receives the messages over Wi-Fi.
3. Node-RED subscribes to the topic tree; switch and function nodes route readings by node and sensor type.
4. Dashboard nodes render gauges, charts and status tiles in the browser at the Pi's address.
5. Threshold function nodes evaluate limits; on violation, email and Telegram nodes send alerts with the node ID, value and timestamp.
6. A file node appends every reading to dated CSV logs; chart nodes read them back for historical views.

Tech stack:

• Node-RED on Node.js (flow-based integration runtime)
• Eclipse Mosquitto MQTT broker (MQTT 3.1.1)
• node-red-dashboard widgets (gauges, charts, status tiles)
• ESP32-WROOM-32 sensor nodes (Arduino framework, template firmware)
• DHT22 temperature/humidity, MQ-series gas, BH1750 light sensors
• CSV historian (InfluxDB as documented option)
• Email + Telegram bot alert nodes
• Raspberry Pi 4 (deployment host)

• [Flow-based integration] Sensors, processing, dashboard and alerts are wired as Node-RED flows on a visual canvas — changes deploy in seconds with no firmware recompile for the integration logic.
• [MQTT sensor network] A template ESP32 firmware publishes JSON readings (temperature, humidity, gas, light) to a topic tree; extra nodes join by flashing the same template with a new node ID.

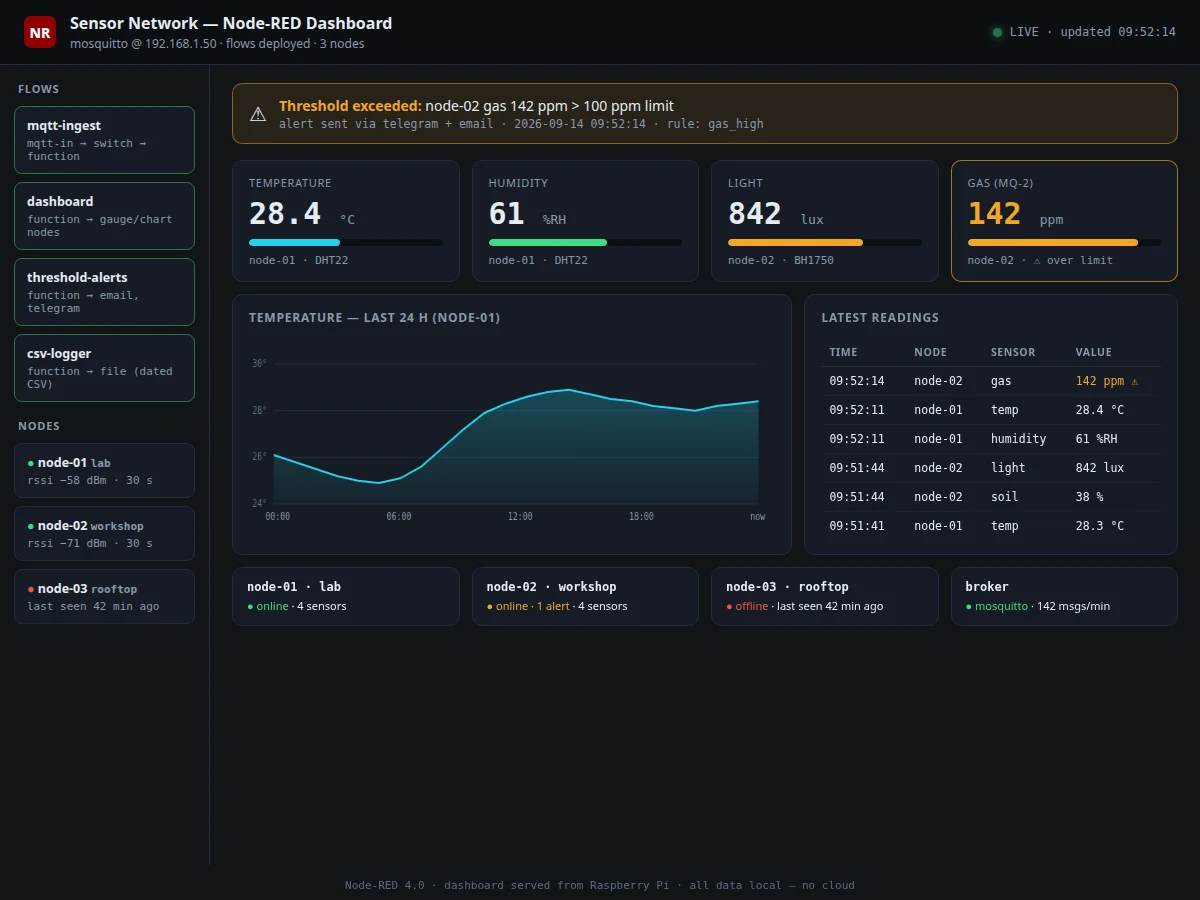

• [Live dashboard] node-red-dashboard gauges, time-series charts, status tiles and a site-layout view update as readings arrive.
• [Threshold alerting] Function nodes compare readings against configurable limits and fire email and Telegram-bot alerts on violations and recovery.
• [Historical logging] Every reading is appended to dated CSV logs (InfluxDB as a documented option), and chart nodes replay history for any time window.
• [Configurable sampling] Per-node reporting intervals are set through retained MQTT configuration topics — no reflashing to change a sample rate.
• [Fully local deployment] Mosquitto and Node-RED run on a Raspberry Pi or laptop; the system works with zero internet connectivity.

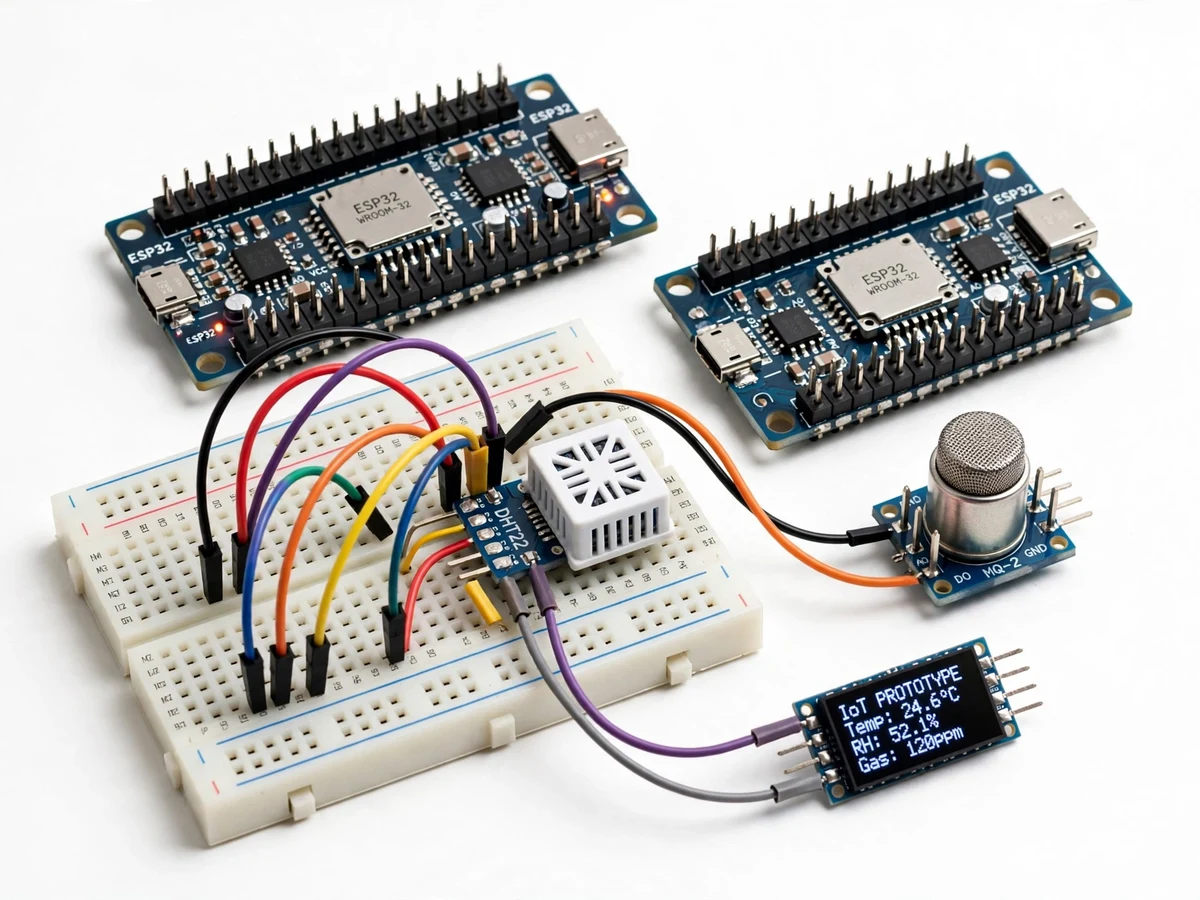

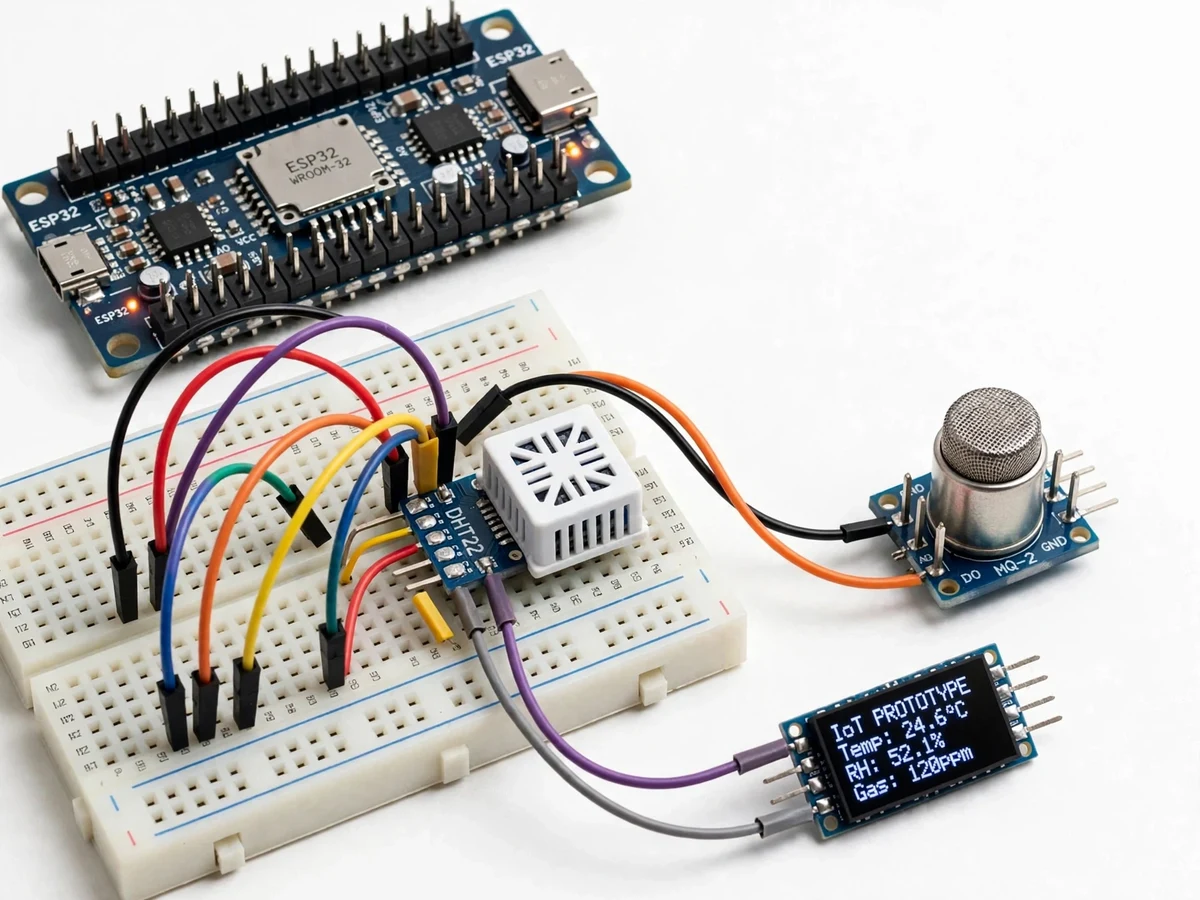

• Two assembled ESP32 sensor node prototypes (sensors wired and tested)
• Node-RED flow exports (ingestion, dashboard, alerting, logging)
• Mosquitto + Node-RED setup guide for Raspberry Pi
• Template ESP32 firmware with node-ID configuration
• Project abstract PDF
• Project report (architecture, MQTT design, flow documentation, test results)
• PPT presentation and viva Q&A document

• The Node-RED dashboard is a local web UI for demos, not a hardened multi-tenant cloud product; behavior under many concurrent users is untested.
• The single Mosquitto broker on the Pi is a single point of failure; the base build has no redundancy or failover.
• MQ-series gas sensors need burn-in time and give indicative readings, not calibrated gas concentrations.
• Node placement is limited by Wi-Fi coverage; dead zones need an access point, not a code change.
• Default flows ship without authentication; login and TLS hardening are documented as an optional step, not included in the base build.
