Home Wiring Fault Simulator Training Board

The fastest way to learn fault diagnosis is to break circuits and find the fault — but real home wiring runs at 230 V mains, where a trainee's mistake is dangerous. Electrical students therefore usually meet faults only in textbooks: open neutral, line-to-neutral short, earth fault, overloaded circuit. This training board recreates those exact scenarios at safe extra-low voltage (24 V / 12 V DC), so the diagnosis is completely real while the mains danger is removed. Four common home-wiring loops are built on the board with miniature MCBs on a DIN rail, incandescent lamp loads, and color-coded test points. The instructor injects any combination of four faults through hidden rocker switches under the board cover, and the trainee works like a real electrician: dead-test with continuity checks, live-test with a multimeter at the test points, and reason out which protective device should have operated. Because everything is visible, touchable, and safe, it is a lab instrument colleges can actually put in front of students.

1. The 24 V / 12 V ELV adapter powers four independent home-wiring loops on the board, each protected by its own C6 miniature MCB and feeding lamp loads.
2. The instructor sets a fault exercise on the hidden switches — for example, injecting an open neutral on the lighting loop.
3. The trainee begins with dead tests: continuity and insulation-path checks across the loops with the multimeter, recording readings on the fault log sheet.
4. Next come live tests: the trainee measures voltages at the color-coded banana test points and compares them against the healthy-circuit reference values in the trainer's chart.
5. Each fault produces a distinct signature — an open neutral leaves the lamp dark with voltage present on both lines; a short trips the MCB instantly; an earth fault diverts current through the earth loop; overload heats the symptom set (dim lamp, slow MCB response).
6. The trainee identifies the fault, explains the reasoning step by step, and the instructor reveals the injected switches to verify the diagnosis.
7. Multiple switches can be combined for advanced exercises (e.g. short plus open earth), forcing the trainee to separate overlapping symptoms.

Tech stack:

• Miniature MCBs (C6) on 35 mm DIN rail
• 24 V / 12 V DC ELV power adapter
• 12 V incandescent lamp loads
• Rocker-type fault-injection switches
• Banana-jack test points
• 1 sq mm FRLS PVC copper wiring
• Digital multimeter (DT830D class)
• Plywood trainer board with mounting hardware

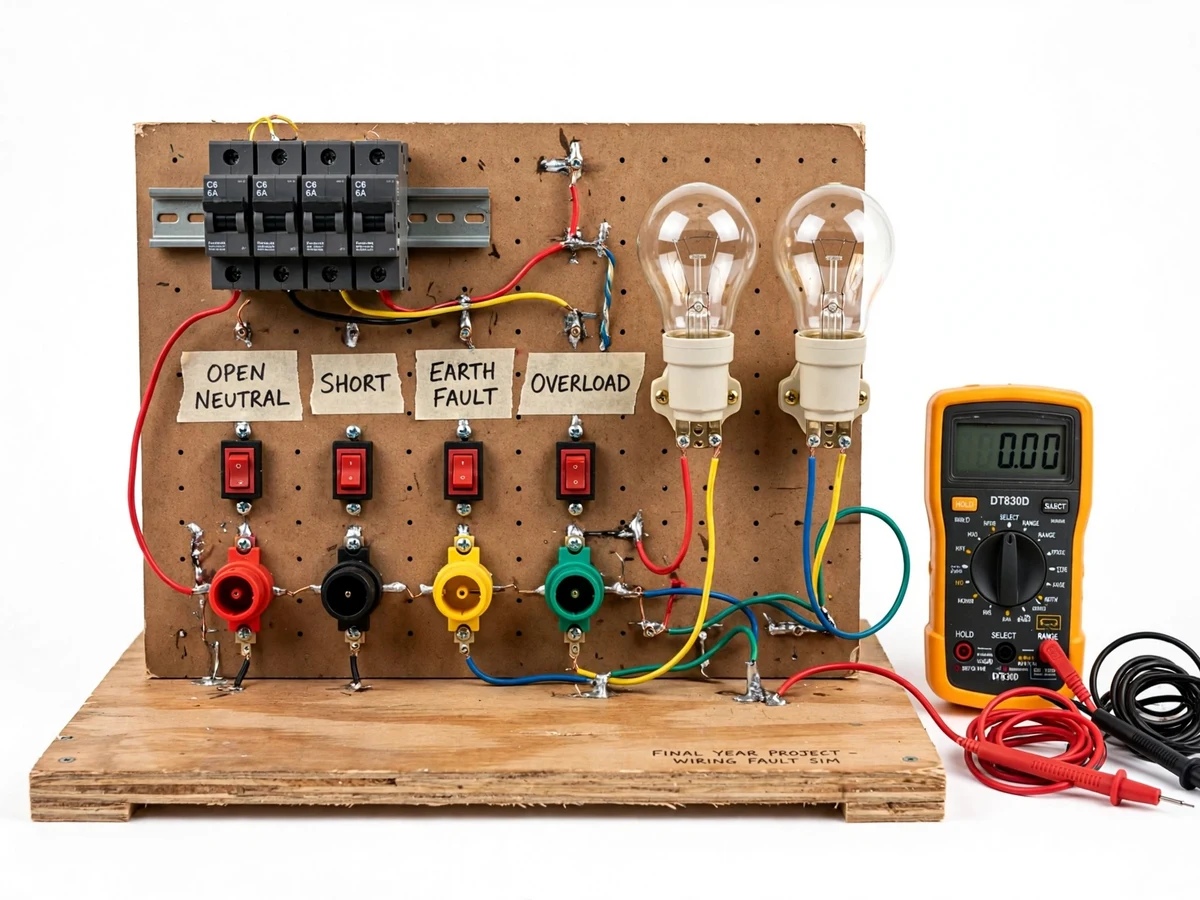

• [Hidden fault-injection switches] Four instructor-only rocker switches (open neutral, short, earth fault, overload) mounted out of the trainee's sight, injectable individually or in combination for multi-fault exercises.
• [Real miniature MCBs] Four C6 miniature circuit breakers on a standard 35 mm DIN rail protect the four loops, so trainees see genuine overcurrent devices trip — and learn which faults a breaker catches and which it does not.
• [Lamp loads] Two 12 V incandescent lamp holders act as realistic loads: a lamp that stays dark, glows dim, or behaves oddly is the trainee's first visible symptom, exactly like in a real home.
• [Color-coded test points] Banana-jack test points (red/black/yellow/green) at every loop node let trainees measure voltages and check continuity without probing live terminals directly.
• [Safe extra-low-voltage design] The entire board runs on 24 V / 12 V DC from an external ELV adapter — the same wiring practices as a real installation, at a voltage students can safely touch during diagnosis.
• [Trainer's fault chart] A fault-symptom matrix card lists each injected fault with its expected symptoms and correct test procedure, so instructors can set exercises and check answers consistently.
• [True-to-life wiring] Loops are wired in 1 sq mm FRLS PVC copper conductor with screwed terminals, laid out like real home circuits (lighting loop, socket radial, earth loop), not breadboard toys.

• Assembled and bench-checked wiring fault simulator training board
• 4 × C6 miniature MCBs on DIN rail, pre-mounted
• 2 × 12 V incandescent lamp loads with holders
• Digital multimeter with test leads
• Trainer's fault-symptom chart with healthy-circuit reference values
• Trainee fault-log worksheets (print-ready)
• Circuit diagram and wiring layout drawing
• Project report PDF (background, circuit design, fault theory, build procedure, test exercises)
• PPT presentation for final review
• Viva Q&A preparation document (fault types, protection devices, testing methods)

• This is an extra-low-voltage demonstrator (24 V / 12 V DC). It is NOT rated for 230 V mains and must NEVER be connected to a mains supply — doing so would be dangerous and would destroy the board.
• Faults are instructor-injected electrical faults only; the board does not simulate insulation ageing, loose-connection heating, or cable damage in concealed wiring.
• MCB trip timing at 24 V DC is approximate — DC arcing differs from AC mains behaviour, so the board demonstrates that a breaker operates, not its exact rated trip curve.
• The 12 V incandescent lamps are resistive loads; they do not reproduce the inrush current of real LED drivers or the behavior of motor loads.
• Diagnosis exercises cover single-loop circuits; the board does not teach distribution-board sizing, earthing-system design, or energy metering.
• No fault-location measurement (distance-to-fault) is performed — this is a training board for diagnosis, not a field cable-fault instrument.
