Three-Phase Wiring Basics for Students

Three-phase power runs the workshops, the motors, and the building supplies that single-phase wall sockets merely borrow from. Yet most students meet it first as a confusing trio of waveforms and a distribution board they are told not to touch. This guide builds the subject from the ground up: what three-phase actually is, star and delta connections with the voltage and current relationships worked through, neutral sizing and earthing, and the safety rules that keep a student alive around a 415 V board. Everything here is standard 50 Hz Indian practice (230 V phase-to-neutral, 400/415 V line-to-line) unless stated otherwise.

What "three-phase" actually means

A three-phase supply is three AC voltages of the same frequency and magnitude, spaced 120° apart in phase. Three coils in a generator (or transformer secondary), physically rotated 120° from each other, produce them. The payoff is fundamental:

Constant instantaneous power. While a single-phase supply pulses at twice the line frequency (power drops to zero 100 times per second on 50 Hz), the sum of three phases 120° apart is constant. Motors run smoother, with no torque pulsation at standstill issues — which is why anything above about 2–3 kW is almost always three-phase.
Less copper for the same power. Three-phase transmission needs about 75% of the conductor material of an equivalent single-phase system. This is the economic reason the grid is three-phase.
Two voltages from one system. Line-to-neutral gives 230 V for lighting and sockets; line-to-line gives 400 V for motors and heavy loads — one supply serving both.

Draw the three phasors head-to-tail: R at 0°, Y at −120°, B at +120° (the Indian R-Y-B colour convention; IEC uses brown/black/grey for phases with blue neutral, and many imported panels follow that — always verify by measurement, never by colour alone). Their vector sum is zero at every instant. That zero-sum is the entire reason the neutral conductor can be smaller than the phases in balanced conditions — and the reason it sometimes cannot, as we will see.

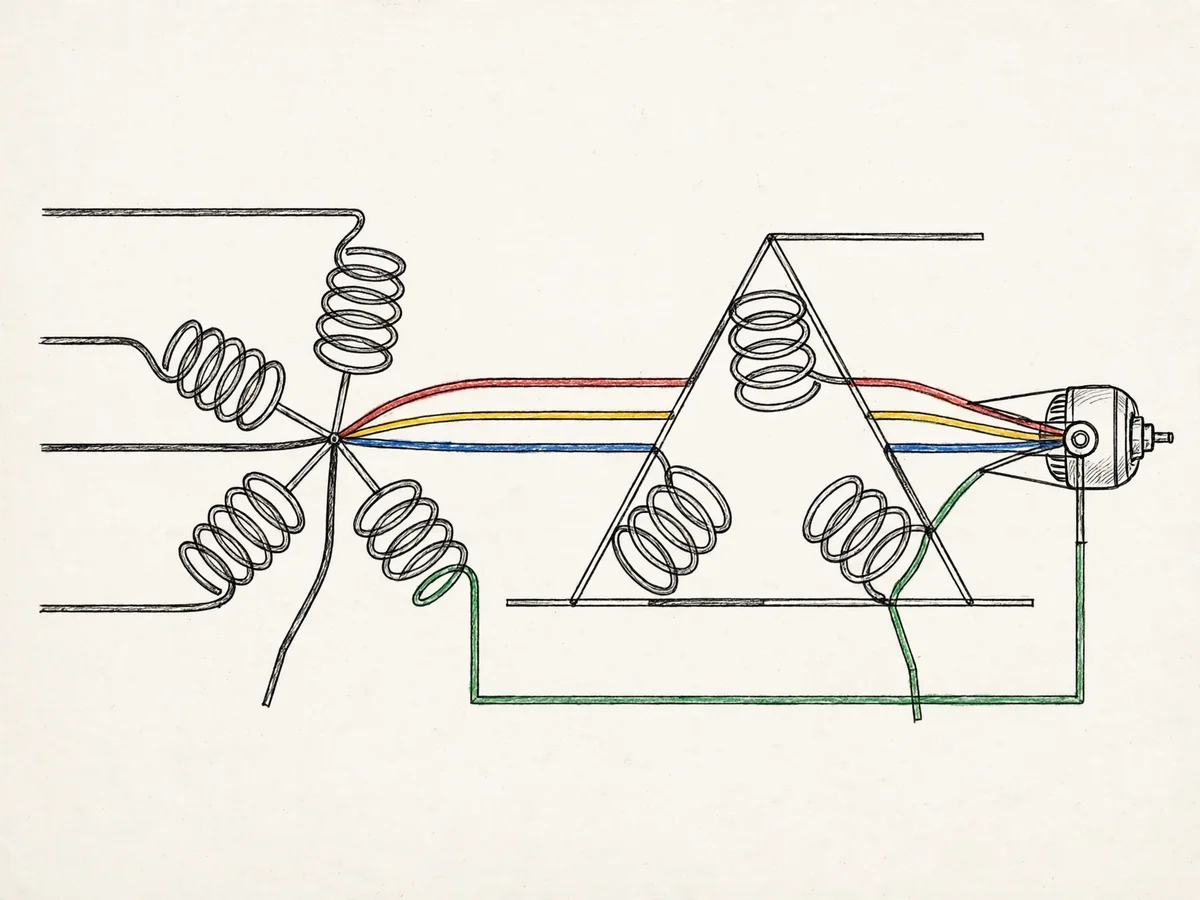

Star (wye) vs delta: the two ways to connect three coils

Every three-phase winding — generator, transformer, motor — is connected in one of two topologies.

Star (Y): one end of each coil joined at a common neutral point (N); the other three ends are the lines L1, L2, L3. Relationships:

Line voltage VL = √3 × phase voltage Vph ≈ 1.732 × 230 V ≈ 400 V
Line current IL = phase current Iph (the same current flows through coil and line)

Delta (Δ): coils connected end-to-end in a triangle; the three corners are the lines. There is no neutral point. Relationships:

Line voltage VL = phase voltage Vph (each coil sees the full line voltage)
Line current IL = √3 × phase current Iph

The √3 appears because the phasors are 120° apart: the line-to-line voltage is the vector difference of two phase voltages, and |V∠0° − V∠−120°| = √3 × V. Memorize the pattern rather than the derivation: star divides voltage by √3 at the coil, delta divides current by √3 at the line.

	Star (Y)	Delta (Δ)
Coil voltage	VL / √3 (≈230 V on a 400 V system)	VL (full 400 V)
Line current	= coil current	√3 × coil current
Neutral	Yes — the star point	No neutral point exists
Where you meet it	Supply transformer secondary, distribution	Motor windings, transformer primaries

Which one, where — the decision table

Situation	Connection	Why
Distribution transformer secondary feeding a building	Star	Provides the neutral for 230 V single-phase loads
Motor nameplate "Δ 400 V / Y 690 V"	Delta on a 400 V supply	Each winding is rated 400 V; star would under-volt it to 230 V
Motor nameplate "Δ 230 V / Y 400 V"	Star on a 400 V supply (or delta on 230 V)	Each winding rated 230 V; delta on 400 V would over-volt and burn it
Star-delta starter	Starts in star, runs in delta	Starting in star applies 230 V to 400 V-rated windings: starting current and torque both drop to ~1/3, then delta gives full torque

The nameplate rule that prevents burnt motors: a dual-voltage motor's lower voltage is its delta voltage. Match the connection to the supply so that the voltage across each winding equals the winding's rating. A "Δ 400 V" motor wired in star on 400 V runs at 58% voltage — it will stall under load, draw locked-rotor current, and trip (or burn). A "Y 400 V" motor wired in delta on 400 V sees 400 V on 230 V windings — insulation failure, quickly.

The neutral: the most misunderstood conductor in the building

In a perfectly balanced star system, the three phase currents sum to zero and the neutral carries nothing. Real installations are never balanced: single-phase loads (lights, sockets, computers) distribute unevenly across phases, so the neutral carries the imbalance current. Sizing rules that follow from this:

Balanced or mildly unbalanced linear loads: neutral may be reduced (often half the phase size) per design standards — but only with engineering justification.
Unbalanced single-phase-heavy installations: neutral = phase size. Student demo boards with lots of single-phase socket circuits fall here.
Harmonic-rich loads (computers, LED drivers, UPS, VFDs): triple-n harmonics (3rd, 9th, 15th…) are in phase on all three phases — they do not cancel in the neutral, they add. A neutral serving switch-mode loads can carry more than phase current. This is why modern guidance sizes neutrals at full or even double phase size in IT-heavy installations, and why a power quality analyzer logging THD is the instrument that tells you whether your neutral is in trouble.

Three neutral faults every student should know by symptom:

Symptom	Likely cause	What to check
230 V loads seeing ~300+ V, lamps blowing across the building	Open/broken neutral on the supply side — the star point floats and phases divide 400 V by load impedance	De-energize; check neutral continuity from board to transformer; this fault destroys equipment fast
Neutral conductor running hot with modest phase currents	Triple-n harmonics adding in the neutral	Clamp-meter the neutral vs phases; log THD per phase
Tingle from equipment frames, RCD tripping randomly	Neutral-earth fault or swapped N/PE downstream	Insulation test N–E; verify no N–E bond beyond the single main bonding point

The single most important wiring rule in this guide: in a TN system there is exactly ONE neutral-to-earth bond, at the supply origin. A second N–E bond downstream creates parallel earth paths, circulating currents, and RCDs that trip for no apparent reason. When fault-finding a tripping RCD, the accidental second N–E link is suspect number one.

Earthing: TN-S, TN-C-S, and what the letters mean

The first letter is the supply earthing: T = transformer neutral earthed directly (terra). The second letter is the installation's exposed-metal earthing: T = earthed to its own electrode (TT), N = earthed to the supply neutral (TN). The TN subdivisions:

TN-S: separate neutral (N) and protective earth (PE) throughout — five wires (L1, L2, L3, N, PE). The cleanest arrangement; standard for new installations.
TN-C-S: combined PEN conductor from the transformer, split into N and PE at the building entry. Four wires become five at the split point. The split must happen before any RCD, and the PEN must never be broken by a switch or fuse.
TT: installation earths to its own electrode, independent of the supply. Common in rural/outlying supplies. Fault loop impedance is high, so RCDs (not overcurrent devices) are the primary shock protection — and the earth electrode resistance becomes a life-safety parameter, which is exactly what continuous earth electrode resistance monitoring tracks on a live installation.

For student work: identify the system type at the supply origin before designing anything, and never create or remove N–E bonds casually — each arrangement has exactly one correct bonding topology.

Power in three-phase: the formulas you will actually use

For a balanced three-phase load:

Apparent power: S = √3 × VL × IL
Active power: P = √3 × VL × IL × cos φ
Reactive power: Q = √3 × VL × IL × sin φ

Worked example — the motor on your demo rig: a 5 HP (≈3.7 kW shaft) motor, efficiency 0.85, power factor 0.8, on 415 V:

Input power P = 3700 / 0.85 ≈ 4353 W. Line current IL = P / (√3 × VL × cos φ) = 4353 / (1.732 × 415 × 0.8) ≈ 7.6 A.

So a 5 HP motor draws about 7.6 A per phase — size the contactor, overload relay (set to ~7.6 A, the motor's full-load current from its nameplate, not your calculation, when they differ), cable (4 mm² or per voltage-drop check), and the soft starter or star-delta starter around this number. The direct-on-line starting current will be 6–8× this — ~45–60 A for a few seconds — which is why the incomer and its curve selection matter, and why a single-phasing preventer is cheap insurance on any rig where losing a phase would single-phase the motor and burn it.

# three-phase motor current and starter selection helper
import math
shaft_kw = 3.7
eff, pf, vl = 0.85, 0.8, 415.0
p_in = shaft_kw * 1000 / eff
il = p_in / (math.sqrt(3) * vl * pf)
print("Full-load current: %.1f A" % il)          # ~7.6 A
print("DOL start (7x):    %.0f A" % (il * 7))    # ~53 A
print("Star start (~1/3): %.0f A" % (il * 7 / 3))

Single-phasing: the fault that kills motors quietly

If one phase of the supply is lost (blown fuse, broken conductor, contactor pole failure), a running three-phase motor continues on two phases — drawing roughly √3× current in the remaining windings, overheating, and failing if unprotected. A motor started on two phases may not start at all and sits at locked-rotor current until something gives. Protection: a single-phasing preventer relay monitoring all three phases (voltage or current asymmetry), plus the thermal overload relay set correctly. On a demo rig, the single-phasing preventer project is a legitimate protection build, not a decoration — wire it to drop the contactor coil on phase loss.

Measurement: what to expect on a healthy 400 V board

Before connecting any load, verify the supply with a CAT III/IV rated meter:

L1–L2, L2–L3, L3–L1: ≈400 V each (within ~±6%)
L1–N, L2–N, L3–N: ≈230 V each
N–PE: ≈0 V (a few volts of neutral shift under load is normal; tens of volts is not)
Phase sequence: R-Y-B rotation confirmed with a phase-sequence indicator before connecting any motor — reversed sequence runs the motor backwards, which on a pump or fan rig is more than an embarrassment.

Log these readings in the report. A three-phase power quality analyzer build turns this one-time check into continuous monitoring — voltage unbalance, THD per phase, neutral current — which is precisely the data that justifies your neutral sizing and protection settings.

Safety rules: non-negotiable around 415 V

Three-phase boards forgive nothing. These are the rules, in the order a student should internalize them:

Treat every conductor as live until you have proven otherwise — with your own meter, on the equipment in front of you, immediately before touching. Someone else's "it's off" is not a measurement.
Lock-out/tag-out. If the board has no lockable isolator, fit one. A strip of tape over a breaker is not isolation.
One hand in pocket when probing live (you should not be probing live as a student — but if a supervisor requires it, this is the posture that keeps a shock from crossing the chest).
No jewelry, no loose sleeves, insulated tools, safety glasses. An arc flash at 415 V is a real event: molten copper, UV, pressure wave. Stand to the side when switching a large breaker on, not in front of it.
Never work alone on a live board. Ever.
Prove-test-prove: test the meter on a known live source, test the dead circuit, test the meter again on the live source. A meter with a dead battery reads zero on a live busbar.
Respect the arc-flash boundary. Do not open a live panel cover to "have a look" — covers are part of the protection.
Earth first, on portable rigs. A demo board's earth must be connected before any phase conductor is energized, and the earth path verified — protection devices assume it exists.

Student-lab reality: most college labs will not let you wire a 415 V board unsupervised, and they are right. Build the control and measurement logic at safe voltages first (a transformer load-sharing demo can be prototyped at reduced voltage), document the full-voltage wiring on paper with a supervisor's sign-off, and energize only under supervision. A correct single-line diagram reviewed by your guide is worth more than a brave afternoon.

Unbalanced loads: doing the neutral math

Take a floor with single-phase loads badly distributed: L1 carries 40 A of lighting, L2 carries 25 A, L3 carries 15 A, all resistive. The neutral current is the phasor sum, not the arithmetic sum:

IN = √(I1² + I2² + I3² − I1I2 − I2I3 − I3I1) for unity-power-factor loads
= √(1600 + 625 + 225 − 1000 − 375 − 600) = √475 ≈ 21.8 A

So a 40 A maximum phase current produces ~22 A in the neutral — this is why "half-size neutral" rules exist for linear loads, and also why they collapse the moment harmonics enter. With LED lighting and computer loads at 30–40% third harmonic, the harmonic components add arithmetically in the neutral: 40 A × 0.35 + 25 A × 0.35 + 15 A × 0.35 ≈ 28 A of harmonic neutral current on top of the 21.8 A fundamental imbalance — the neutral is now carrying more than any phase. Measure, do not assume: a clamp meter with harmonic analysis (or the THD-logging analyzer project linked above) settles the argument in minutes.

Voltage drop: the calculation that sizes long feeders

Protection cares about fault current; equipment cares about voltage. A motor 60 m down a cable may see 380 V instead of 415 V — it draws more current to deliver the same power, runs hotter, and its starter may chatter. The three-phase voltage drop approximation:

Vd ≈ √3 × IL × L × (R cos φ + X sin φ)

For a 7.6 A motor, 60 m of 4 mm² copper (R ≈ 4.6 mΩ/m, X ≈ 0.1 mΩ/m at 50 Hz), cos φ 0.8:

Vd ≈ 1.732 × 7.6 × 60 × (0.0046 × 0.8 + 0.0001 × 0.6) ≈ 1.732 × 7.6 × 60 × 0.00374 ≈ 2.95 V — under 1%, fine.

Repeat for your actual run length; if drop exceeds ~5% at full load, upsize the cable. Students routinely size cable for current and forget voltage drop on long demo-rig cable runs across the lab — the symptom is a motor that starts fine on the bench and struggles at the end of a 50 m extension lead.

Transformer vector groups: what Dyn11 means

The distribution transformer feeding the building has its own connection notation: Dyn11 is the standard. D = HV winding in delta, y = LV winding in star, n = neutral brought out, 11 = the LV lags the HV by 330° (11 × 30°), i.e. effectively a 30° phase shift. Why you care: paralleling two transformers requires identical vector groups (paralleling Dyn11 with Dyn1 circulates current between them), and the 30° shift matters when you synchronize or phase-compare across the transformer. An automatic load-sharing-of-transformers build must respect this — you parallel only matched units, and the paralleling contactors close only when voltage, frequency, phase sequence and phase angle agree.

Current transformers: metering without breaking the circuit

You cannot put a 100 A feeder through a panel meter directly. CTs (current transformers) scale it: a 100/5 A CT delivers 5 A to the meter when 100 A flows in the primary. Rules that are absolute:

Never open-circuit a CT secondary while primary current flows. The unloaded secondary voltage spikes to kilovolts — it destroys insulation and is a lethal shock hazard. Short the secondary with the built-in shorting link before removing any meter.
Observe polarity: P1 toward the supply, S1/S2 to the meter; reversed polarity inverts the power reading and corrupts energy metering.
One CT per phase for three-phase metering; the neutral is derived, not measured, in a 3-wire scheme.

A power-quality analyzer project with CT inputs is the natural student build here — it teaches CT wiring, burden resistors, and calibration in one device.

Three-phase power factor, briefly

The same P = √3 VL IL cos φ governs correction: a lagging plant power factor draws excess current for the same real power, heating cables and attracting utility penalties. Correction capacitors are connected in delta across the three phases (a delta bank sees line voltage per capacitor and needs no neutral), sized from the measured kW and the present/target power factors — the switching hardware for doing this automatically is shown in the automatic power factor correction system project.

Wiring a small three-phase demo board: the sequence

For a typical student rig — incomer, one motor feeder with star-delta or soft starter, one three-phase socket, a metering section — the build order that avoids rework:

Draw the single-line diagram first. Every isolator, breaker, contactor, overload, CT and earth point on one page. Get it reviewed and signed by your guide before buying cable. This page becomes the most valuable sheet in your report.
Mount and wire the earth system first. Earth bar, all enclosure bonds, the supply earth connection — before any phase conductor is cut. Protection assumes the earth exists.
Power wiring, largest to smallest. Incomer → busbars → feeders → final circuits. Keep power and control wiring in separate trunking; crossing at right angles where unavoidable.
Control circuit at safe voltage. Contactor coils, timers, pushbuttons and indication on a 230 V (or 24 V via control transformer) control supply fused separately. A control transformer also isolates the control logic from mains transients — your microcontroller-based monitoring survives longer.
CT secondaries shorted until meters are connected, polarity observed, then un-shorted one at a time with the meter in circuit.
Dead tests before first energization: continuity of every conductor end-to-end, insulation resistance phase-to-phase and phase-to-earth (500 V megger, expect tens to hundreds of MΩ on new wiring), polarity of control circuits, tightness of every terminal. The test-and-debug guide walks through this dead-test/live-test discipline for any project.
Live tests under supervision: phase sequence, voltages, then energize feeders one at a time — motor uncoupled first, then coupled — recording currents per phase and neutral at each step.

Skip step 6 and you are gambling; every experienced engineer has a story about the fault the dead tests would have caught. Write the measured values into the report — a commissioning table with real numbers is the difference between a project that was built and a project that was assembled.

Diagnosis table: symptoms on a three-phase rig

Symptom	Likely cause	Check
Motor hums, will not start, draws heavy current	Single-phasing (one phase missing)	Voltage phase-to-phase on all three pairs at the motor terminals
Motor runs backwards	Reversed phase sequence	Swap any two phases (at the isolator, de-energized)
One phase voltage reads ~0, others normal	Blown fuse or failed contactor pole on that phase	Fuse continuity; contactor pole resistance under load
Neutral conductor hot, phases cool	Harmonic neutral current or severe imbalance	Clamp each phase and neutral; log THD
Equipment frames tingle	Lost installation earth or broken PEN	Earth continuity; N–PE voltage; do not energize until fixed
Breaker trips only when a specific machine starts	Starting current × weak supply, or wrong curve	Clamp the starting transient; check curve letter vs inrush
Lights flicker when the motor starts	Voltage dip from DOL starting on a soft supply	Consider star-delta or soft starter; check supply impedance

Putting it together

The whole subject compresses to a short list: three voltages 120° apart giving constant power; star for neutrals and 230 V, delta for 400 V windings; the √3 in exactly two places (star coil voltage, delta line current); a neutral sized for imbalance and harmonics with exactly one N–E bond; earthing identified before anything is designed; protection selected per the breaker guide; and measurement before energization, every time. Wire one rig to this standard — sequence checked, neutral proven, overload set to the nameplate, single-phasing guarded — and three-phase stops being the scary board in the corner of the lab and becomes the most satisfying circuit you will build as a student.
