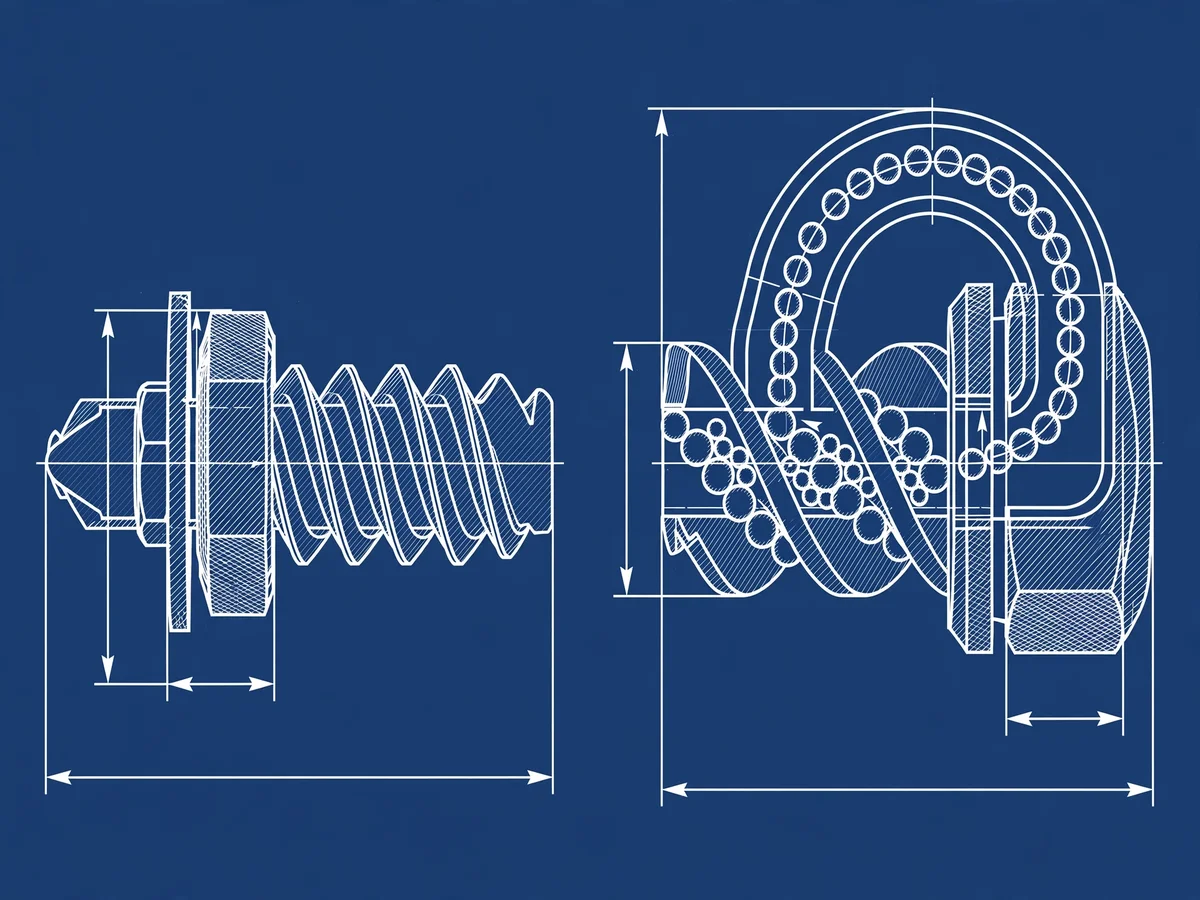

Almost every mechanical student project that moves something in a straight line — a 3D printer axis, a CNC gantry, a pick-and-place arm, a linear actuator for a dispenser — needs to convert motor rotation into linear motion. Two components dominate that job: the lead screw and the ball screw. They look similar from across the room, but they differ in efficiency, accuracy, cost, and self-locking behaviour, and choosing wrong is one of the most common reasons a student build underperforms or blows its budget.
This guide explains how each works, the real selection criteria with numbers you can use, and a decision process you can apply directly to your project.
How a lead screw works
A lead screw is a threaded rod paired with a nut. Turn the screw; the nut travels along it. The contact is sliding friction — the nut's threads slide against the screw's threads — which is why the classic student lead screw is often just a brass nut on a steel threaded rod. Lead screws are the default in budget 3D printers (the common 8mm-pitch "Tr8×8" trapezoidal screw) and in countless student linear actuators.
Key properties, all consequences of sliding friction:
- Efficiency is low — typically 30–50% depending on thread profile and lubrication. Half your motor torque becomes heat.
- It's self-locking (usually). Friction is high enough that a vertical load can't back-drive the screw when power is cut. Your Z-axis won't crash down during a power cut — a genuinely valuable safety property.
- Cheap and simple. A 300mm trapezoidal screw with a brass nut is a fraction of the cost of an equivalent ball screw, and it needs no special handling.
- Wear is real. Sliding contact wears the nut over time; backlash grows as the nut wears. Anti-backlash nuts (a spring-loaded split nut) exist and are worth the small premium for a Z-axis.
How a ball screw works
A ball screw replaces sliding friction with rolling friction: recirculating steel balls run in the thread groove between screw and nut, like ball bearings laid out in a helix. This is the component in CNC machines and serious 3D printers.
- Efficiency is high — typically 85–95%. Nearly all motor torque becomes thrust. You can use a smaller motor, or move a heavier load with the same motor.
- It back-drives. Low friction means a vertical load will drive the screw backwards when unpowered. On a vertical axis you must add a brake or a counterweight/spring, or the axis drops the moment the driver disables.
- Higher precision, lower backlash. Preloaded ball nuts ship with backlash measured in microns, not tenths of a millimetre. For a milling machine or a measurement rig, this is the difference between working and useless.
- Costs more and is dirt-sensitive. Ball screws are several times the price of lead screws at student sizes, and grit in the recirculating balls destroys the races — keep them covered with bellows or wipers.
The selection criteria that actually matter
1. Required speed and travel rate. Lead is the distance the nut advances per screw revolution. An 8mm-lead screw at 600 RPM gives 80mm/s — fine for a 3D printer. Ball screws are available with far coarser leads (10–20mm), and because they're efficient they tolerate higher RPM, so high-speed gantries (pick-and-place, laser) generally need ball screws. Compute your needed mm/s first; it's the fastest filter.
2. Load and motor torque. The thrust from a screw is roughly: thrust ≈ 2π × efficiency × torque / lead. With efficiency at 40% vs 90%, a ball screw delivers more than double the thrust from the same motor and lead. If your load is heavy (a milling spindle, a loaded gripper) and your motor budget is fixed, efficiency decides.
3. Accuracy and repeatability. Ask what tolerance your project actually needs. A 3D printer layer at 0.2mm tolerates a decent trapezoidal screw with an anti-backlash nut. A PCB-milling or laser-engraving gantry, where 0.1mm error is visible, justifies a ball screw. Don't pay for precision you can't measure — and don't expect precision you didn't pay for.
4. Vertical vs horizontal. Vertical axes change the calculus twice: a ball screw needs a brake (added cost, added failure mode), while a lead screw's self-locking is free safety. Many student Z-axes stay lead screws for exactly this reason, even when X and Y go ball screw.
5. Critical speed and buckling. A long, thin screw spinning fast will whip (critical speed) and a long screw in compression can buckle. Both set a maximum usable length for a given diameter and RPM. For typical student lengths (300–500mm) at 8–12mm diameter, stay conservative on RPM; your motor/driver combination usually limits speed before the screw does. Check the manufacturer's critical-speed chart when buying — it's one line of the datasheet, not a calculation to fear.
6. Budget. At student sizes, a ball screw assembly can cost 3–5× a lead screw assembly. Budget rules: if lead screws meet your speed, load, and accuracy needs, they're the correct engineering choice, not the cheap compromise.
Worked selection: three student projects
Ender-style 3D printer Z-axis. Load: a few kg, vertical, speed ~5mm/s, accuracy: 0.1mm layer steps. Choice: trapezoidal lead screw, single-start or 4-start 8mm lead, brass or POM nut, anti-backlash nut if the budget allows. Self-locking keeps the bed where it belongs during power cuts. Ball screw: unnecessary — you'd be paying for speed you can't use.
Desktop CNC router (X/Y). Load: cutting forces plus gantry weight, horizontal, speed: 50–150mm/s rapids, accuracy: 0.05–0.1mm. Choice: ball screw, 1605 or 1610 (16mm diameter, 5 or 10mm lead). The efficiency matters under cutting load, the low backlash shows in cut quality, and the horizontal orientation avoids the braking problem.
Pick-and-place / dispensing gantry. Load: light (gripper + part), horizontal, speed: high (cycle time is the metric), accuracy: moderate. Choice: ball screw with coarse lead (1610/1620) or even belt drive — belt vs screw is its own trade-off (belts are faster and cheaper but stretchier; see the related guide on belt vs chain drives for the selection logic).
Installation details students get wrong
- Support the ends properly. A screw supported only at the motor end (cantilevered) sags and vibrates. Use a fixed support (bearing block) at the motor end and at minimum a floating support at the far end.
- Align the screw with the linear rails. A screw fighting misaligned rails binds, stalls the motor, and wears fast. Mount rails first, then align the screw to them — not the other way around.
- Couple the motor with a flexible coupling. A jaw or Oldham coupling absorbs the small misalignments a rigid coupling turns into bearing-killing side loads.
- Lubricate. A drop of light machine oil on a lead screw (or the grease the ball screw shipped with, refreshed periodically) noticeably changes both noise and life. Dry screws are a top cause of "my axis stalls randomly."
- Protect ball screws from dust. In a dusty workshop, an uncovered ball screw on a CNC ingests abrasive dust. Bellows or simple wipers are cheap insurance.
FAQs
Can I mix lead screws and ball screws in one machine? Yes, and it's common: ball screws on fast horizontal axes, lead screw on the vertical axis for free self-locking. Machines are systems; each axis gets what its job needs.
What do the numbers in "1605" mean? 16mm nominal diameter, 5mm lead. A 1610 is the same diameter with 10mm lead — double the speed per revolution, roughly half the thrust per unit torque. Match the lead to your speed/force trade-off.
Is a ball screw always more accurate than a lead screw? In practice, yes at comparable price points — but a good trapezoidal screw with an anti-backlash nut and proper alignment beats a cheap, misaligned ball screw. Installation quality can outweigh component grade.
Why does my lead-screw axis bind at one end of travel? Almost always misalignment: the screw and rails converge or diverge along the travel. Loosen the nut mount, run the axis end to end, and re-tighten the mount at the binding point. If it binds everywhere, check the screw is straight — bent screws from shipping are common.
Do I need a bigger stepper motor with a lead screw? Not necessarily bigger — but account for the efficiency. A NEMA 17 that drives a load through a 90%-efficient ball screw may stall driving the same load through a 35%-efficient lead screw. Run the thrust equation with your actual torque and lead before buying the motor, and size for the worst case (starting friction, not running friction).
Limitations
This guide covers selection, not full machine design: bearing life calculations, motor sizing under acceleration, and structural stiffness of the frame are separate topics that a real build must also address. Prices and availability vary by region — verify current pricing from local suppliers before locking your bill of materials. Finally, the efficiency figures quoted are typical ranges from manufacturer data, not measurements of any specific product; your actual screw's datasheet is the authority for your build.
