JSON Schema Validator and Dynamic Form Generator

JSON is the lingua franca of web APIs, and JSON Schema is how teams contract what a payload must look like — required fields, types, ranges, formats. Students usually hand-validate payloads by eye and discover violations only when an API rejects them. Worse, the schema that validates data can also generate the form that collects it, a connection rarely taught: validation is presented as an abstract spec while forms are hand-built, so learners never see one schema doing both jobs. SchemaForge makes that connection concrete in a single page: write a schema once, validate documents against it with exact error locations, and watch the same schema render as a working form whose submission serializes back to JSON — the full round trip, running entirely in the browser.

1. Both panes are JSON-parsed on demand; parse failures report the engine's own error message.
2. The recursive validator walks the document and schema in parallel, accumulating {path, message} errors for type mismatches, missing required keys, range/length violations, pattern and email checks, enum membership and forbidden extra properties.

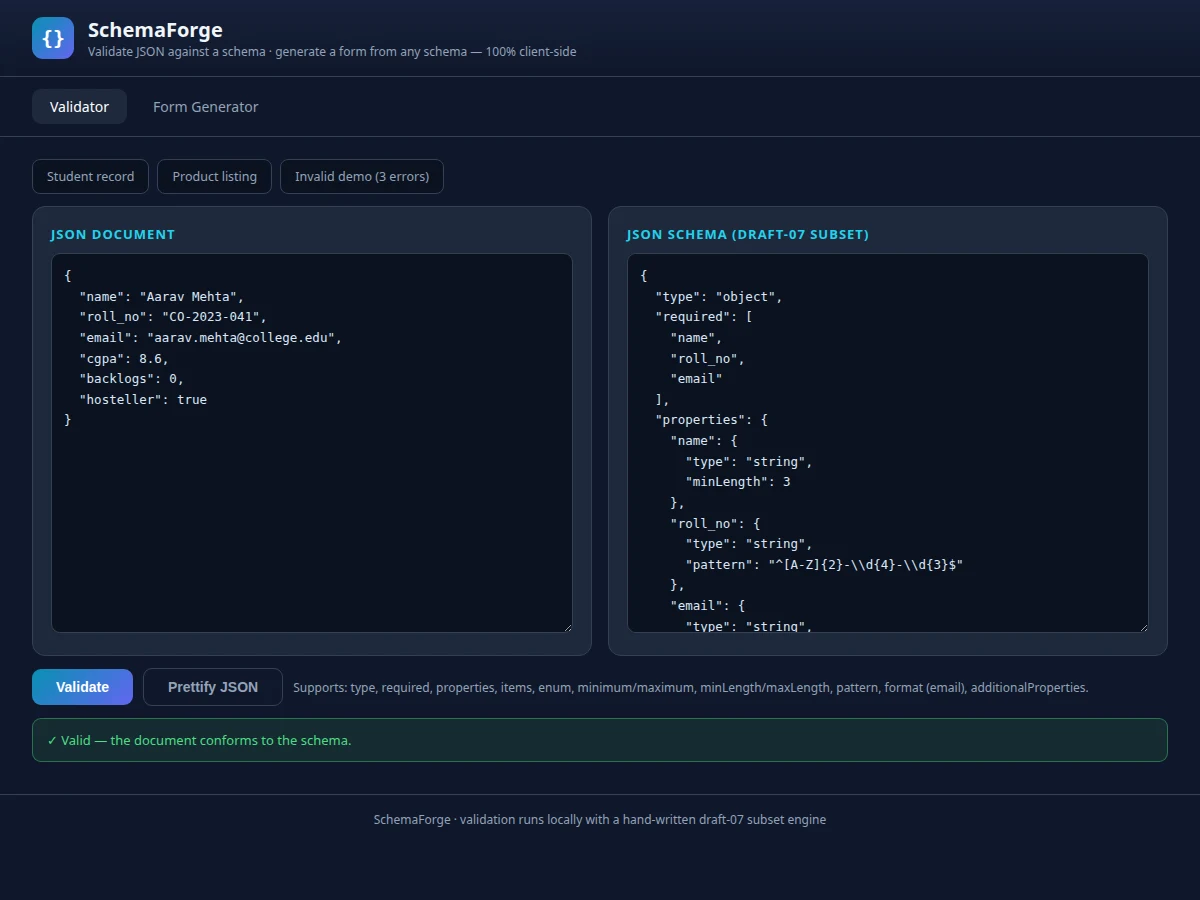

3. A green banner means full conformance; a red banner lists one error card per violation with its path.
4. The form generator recursively maps schema types to inputs, marking required fields and wiring native HTML validation attributes (minlength, pattern, min, max) from the schema constraints.
5. On submit, named inputs are gathered back into a JSON object — numbers coerced, checkboxes as booleans — and shown pretty-printed, completing the round trip.
6. Views switch via URL hash between the validator and the form generator.

Tech stack:

• HTML5, CSS3 (dark developer theme)
• Vanilla JavaScript (no frameworks)
• Hand-written recursive schema validator (draft-07 subset)
• Recursive schema-to-form renderer
• No backend, no dependencies — runs offline

• [Schema validator] A hand-written draft-07 subset engine: type, required, properties, items, enum, minimum/maximum, minLength/maxLength, pattern, email format and additionalProperties.

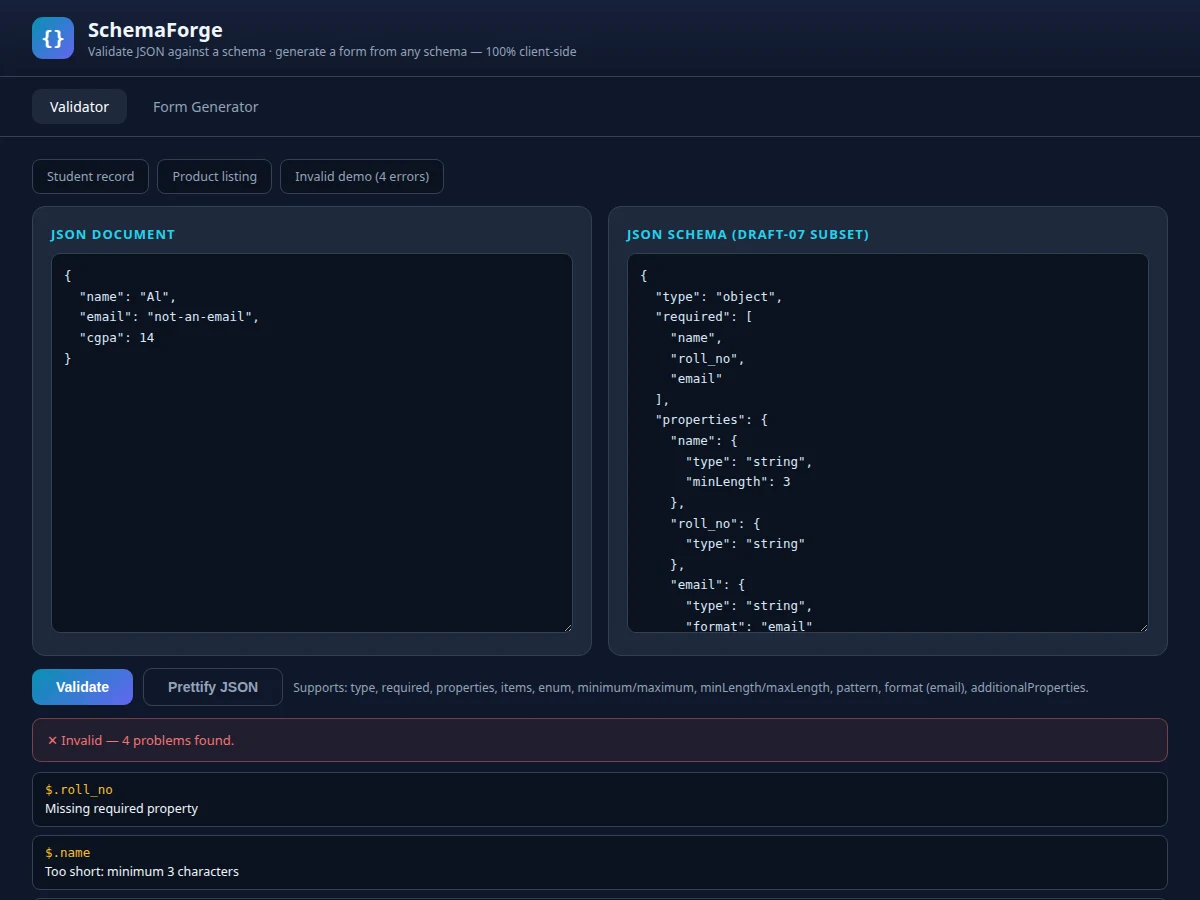

• [Path-precise errors] Every violation reported with its JSON path and a readable message (e.g. $.cgpa: above maximum 10), not a bare pass/fail.

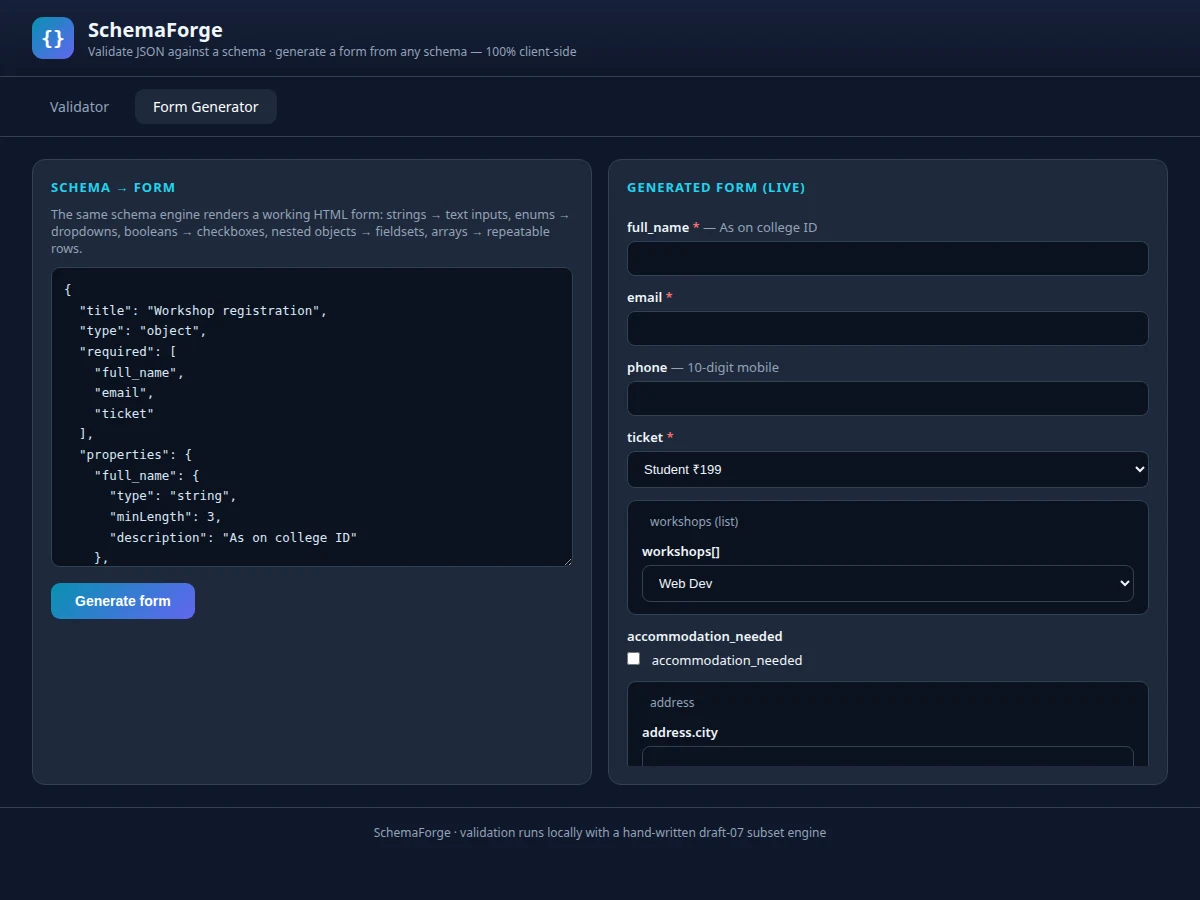

• [Dynamic form generator] The same schema renders a live form: strings to text inputs (with minlength/pattern attributes), numbers with min/max, enums to dropdowns, booleans to checkboxes, nested objects to fieldsets, arrays to repeatable rows.
• [Submit-to-JSON] Generated forms serialize back to pretty-printed JSON on submit, demonstrating the schema → form → data round trip.
• [Sample library] Three one-click pairs: a valid student record, a product listing, and an intentionally-invalid document showing four simultaneous errors.
• [Prettify helper] One-click JSON formatting for the document pane.
• [Zero-setup delivery] One HTML file, no libraries, no server — runs offline from a pen drive.

• Complete single-file web app (validator + form generator views)
• Documented validator and renderer code
• Project report PDF (background, JSON Schema theory, methodology, screenshots)
• PPT presentation for final review
• Viva Q&A preparation document (schema keywords, validation vs parsing, schema-driven UI)
• User guide for running and demonstrating the toolkit

• Implements a practical draft-07 subset, not the full spec: no $ref, oneOf/anyOf/allOf or if/then (listed as future scope).
• format: email uses a pragmatic regex, not full RFC 5322 validation.
• Generated forms are single-page; multi-step wizards are not supported.
• No schema persistence beyond the session — save/export is listed as future scope.
