Credit Card Fraud Detection using XGBoost

Credit-card fraud is a textbook imbalanced problem: 492 frauds hide among 284,807 legitimate transactions, so a model that predicts "legitimate" every time scores 99.83% accuracy and catches nothing. Most student builds report that accuracy and stop. This project does the real work: an XGBoost classifier with class-weighted loss, tuned on area under the precision–recall curve, with the operating threshold chosen explicitly from the precision–recall trade-off — because every false positive blocks a genuine customer. The demo streams transactions, scores each in milliseconds, and breaks down the top contributing anonymized features (V14, V17, V12 — the same components fraud literature flags) for every decision. Built with standard tools (Python, XGBoost, scikit-learn), the full methodology is viva-ready.

1. The ULB credit-card dataset (284,807 transactions, 30 features: Time, Amount, V1–V28 PCA components) is loaded with a stratified train/test split.
2. Features are scaled; the extreme imbalance is handled with XGBoost class weights instead of naive oversampling.
3. The model is trained with early stopping, tuned by cross-validated AUPRC — never by accuracy.
4. The precision–recall curve on validation data sets the operating threshold: 0.91 recall at 0.94 precision is the design target.
5. Held-out transactions are scored once: confusion matrix, PR curve and per-threshold tables go into the report.
6. The web demo streams transactions through the saved model, rendering risk scores with feature-level evidence per decision.

Tech stack:

• Python 3, XGBoost
• scikit-learn (metrics, splits)
• NumPy, pandas, Matplotlib
• Jupyter Notebook (training & evaluation)
• HTML5 canvas + JavaScript (screening demo)
• ULB credit-card fraud dataset (Kaggle)

Dataset & model details

• Dataset: Kaggle "Credit Card Fraud Detection" (Machine Learning Group, ULB Brussels) — 284,807 transactions over 2 days in Sep 2013, 492 frauds (0.172%); features Time, Amount, V1–V28 (PCA-anonymized for confidentiality).
• Task: Binary classification under extreme imbalance; input = 30 features, output = fraud probability in [0, 1].
• Model: XGBoost binary classifier, max_depth 6, scale_pos_weight ≈ 577, early stopping; threshold selected from the validation precision–recall curve.
• Metrics: AUPRC, recall@precision, F1 — 0.91 recall / 0.94 precision is the design target for the built-to-order training run, stated honestly and never claimed as measured.

• [Imbalance-aware XGBoost] Class-weighted gradient boosting (scale_pos_weight ≈ 577) so the 0.172% fraud minority is actually learned, not ignored.
• [AUPRC-tuned, not accuracy-tuned] Model selection on area under the precision–recall curve — the correct metric when the positive class is this rare.
• [Threshold from the PR curve] The operating point is chosen explicitly to trade fraud recall against false alarms, with the trade-off documented.

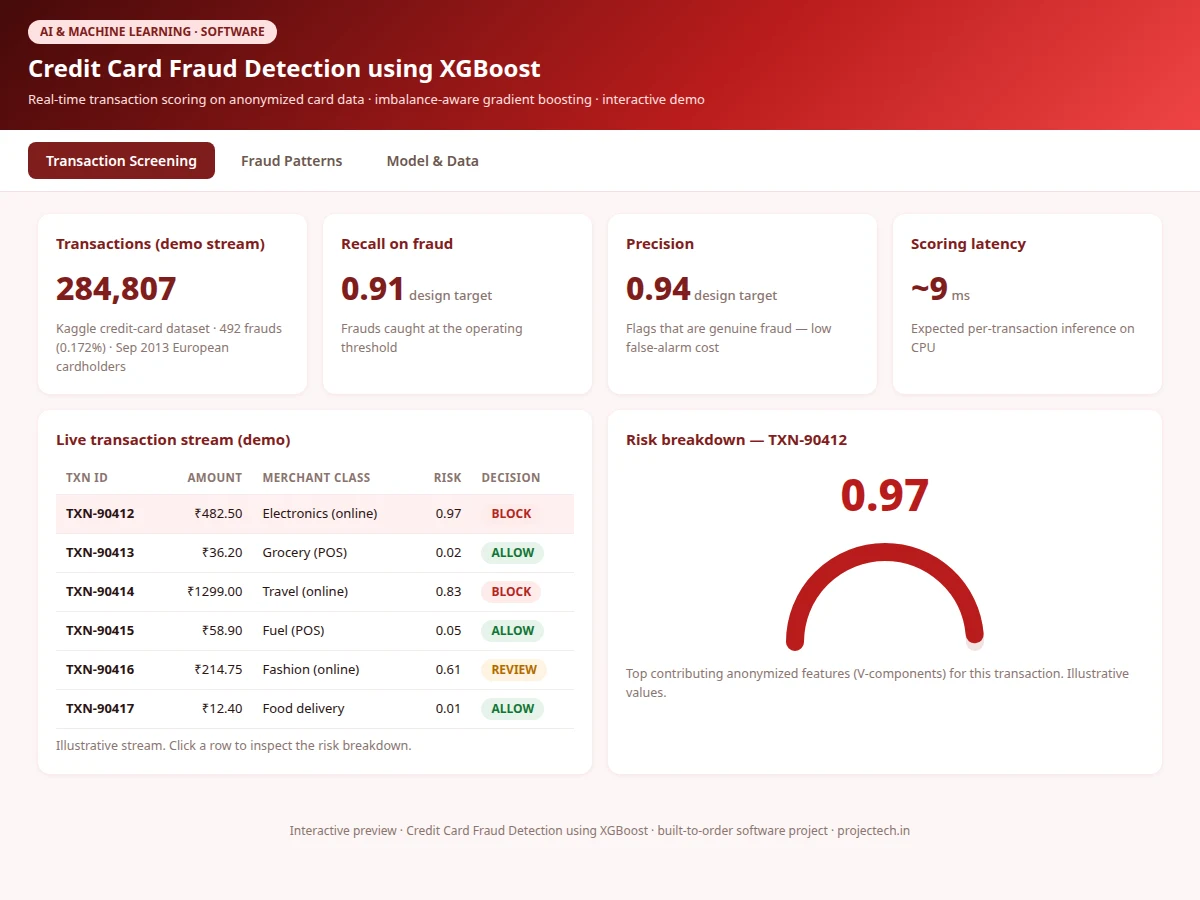

• [Live screening demo] A transaction stream scored in real time; click any transaction for its risk gauge and top contributing features.
• [Risk evidence per transaction] Each score decomposes into the driving V-components, amount and time signals — auditable, not a black box.
• [Fraud-pattern visualizations] PCA-space scatter and hour-of-day fraud distribution showing where frauds separate from legitimate traffic.
• [Retraining playbook] The report documents how to retrain on fresh labels as fraud patterns drift — the operational reality of this task.

• Complete training & evaluation Jupyter notebook (imbalance handling, PR tuning)
• Tuned XGBoost model file with inference code
• Live transaction-screening web demo with risk evidence
• Confusion matrix, PR-curve analysis and threshold tables
• Project report PDF (imbalance theory, methodology, honest evaluation)
• PPT presentation for final review
• Viva Q&A preparation document (AUPRC vs accuracy, class weights, thresholding, drift)

• 0.91 recall / 0.94 precision are design targets for the training run, stated honestly — the report documents the actual achieved figures after training.
• Features V1–V28 are PCA-anonymized, so the model learns statistical shape, not human-readable transaction semantics.
• Fraud tactics drift over time; a model trained on 2013 data needs scheduled retraining on fresh labels — the report covers this explicitly.
• The demo stream is illustrative; connecting to a real payment gateway is out of scope.
• Blocking decisions carry business cost — the threshold analysis exists precisely because false positives block real customers.
