How to Test Earth Pit Resistance

Every protective device in an electrical installation — the MCB that clears a short, the RCCB that saves a person — assumes one thing: a low-impedance path to earth for fault current to flow through. The earth pit is what provides it, and its resistance is a number you measure, not a property you assume. This guide covers the fall-of-potential method properly: the theory in plain terms, the exact test geometry, how to read the instrument, what the numbers mean against IS 3043, and how to fix a pit that fails — before an inspector, or a fault, finds it first.

Why earth resistance matters: the fault loop in numbers

When a phase conductor touches an equipment frame, fault current flows: phase → frame → earth conductor → earth electrode → soil → back to the transformer neutral. The total impedance of that loop decides the fault current, and the fault current decides whether the breaker trips in the required time. A simplified view with a TN system: if the loop impedance is 2 Ω on a 230 V supply, fault current is ~115 A — a C16 MCB's magnetic element trips in milliseconds. If a corroded earth connection has pushed the loop to 20 Ω, fault current is ~11.5 A — the MCB sits in its thermal zone for minutes while the frame sits near full phase voltage. People die in that gap.

The earth electrode's resistance to soil is the part of the loop you own and can measure. Typical acceptance values (IS 3043 / common utility practice in India):

Installation	Commonly required earth resistance
Single earth electrode (general)	≤ 5 Ω
Power station / large substation	≤ 1 Ω (often ≤ 0.5 Ω for EHV)
Combined earth for a building	≤ 5 Ω
Electronic / data equipment earth	≤ 1–2 Ω (manufacturer-specified)

These are design targets to verify against your local inspector's or utility's stated figure — write the applicable limit in your report and cite the source, because limits vary by authority and application.

What you are actually measuring

"Earth resistance" is the resistance between the electrode and remote earth — soil at a distance where the electrode's influence is negligible. It has three components:

Electrode metal resistance — negligible (milliohms).
Contact resistance between electrode and soil — small for a well-installed electrode, large for a corroded or dry one.
Soil resistance in the volume around the electrode — the dominant term. Current spreads out in shells around the electrode; most of the voltage drop happens within a few metres, which is why electrode depth, soil moisture and soil resistivity dominate the result.

Soil resistivity (ρ, ohm-metres) varies enormously: wet clay ~10–50 Ω·m, moist loam ~50–150 Ω·m, dry sand ~500–1000+ Ω·m, rock higher still. The classic formula for a single rod:

R = (ρ / 2πL) × ln(4L / d)

For a 3 m rod, 16 mm diameter, in 100 Ω·m soil: R ≈ (100 / 18.85) × ln(750) ≈ 5.3 × 6.62 ≈ 35 Ω — which is why a single short rod in ordinary soil fails, and why real pits use longer/deeper electrodes, multiple rods, or soil treatment. Run this formula before digging: it tells you whether one rod has any chance or you are planning a grid from the start.

# single-rod earth resistance estimate (design-stage planning)
import math
rho = 100.0      # soil resistivity, ohm-m (measure or estimate conservatively)
L = 3.0          # rod length, m
d = 0.016        # rod diameter, m
R = (rho / (2 * math.pi * L)) * math.log(4 * L / d)
print("Estimated single-rod resistance: %.1f ohm" % R)
# try: longer rod, or two rods spaced > rod length apart (parallel, ~60% of single)

The fall-of-potential method: the standard test

This is the reference method (IS 3043, IEEE 81): inject a test current between the electrode under test (E) and a remote current spike (C), and measure the voltage between E and a potential spike (P) placed between them. R = V / I, computed by the instrument.

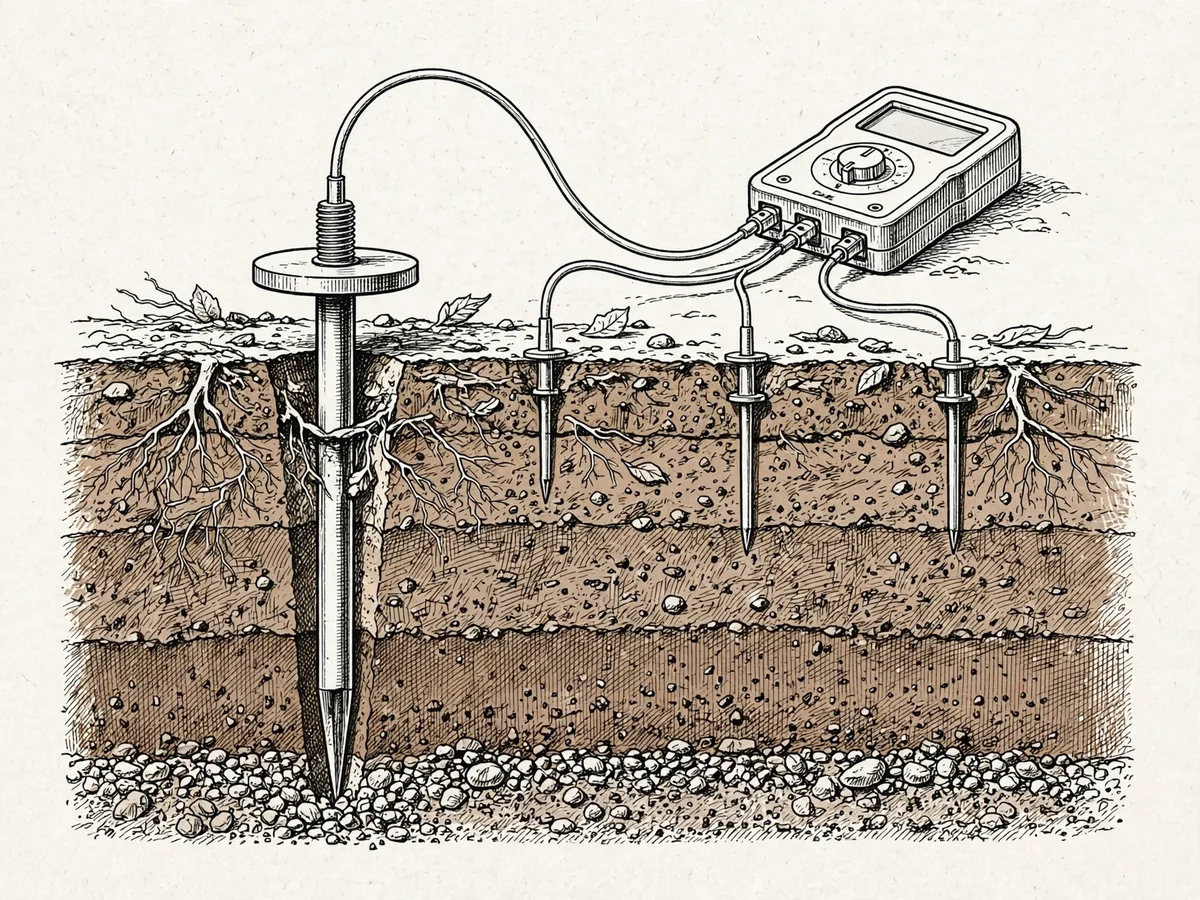

The geometry, exactly

Drive the current spike (C) into the ground at a distance of at least 5× the electrode's largest dimension from E — for a 3 m rod, 15–30 m away; 30 m is the comfortable figure. Further is better; the requirement is that C sits in "remote earth" outside E's zone of influence.
The potential spike (P) goes on the straight line between E and C.
Take readings with P at 52%, 62% and 72% of the E–C distance. If the three readings agree within ~5%, the 62% reading is your earth resistance — P was in the flat "plateau" region of the potential curve, outside both electrodes' influence zones.
If the readings slope steadily upward or downward with no plateau, the spikes are too close: move C further out and repeat. A reading taken with P inside E's influence zone is not a measurement, it is a random number.

Why the plateau matters

Plot measured resistance against P position: near E the reading is low (P inside E's voltage shell), near C it climbs steeply (P entering C's shell), and between them lies a flat plateau — the true resistance to remote earth. Students who take a single reading at an arbitrary spike position and write it in the report have measured nothing verifiable. The three-reading plateau check is what makes the result defensible.

Instrument note: use a proper earth tester (3/4-terminal) or a clamp-on tester where applicable — not a multimeter. A multimeter cannot inject the test current or reject stray soil voltages. Digital earth testers (the common handheld 3-pole type) automate the V/I computation and many perform the 52/62/72% sequence guidance. Whatever the instrument, record its make, model and calibration status in the report.

Step-by-step field procedure

Isolate the electrode. Disconnect the earthing conductor from the pit under test — you are measuring the electrode, not the whole installation's parallel paths. Tag the disconnected conductor so it is reconnected afterwards; an installation left with its earth disconnected is worse than one never tested.
Inspect first. Open the pit: check the electrode for corrosion, the clamp for tightness, the backfill for settlement. A green, pitted copper rod or a rusted-through GI pipe tells you the result before the meter does. Photograph it for the report.
Lay out the spikes in a straight line, away from buried metal (pipes, fences, other earths) which distort the field. In built-up areas where 30 m of clear line is impossible, the test geometry is compromised — note it, and consider the clamp-on method below.
Water the spikes, not the pit. Drive spikes into moist soil and pour water around the spikes for good contact. Do not flood the earth pit itself before testing — that gives a flattering reading that vanishes in summer. Test in dry-season conditions if you want the honest number; IS 3043 practice recognizes seasonal variation, and the worst-case (dry) reading is the one that matters.
Take the 52/62/72% readings. Record all three plus the E–C distance and spike positions. Check the plateau.
Repeat after reconnecting if you want the system value — the installation's combined earth with all electrodes in parallel — but the per-electrode value is the diagnostic one.
Reconnect the earthing conductor and torque the clamp. Then verify continuity from the pit to the main earth bar.

Reading the result: the diagnosis table

Reading	Interpretation	Action
≤ target (e.g. ≤ 5 Ω) with a clean plateau	Pit healthy	Record, schedule periodic retest (annually; IS 3043 recommends regular testing)
Above target, plateau clean	Genuinely high resistance	Remediate (below); retest
Readings slope with no plateau	Spikes too close or buried metal interference	Extend E–C distance; relocate the line; repeat
Reading varies wildly between attempts	Stray currents in soil, poor spike contact, or a failing instrument battery	Water the spikes, check leads and battery, test at a quieter time
Very low (< 1 Ω) on a single rod in dry soil	Suspicious — likely measuring a parallel path (fence, pipe, building steel)	Isolate more thoroughly; verify what the electrode actually connects to
Reading climbs year over year	Corrosion or drying of backfill	Open the pit and inspect; plan electrode replacement

Fixing a high-resistance pit

Work through these in order of cost and effort:

Deeper electrode. Resistance falls roughly with 1/L. Driving a rod from 3 m to 6 m in uniform soil roughly halves the resistance. Deep-driven rods also reach permanently moist strata, killing the seasonal swing.
Multiple rods in parallel. Two rods give ~60% of one rod's resistance (not 50% — their fields overlap); spacing matters: keep rods at least as far apart as they are long, preferably twice. Three or four rods in a line or triangle is the standard small-installation arrangement.
Larger diameter / plate electrodes. A plate electrode (e.g. 600×600 mm copper or GI plate buried vertically ~3 m deep in a charcoal-and-salt or bentonite backfill — the traditional Indian pit) gives large soil contact area. Bentonite backfill is the modern choice: it retains moisture, has low resistivity (~2–5 Ω·m), and does not corrode the electrode the way salt does. Salt/charcoal pits work but the salt leaches out over years and accelerates corrosion — note the maintenance implication honestly in any report.
Chemical / bentonite backfill around rods. Backfilling the augered hole around a rod with bentonite slurry effectively enlarges the electrode and stabilizes moisture.
Soil treatment and watering. A permanent watering pipe to the pit (the traditional Indian pit has one) lets you wet the backfill in summer. It is maintenance, not a one-time fix — document the watering schedule.

After any remediation, retest with the same geometry and record before/after. A before/after table with dates is the most convincing page in an earth-pit project report.

The clamp-on method: when spikes are impossible

On a live installation where you cannot isolate the electrode or drive spikes (city buildings, concrete aprons), a clamp-on earth tester measures the loop resistance by inducing a test voltage in the earth loop and reading the resulting current. Constraints students must understand:

It measures the loop, not the electrode alone — the reading includes every parallel path. On a multi-earthed installation the reading is dominated by the parallel combination and can look reassuringly low while one electrode has failed open.
It requires a complete loop: a single isolated electrode with no return path cannot be measured this way.
Use it for trending and screening; use fall-of-potential for the definitive per-electrode value. An earth electrode resistance trend monitor automates the trending part — continuous logging catches the slow corrosion-driven climb long before the annual manual test.

Electrode types compared: choosing before you dig

Type	Typical resistance (100 Ω·m soil)	Strengths	Watch out for
Single 3 m rod, 16 mm	~30–40 Ω	Cheap, fast to install	Rarely passes alone; needs multiples or depth
Deep-driven rod, 6–9 m	~12–20 Ω	Reaches moist strata, small footprint	Needs a driving hammer; rocky soil stops it
Plate 600×600 mm at 3 m	~15–25 Ω	Large contact area, traditional and inspectable	Big excavation; salt backfill needs renewal
Pipe electrode with watering arrangement	~15–30 Ω	Maintainable via watering pipe	Corrosion at the waterline; needs upkeep
Ring/radial strip around building	~5–15 Ω	Excellent for new construction	Only practical before/during construction
Chemical electrode (factory-made, backfilled)	~5–15 Ω	Stable, low maintenance	Higher material cost

Rule of thumb for planning: estimate with the rod formula, then install one size better than the estimate — soil is never as uniform as the formula assumes, and digging twice costs more than digging once.

Measuring soil resistivity: the Wenner four-pin method

The rod formula needs ρ, and guessing it is the weakest link in the planning. The Wenner method measures it: drive four spikes in a line, equally spaced at distance a, inject current through the outer two, measure voltage across the inner two. For spacing a (metres):

ρ = 2πa × (V / I)

The measured ρ is the average resistivity of soil down to roughly depth a — so repeat at several spacings (1 m, 2 m, 4 m, 8 m) to profile the strata. A typical Indian site profile might read: 1 m → 60 Ω·m (moist topsoil), 4 m → 140 Ω·m (dry clay), 8 m → 45 Ω·m (water-bearing stratum) — which immediately tells you a 8–10 m deep rod beats any shallow arrangement. Earth testers with a 4-pole/soil-resistivity mode do the V/I math internally; record spacing vs ρ in a table and you have the geotechnical page of your report done.

Typical resistivity ranges for reference (design-stage estimates only — measure your site):

Soil type	Resistivity (Ω·m)
Wet clay, marshy ground	10–50
Moist loam, garden soil	50–150
Dry clay	150–400
Dry sand, gravel	500–1500
Rock	1000+

Building the traditional pit: what goes in the ground

The conventional Indian earth pit (still the most common student-built electrode) is a vertical plate or pipe electrode in treated backfill:

Excavate ~1.5 m × 1.5 m, ~3 m deep (below the frost/drying line; deeper where the water table is low).
Electrode: 600×600×3 mm copper plate (or 600×600×6 mm GI plate for the economical version) buried vertically, or a 40–50 mm GI pipe 3 m long driven/placed vertically. Copper lasts longer; GI is cheaper and perfectly acceptable where soil is not aggressive.
Backfill in layers: alternate ~150 mm layers of charcoal and salt around the plate (traditional), or bentonite slurry (modern, lower maintenance). The traditional mix gives low resistance immediately; the salt leaches away over 5–8 years and corrodes GI — bentonite holds moisture for decades without the corrosion penalty.
Watering pipe: a 40 mm perforated PVC pipe from the surface to the pit bottom, capped at ground level in a masonry/CI inspection chamber. Summer watering through this pipe is the maintenance that keeps the reading stable.
Connection: the earth conductor (copper or GI strip/wire, sized per fault level — commonly 25×3 mm GI strip or 8 SWG copper for small installations) clamped to the electrode with a proper lug, the joint protected against corrosion (bitumen coating or a buried inspection joint).
Inspection chamber: a masonry or precast chamber with a removable CI cover at ground level, so the clamp can be opened for testing without excavation.

Document the as-built: electrode material and size, depth, backfill type, backfill quantities, and a sketch with dimensions. Ten years later, the person retesting the pit will thank you.

Seasonal variation: the reading is a curve, not a number

The same pit measures differently in March and August. A pit reading 4 Ω in monsoon can read 12–25 Ω in peak summer as the topsoil dries — this is normal physics, not necessarily a failing electrode, and it is why acceptance testing is most reliable in dry conditions. If your project spans seasons, log monthly readings and plot them: the curve's shape (smooth seasonal wave vs a rising trend) distinguishes drying from corrosion. A rising trend across the same season year-on-year is the signature of a dying electrode — plan replacement before it crosses the limit.

Touch voltage, step voltage, and why substations care more

Around an electrode carrying fault current, the soil surface is not at zero potential — voltage gradients spread outward. Touch voltage is what a person touching an earthed frame experiences (frame potential minus local soil potential); step voltage is the potential between a person's feet a metre apart near the electrode. Substation earthing design (IEEE 80) sizes the grid so these stay below fibrillation thresholds for the fault-clearing time. For a student building earth: keep electrodes away from walkways where practical, bond all nearby metalwork to the same earth (eliminating the potential difference is what matters), and understand that a high-resistance pit does not just fail the inspector — it raises every frame in the installation toward phase voltage during a fault. This is the physical reason the 5 Ω-style limits exist.

Earth resistance vs earth-fault loop impedance: do not confuse them

Two different measurements, two different jobs:

Earth electrode resistance (this guide): electrode-to-remote-earth, measured with the electrode isolated. Tells you the pit's health.
Earth-fault loop impedance (Zs): phase-to-earth loop with the installation energized, measured with a loop tester at the socket or board. Tells you whether the breaker will actually trip in time — it includes the electrode, the soil path, the transformer earth, and all conductors.

A healthy pit with a broken earth conductor gives a good electrode reading and a lethal loop impedance. Test both: the pit annually (fall-of-potential), the loop at commissioning and after any alteration (loop tester). Your report should contain both numbers with the instruments named — that is what a complete earthing chapter looks like.

Common errors that invalidate the test

Testing without isolating the electrode (measures the whole parallel network, calls it "the pit").
Spikes too close, single reading, no plateau check.
Testing right after rain or after watering the pit (flattering seasonal low).
Ignoring buried metal near the test line.
Using a multimeter on the ohms range (measures lead resistance and hope).
Forgetting to reconnect the earth conductor afterwards — verify with a continuity check from the installation earth bar to the pit.

Safety during the test

The electrode under test is disconnected from the installation during the measurement — which means the installation is without its earth for the duration. Keep the test window short, keep the area clear, and do not energize fault-prone equipment while the earth is lifted. The test current from the instrument is small (milliamps), but the disconnected-earth state of the installation is the real hazard. Reconnect and verify before leaving the site.

Maintenance and retest schedule

Interval	Task
Monthly (summer)	Water the pit through the watering pipe if readings trend upward
Annually	Fall-of-potential test per electrode, dry season; compare with previous years
Annually	Open inspection chamber: check clamp tightness, corrosion, backfill settlement
Every 3–5 years	Excavate-check or replace GI electrodes in aggressive soils; copper lasts much longer
After any fault	Inspect the electrode that carried fault current — high-current events can dry out or damage backfill

Keep a logbook at the installation: date, weather/soil condition, instrument, per-electrode readings, spike geometry, remarks. The logbook is what turns "we tested the earth" into evidence.

On a student budget: what to buy, borrow, or build

A proper digital earth tester costs real money — but most colleges already own one in the electrical machines or measurements lab. Before buying anything: ask the lab in-charge; the instrument often sits unused because nobody teaches the fall-of-potential experiment anymore. If you must buy, the entry-level 3-pole digital testers are adequate for student pits (verify the test current and voltage specs cover your electrode size), and a clamp-on tester is a worthwhile second instrument only if you will do live-installation trending. What you should not do is "build an earth tester with an Arduino" as a substitute for the measurement — injecting a clean, known test current with proper spike isolation and stray-voltage rejection is an instrument design project in itself, and a DIY reading nobody can trust is worse than no reading. Build the trend monitor for continuous logging after you have a trusted instrument to calibrate it against, not before.

When the pit is not yours to fix

Student projects sometimes inherit an installation earth — a rented workshop, a college building, a society compound. If your measurements show a dangerous earth on someone else's installation, the correct action is a written note to the owner/manager with the readings, the applicable limit, and the date — not a DIY rewire of the building's earthing. Keep a copy. The same applies in reverse: never "improve" a shared earth by driving your own rod and bonding it without the owner's knowledge — parallel electrodes change fault current paths for the whole installation and can mask a failing main earth. Measure, document, report, and let the responsible party act.

Documentation template for the report

A complete earth-pit test record fits on one page per electrode:

Electrode ID, location sketch with dimensions, installation date
Electrode material/size/depth, backfill type
Soil resistivity (Wenner) at 2–3 spacings, or stated estimate with source
Design estimate from the rod/plate formula
Test date, soil condition (days since rain), instrument make/model
E–C distance, spike positions, readings at 52/62/72% — plateau confirmed or not
Final resistance, applicable limit, pass/fail
Remediation (if any) with before/after readings

Where earthing meets the rest of the installation

The pit is the foundation; the protection built on it includes earth-fault sensing with core-balance CTs, which detect the small leakage currents that only a sound earth path makes detectable, and continuous electrode resistance trending for installations that cannot afford an annual surprise. Upstream, a voltage guard handles the supply-side abnormalities earthing cannot fix. Size the pit for the fault level, prove it with the plateau, log it every year — and the entire protection scheme above it finally rests on something solid.

And once the pit is proven, the protection above it — the breakers and sensing on a smart distribution board, the earth-fault protection sensing leakage — finally has the low-impedance path it was designed around.
