Power problems are responsible for many final-year prototypes that work perfectly on the table one day and randomly restart during the actual demonstration. A board that browns out when Wi-Fi transmits, a servo that resets the microcontroller when it moves, or a battery that dies halfway through the demo are all power problems — not code problems.

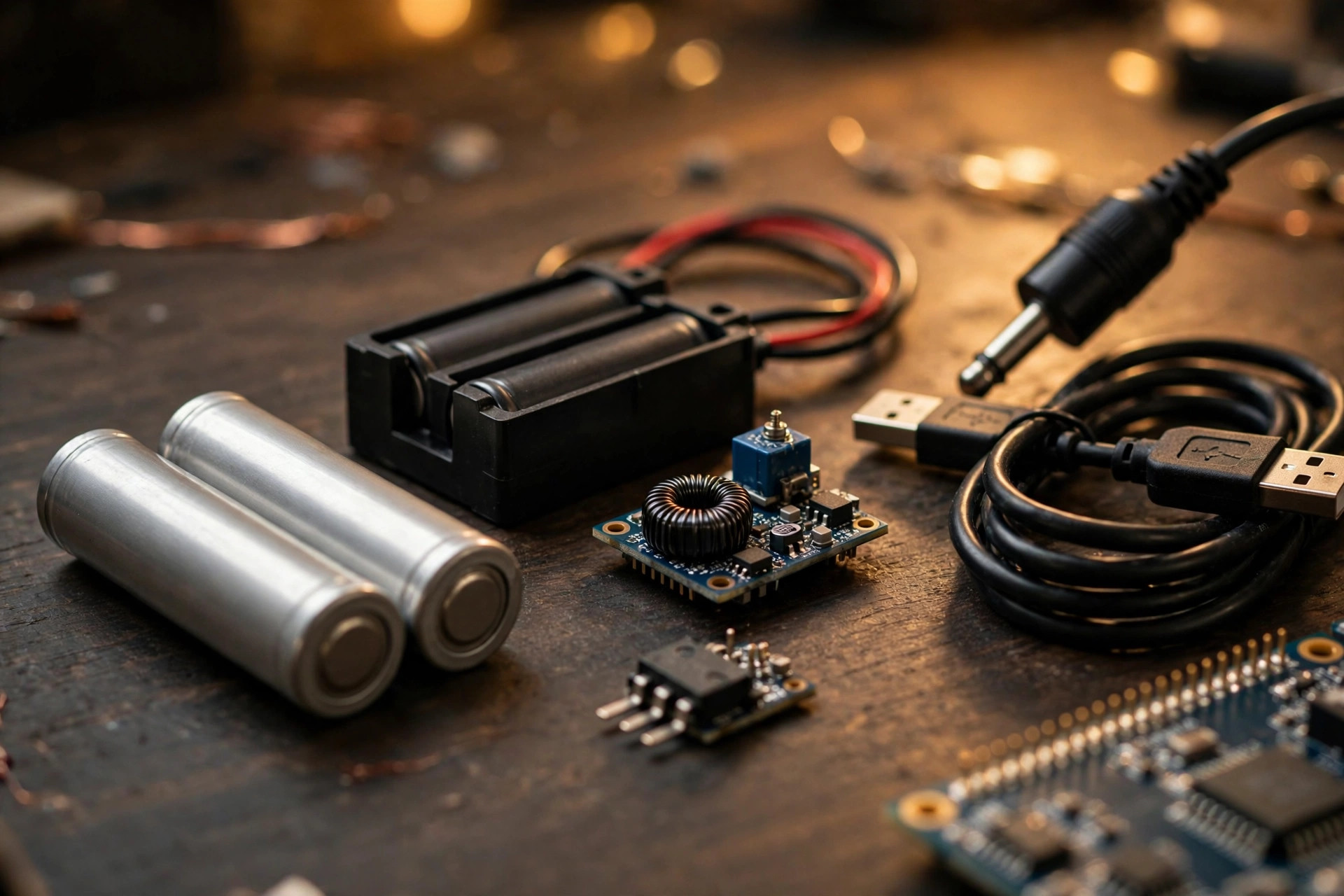

This guide explains how to power ESP32, Arduino, and Raspberry Pi projects properly: how to estimate what your project needs, how to choose between USB, barrel-jack adapters and batteries, when to use a voltage regulator or buck converter, and how to avoid the mistakes that waste the most time.
Why power planning matters
Every electronic component needs a specific voltage and draws a certain current. If the supply voltage sags under load, or the supply cannot deliver enough current at peak moments, the microcontroller misbehaves. Symptoms include:
- random restarts when Wi-Fi connects or a motor starts;
- sensors giving unstable readings;
- the board working on one USB port but not another;
- the project dying minutes into the demonstration.
Planning power first is cheaper than debugging it later. A simple power budget — a list of every component with its voltage and current — takes fifteen minutes and prevents most of these failures.
Know what your boards need
If you are still deciding between boards, see our comparison: ESP32 vs Arduino vs Raspberry Pi: Which Is Best for Final-Year IoT Projects?. The notes below summarise what each board needs from its power supply.
| Board | Typical supply | Power considerations |
|---|---|---|
| ESP32 | ESP32 development boards are usually powered through USB at 5 V, and an onboard regulator drops this to the 3.3 V the chip uses. The chip itself runs on 3.3 V logic. | Wi-Fi transmission causes short, sharp current spikes. Your supply must handle peaks, not just the average current. A weak supply or thin USB cable causes brownouts exactly when Wi-Fi turns on. Power the board through its USB port or the 5 V pin with a clean 5 V supply; be careful with the 3.3 V pin, which bypasses onboard regulation on many boards. |
| Arduino Uno | The Arduino Uno can be powered through USB (5 V) or the barrel jack / VIN pin. The barrel jack feeds an onboard linear regulator that produces 5 V. | The onboard regulator can only supply limited current, and it gets hot when dropping a higher voltage (for example 12 V down to 5 V) while supplying current. Heat means wasted energy and possible thermal shutdown. Powering many sensors, a display, and modules from the Uno's 5 V pin is fine within limits — but motors and servos should not be powered through the board. For projects with motors, give the motors their own power path and share only ground with the Arduino. |
| Raspberry Pi | Raspberry Pi boards are the most power-hungry of the three and the most sensitive to weak supplies. They expect a stable 5 V supply capable of delivering the full current the board may draw, especially during boot and when peripherals are attached. | Use the official Raspberry Pi power supply (or a supply with equivalent specifications) rather than a random phone charger. Undervoltage warnings (the lightning-bolt icon) mean the supply or cable is inadequate — take them seriously. USB peripherals, cameras, and displays add to the current draw; budget for them. |
USB vs barrel jack: which power input to use
| Power input | Notes |
|---|---|
| USB power | Convenient for development and for low-power prototypes. A laptop USB port typically provides limited current, and the actual voltage can sag under load. Fine for an ESP32 or Arduino running sensors and a small display; not a reliable choice for motors, pumps, or GSM modules that draw bursts of current. |
| Barrel jack / VIN | Useful when you have a DC wall adapter (commonly 7–12 V for Arduino barrel jack). The onboard linear regulator wastes the extra voltage as heat, so higher input voltages are less efficient and limit available current. Good for fixed installations near a mains socket; choose an adapter with enough current rating and a safety margin. |
Use USB for development and light loads. Use a properly rated wall adapter (or a separate regulated supply) when the project has motors, relays switching heavy loads, GSM/Wi-Fi bursts, or must run unattended.
Batteries: Li-ion, LiPo, and 18650 cells
For portable or outdoor projects — field sensors, wearable prototypes, robots — batteries are the only option.
Key battery concepts
- Voltage: a single Li-ion/LiPo cell is nominally 3.7 V (4.2 V fully charged, about 3.0–3.3 V empty). Two cells in series give 7.4 V nominal, and so on.
- Capacity (mAh): how much charge the battery holds. Higher mAh means longer runtime for the same load.
- C-rate / maximum discharge current: how fast the battery can safely deliver current. Motors need batteries that can supply their stall current.
- Energy (Wh) = Voltage × Capacity (Ah): useful for comparing batteries of different voltages.
18650 cells
- A common, economical Li-ion cell size used in many student projects and power banks.
- Use cells from a reputable source, and prefer protected cells or a separate protection/BMS board for multi-cell packs.
Never use damaged cells, and never charge Li-ion cells with an improvised charger — use a proper Li-ion charger module (for example TP4056-based boards for single cells).
LiPo packs
- Light and available in many shapes; popular in drones and compact prototypes.
More easily damaged by over-discharge, puncture, or bad charging than cylindrical cells — handle with care and use a proper balance charger for multi-cell packs.
Choosing battery capacity
Estimate average current draw of the whole project, decide the required runtime, then:
Required capacity (mAh) ≈ average current (mA) × runtime (hours) × safety margin
Add a margin (for example 1.3–1.5×) for ageing, cold weather, and underestimated loads. Then check that the battery can also supply the peak current.
Voltage regulators and buck converters
Batteries and adapters rarely give you exactly the voltage your board needs, so regulators bridge the gap.
| Converter | Notes |
|---|---|
| Linear regulators (e.g. AMS1117) | Simple and cheap; many ESP32 boards use an AMS1117-type regulator to make 3.3 V from 5 V. They burn excess voltage as heat: wasted power ≈ (input V − output V) × current. Fine for small voltage drops and modest currents. A poor choice for dropping 12 V to 5 V at high current — the regulator will overheat. |
| Buck converters (step-down switching regulators) | Efficiently convert a higher voltage to a lower one (commonly 85–95% efficient). The right choice when powering 5 V or 3.3 V electronics from a 12 V adapter or a multi-cell battery. Choose a module rated comfortably above your peak current, and set/verify the output voltage with a multimeter before connecting your board. |
| Boost converters (step-up) | Raise a lower voltage to a higher one (for example a single Li-ion cell to 5 V). Useful, but remember that boosting increases the current drawn from the battery — check the battery's discharge rating. |
Which to pick
| Situation | Good choice |
|---|---|
| 5 V USB → 3.3 V ESP32 board | Board's onboard regulator |
| 12 V adapter → 5 V electronics | Buck converter |
| 7.4 V (2-cell) battery → 5 V Arduino | Buck converter |
| Single 3.7 V cell → 5 V sensors | Boost converter (check current) |
| Small drop, low current (5 V → 3.3 V, <500 mA) | Linear regulator like AMS1117 |
Why laptop USB is unreliable for motors
This deserves its own section because it causes so many failed demos:
- Current limits: a laptop USB port can only supply limited current. A DC motor or servo can briefly demand several times its running current at startup (stall current).
- Voltage sag: when the motor demands current the port cannot supply, the voltage drops — and the microcontroller sharing that supply browns out and resets.
- Noise: brushed DC motors generate electrical noise that can disturb the microcontroller.
The fix is simple: power motors from a separate supply (battery pack or wall adapter) sized for the motor's stall current, connect the grounds together, and never route motor current through the microcontroller board. A motor driver (L298N, L293D, TB6612, or a MOSFET module) sits between the logic signal and the motor power.
Power budgeting: a worked example
Suppose your project is an ESP32-Based Smart Irrigation and Soil Monitoring System. The prototype contains:
- ESP32;
- soil-moisture sensor;
- environmental sensor;
- water-level sensor;
- relay or MOSFET driver;
- DC water pump;
- Wi-Fi dashboard.
Step 1: List every load
Write down each component with its supply voltage and current (typical and peak). Use datasheets where possible; measure with a multimeter or USB power meter where not.
Step 2: Separate logic loads from heavy loads
- Logic/sensor loads (ESP32, sensors, relay coil drive): powered from the regulated 5 V/3.3 V rail.
- Heavy loads (pump, valve): powered from their own supply path, switched by the relay/MOSFET.
Step 3: Add headroom
Sum the peak currents on each rail, then add 25–50% headroom. Choose an adapter or battery that comfortably exceeds the total.
Step 4: Check runtime (battery projects)
Runtime (hours) ≈ battery capacity (mAh) ÷ average total current (mA)
If the pump runs intermittently, use the duty cycle: a pump drawing 1 A for 5 minutes per hour averages about 83 mA.
Step 5: Choose the power chain
A sensible chain for this project on mains power: 12 V DC adapter → buck converter to 5 V for ESP32 and sensors; the 12 V rail also feeds the pump through the relay. For a portable version: a suitable battery pack → buck converter to 5 V; pump driven from the battery voltage through the relay with grounds shared.
Working through these five steps on paper before buying anything is the single most useful power habit for a final-year project.
Safety basics
- Polarity: double-check positive and negative before connecting power. Reverse polarity can destroy a board instantly.
- Batteries: never short-circuit cells, never charge Li-ion/LiPo unattended with improvised chargers, and stop using swollen or damaged packs.
- Mains adapters: use certified adapters; keep mains wiring away from low-voltage electronics.
- Fuses: a small fuse on the battery or adapter output is cheap protection against wiring mistakes.
- Heat: if a regulator or adapter is too hot to touch, the design needs fixing, not a bigger heatsink alone.
- Disconnect power before rewiring anything.
Common mistakes students make
Choosing a supply by voltage alone
A "5 V adapter" that can only deliver 500 mA will not run a Raspberry Pi or a motor project. Voltage and current ratings both matter.
Powering motors through the microcontroller
Running a pump or servo from the Arduino 5 V pin or a laptop USB port causes resets. Give motors their own power path.
Using a phone charger for Raspberry Pi
Many phone chargers cannot sustain the voltage under the Pi's load, causing undervoltage warnings and SD-card corruption.
Dropping 12 V to 5 V with a linear regulator at high current
The regulator overheats and shuts down. Use a buck converter instead.
Forgetting peak currents
Wi-Fi transmission bursts, GSM registration, and motor startup currents are much higher than idle current. Size supplies for peaks.
Mixing up grounds
When using separate supplies, the grounds must be connected together (common ground) or signals between boards will not work reliably.
Final power checklist
Before you power the complete prototype:
- List every component with its voltage and peak current.
- Choose a supply (adapter or battery) rated above the total with headroom.
- Use a buck converter for large step-downs; keep linear regulators for small drops and light loads.
- Give motors and pumps their own power path; share ground with the controller.
- Verify output voltages with a multimeter before connecting boards.
- Check polarity twice.
- Confirm battery protection, correct charger, and safe handling.
- Test the full system under realistic load — including Wi-Fi transmission and motor operation — before the demo.
Get power right and everything else in your project becomes easier to build, test, and demonstrate.
