DOL vs Star-Delta Starter Explained

Every student who has started a large motor in a college lab knows the symptom: the tube lights dip, the contactor slams, and the ammeter needle buries itself for a few seconds. That is the starting current of an induction motor — typically 6 to 8 times the full-load current — and choosing how to handle it is one of the first real engineering decisions in any motor-control project. The two classic answers are the Direct-On-Line (DOL) starter and the star-delta starter. This guide explains what each one does, works the starting-current and torque numbers, walks through contactor and overload-relay selection, and shows where soft starters, VFDs and rotor-resistance starters fit instead. For hands-on context, the automatic sequential starter panel shows multi-motor contactor logic in a real build, the single-phase starter panel project covers overload protection on the smaller end, and the rotor-resistance starter project is the alternative you reach for with slip-ring motors.

Why starting current is the whole problem

At the instant of switching on, the rotor is stationary — slip equals 1 — and the motor looks electrically like a transformer with its secondary shorted. Impedance is at its minimum, so current is at its maximum: the locked-rotor current, typically 6–8× the full-load current (FLC), decaying as the motor accelerates and back-EMF builds. Two consequences follow:

Voltage dip. That current through the supply impedance drags the local voltage down — the dimming lights. Utilities limit how much dip you may cause, which is why many Indian DISCOMs restrict DOL starting to motors up to about 5 HP on LT supply (check your local supply authority's rule; the exact limit varies by state and tariff).
Thermal and mechanical stress. The windings, contactor and cables all see the surge; repeated DOL starts on a large motor age everything faster.

Meanwhile starting torque scales with the square of the applied voltage (T ∝ V²). Any method that reduces starting current by reducing voltage also reduces starting torque by the square — the central trade-off of this entire guide.

DOL starter: the simplest answer

A DOL starter connects the motor straight across the full line voltage: 415 V on the terminals from the first millisecond. It contains:

A contactor (electromagnetic switch) rated for motor duty (AC-3),
A thermal overload relay (OLR) for sustained-overcurrent protection,
Start/stop push buttons with a hold-on (seal-in) auxiliary contact so the contactor stays energised after you release Start,
Fuses or an MCCB upstream for short-circuit protection (the OLR does not protect against short circuits).

The control circuit is the classic every electrical student should be able to draw from memory: Stop (NC) in series with Start (NO), the contactor coil, and the OLR's NC trip contact — with the contactor's own NO auxiliary contact wired across Start as the seal-in. Press Start → coil energises → main contacts close (motor runs) and the auxiliary seals the circuit → release Start, it keeps running. Press Stop (or the OLR trips) → coil drops → everything opens.

When DOL is right: small motors (within the utility's DOL limit — commonly up to ~5 HP), infrequent starts, loads that need full starting torque (a loaded conveyor, a compressor), and any application where simplicity and cost dominate. A DOL starter for a 3 HP motor is a contactor, an OLR and two buttons — hard to beat on price or reliability.

When DOL is wrong: large motors on a weak supply (voltage dip complaints, flickering across the installation), frequent starts (the thermal cycling adds up), and any motor above the utility's DOL limit — where you will be asked to fit reduced-voltage starting as a condition of supply.

Star-delta starter: starting gentle, running full

The star-delta starter is reduced-voltage starting done with contactors instead of electronics. The trick uses the motor's own windings:

Start in star: the three windings meet at a common star point. Each winding sees phase voltage = line voltage / √3 ≈ 58% of 415 V ≈ 240 V.
Because current ∝ V and torque ∝ V², starting current and starting torque both fall to (1/√3)² = 1/3 of their DOL values.
Change over to delta once the motor is near full speed (typically ~80% of rated speed, after a timed 5–15 seconds): now each winding sees the full 415 V and the motor runs normally.

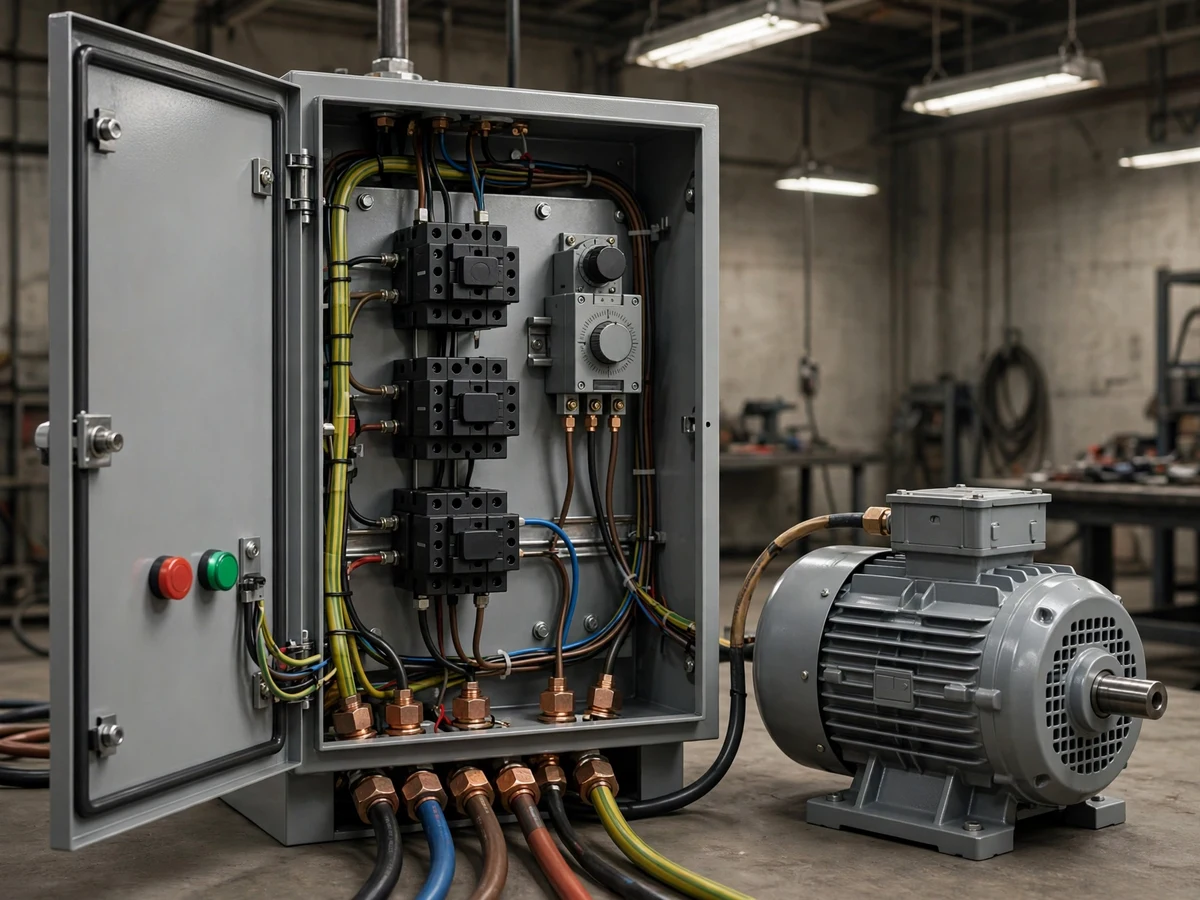

The hardware: three contactors (line/main, star, delta), a star-delta timer, and the OLR — plus the start/stop control. Sequence on pressing Start: line + star contactors close (motor accelerates in star) → timer elapses → star contactor drops, a short pause, delta contactor closes (motor runs in delta). Stop, or any trip, drops everything.

The non-negotiable interlock: the star and delta contactors must never be closed simultaneously — that short-circuits two phases together. Every proper star-delta circuit has both electrical interlocking (each contactor's coil circuit wired through the other's NC auxiliary contact) and, on the contactors themselves, mechanical interlocking. If you are building the panel, verify the interlock by trying to force the fault on the bench with the power off: push both contactors in by hand and confirm the mechanics or wiring forbid it.

The 1/3 torque limit is the real constraint. A star-delta starter cannot start a motor under significant load — a loaded conveyor, a crusher, a pump against a closed valve may stall in star and never reach changeover speed. If the load needs torque to break away, star-delta is the wrong method regardless of current. This is the question to answer before anything else: can this load accelerate on one-third torque? Fans, centrifugal pumps (started against a closed discharge valve) and unloaded compressors usually can; loaded conveyors and positive-displacement pumps usually cannot.

Motor requirement: star-delta needs all six winding ends brought out to terminals (a "delta-rated" 415 V winding set, nameplate like 415Δ). A motor with only three terminals (internally star-connected) cannot be star-delta started.

Open vs closed transition

Open transition (standard): the star contactor opens before the delta contactor closes — a brief supply interruption, typically tens of milliseconds. The motor, still spinning, acts as a generator during the gap; reconnecting out of phase produces a current transient. Fine for most applications.
Closed transition: a resistor (or reactor) bridges the gap so the motor is never disconnected. Used where even the brief transient is unacceptable. More contactors, more cost — beyond student scope to build, worth knowing the term.

Worked numbers: what 1/3 actually means

A 15 HP (11 kW), 415 V motor with FLC ≈ 21 A and locked-rotor current 7× FLC:

Quantity	DOL start	Star-delta start (star phase)
Line current at start	7 × 21 ≈ 147 A	147 / 3 ≈ 49 A
Starting torque	100% (of locked-rotor torque)	33%
Voltage dip on a stiff supply	Noticeable	Roughly one-third the dip

The current reduction is dramatic; the torque reduction is the price. Size the upstream breaker and cables for the DOL-equivalent fault levels regardless — protection sees faults, not just starts.

Selecting the contactors (AC-3 duty, done properly)

Contactors for motor duty are rated AC-3 (making and breaking motor starting current). Selection for our 21 A example:

Line (main) contactor: carries full FLC continuously → rated ≥ FLC. Next standard size up: 25 A AC-3.
Delta contactor: carries phase current = FLC / √3 ≈ 12.1 A → 12–18 A AC-3 (an 18 A frame is the comfortable pick).
Star contactor: carries FLC/√3 only during the few seconds of starting → can be one size smaller than the delta contactor, but many builders use the same frame for spares commonality. It must still be AC-3 rated.

Coil voltage: match your control supply — 230 V AC coils are the student-lab default (one phase + neutral); 24 V DC coils with a control transformer/SMPS are the industrial preference for safety. Keep every coil in the panel the same voltage; mixed coil voltages are a classic panel-building error.

Selecting and setting the overload relay

The thermal OLR protects against sustained overload (not short circuits — that is the MCCB/fuse's job). Rules:

Range: pick an OLR whose adjustment range brackets the motor FLC — for 21 A, a 17–25 A or 20–32 A relay, set to 21 A (the motor's FLC, not the contactor rating).
Trip class: Class 10 (trips within 10 s at 7.2× setting) is the default for standard motors; Class 20 for high-inertia loads needing longer acceleration.
Placement matters for the setting. If the OLR sits in the line (upstream of the star-delta split), it sees the full line current → set to FLC. If it sits in the delta phase circuit (inside the delta loop, common in compact starters), it sees phase current → set to FLC/√3 (≈ 12.1 A here). Wrong placement with the wrong setting is a silent protection failure — know which one your panel uses.
Single-phasing protection: a proper motor-duty OLR includes differential (single-phasing) tripping — losing one phase on a running motor is a fast way to burn windings, and the OLR is the defence.
Test it: the OLR's test/stop button should drop the contactor. Verify on commissioning day, not after the first real overload.

Putting it together: a complete selection example

Motor: 10 HP, 415 V, 3-phase, FLC 14.5 A, six terminals, 415Δ windings. DISCOM DOL limit 5 HP → reduced-voltage starting required. Load: centrifugal pump (starts unloaded) → star-delta is suitable.

Component	Selection
Line contactor	18 A AC-3, 230 V coil
Delta contactor	12 A AC-3 (≥ 14.5/√3 = 8.4 A)
Star contactor	9–12 A AC-3
OLR (in line)	12–18 A range, set at 14.5 A, Class 10
Star-delta timer	0–30 s electronic timer, set ~8 s (adjust to reach ~80% speed)
Upstream MCCB	32 A, motor-duty (magnetic trip set above starting current)
Power cable	4 sq mm copper, 4-core + earth
Control	Start/Stop + E-stop, run/trip lamps, 230 V control

Commissioning sequence: megger the motor (insulation test) before first start; verify phase sequence; run in star with the pump unloaded and time the acceleration — set the timer a couple of seconds beyond the measured time to reach speed; verify changeover is clean (no bang from the contactors, no dip complaints); measure running current per phase and confirm balance within a few percent.

Control circuit sketch (what the wiring does)

Power circuit: MCCB → line contactor → OLR → motor terminals U1/V1/W1; delta contactor links U1-W2, V1-U2, W1-V2; star contactor shorts U2/V2/W2. Control circuit (230 V): E-stop (NC) → Stop (NC) → Start (NO, with seal-in auxiliary across it) → OLR trip contact (NC) → timer coil + line contactor coil in parallel; timer's delayed contact drives the star/delta changeover logic with the interlock auxiliaries in series with each coil. Draw it on paper before touching a wire — every panel fault I have seen in student builds traced to wiring done before the drawing existed.

For an automated demo version driven by a microcontroller (timing, sequencing and status on a display), the logic below captures the contactor sequencing with interlocks. This drives relay modules that switch contactor coils — the contactors still do the 415 V work, and the whole assembly needs proper isolation, fusing and supervision:

const int LINE = 2, STAR = 3, DELTA = 4;
const int BTN_START = 5, BTN_STOP = 6;

void setup() {
  pinMode(LINE, OUTPUT); pinMode(STAR, OUTPUT); pinMode(DELTA, OUTPUT);
  pinMode(BTN_START, INPUT_PULLUP); pinMode(BTN_STOP, INPUT_PULLUP);
  allOff();
}

void allOff() {
  digitalWrite(LINE, LOW); digitalWrite(STAR, LOW); digitalWrite(DELTA, LOW);
}

void loop() {
  if (digitalRead(BTN_START) == LOW) {          // start pressed
    digitalWrite(LINE, HIGH);
    digitalWrite(STAR, HIGH);                    // star phase: accelerate
    delay(8000);                                 // star time - tune to the motor
    digitalWrite(STAR, LOW);                     // drop star FIRST
    delay(100);                                  // interlock pause
    digitalWrite(DELTA, HIGH);                    // then engage delta
    while (digitalRead(BTN_STOP) == HIGH) { delay(50); }  // run until stop
    allOff();
  }
  if (digitalRead(BTN_STOP) == LOW) allOff();
}

The 100 ms pause between dropping star and engaging delta is the software version of the interlock — never command both simultaneously. Tune the 8 s star time to the measured acceleration of your motor.

When neither DOL nor star-delta is the answer

Method	Starting current	Starting torque	Cost	Use when
DOL	6–8× FLC	100%	Lowest	Small motors, full torque needed, utility permits
Star-delta	~2–2.7× FLC	~33%	Low	Medium motors, light starting load, 6-terminal motor
Autotransformer	Adjustable (taps)	∝ (tap)²	Medium-high	Large motors needing adjustable reduced-voltage start
Soft starter	3–4×, ramped	Reduced, ramped	Medium	Smooth starts, pump/valve systems, frequent starts
Rotor-resistance (slip-ring motors)	Low, controlled	High (the exception)	Medium	Slip-ring motors needing high starting torque at low current — see the rotor-resistance starter project
VFD	Limited to ~1.5× by the drive	Full, controllable	Highest	Speed control needed, or the gentlest electrical start — see the VFD-based crane control panel project

Two rows deserve emphasis. The rotor-resistance starter is the only reduced-current method that increases starting torque — it works by adding resistance to the rotor circuit of a slip-ring motor, and it is the correct answer wherever the exam or the application pairs "high starting torque" with "limited starting current". And the VFD makes the whole starter debate moot when speed control is required — but at several times the cost of a star-delta panel, which is why the contactor methods refuse to die.

Troubleshooting table

Symptom	Likely cause	Check
Motor hums but does not start (DOL)	Single-phasing: blown fuse or loose terminal	Check all three phases at the motor terminals under load
Star-delta never changes over	Timer faulty or mis-set; timer coil not energised	Verify timer timing with a stopwatch; check its supply
Loud bang / flash at changeover	Star and delta contactors overlapped — interlock failure	Inspect electrical + mechanical interlocks before re-energising
OLR trips during normal running	OLR set below FLC; actual overload; single-phasing	Verify setting = FLC (or FLC/√3 in delta placement); measure phase currents
OLR trips only in star, motor stalls	Load too heavy for 1/3 torque	Wrong starting method for this load — reconsider
Contactor chatters on start	Low coil voltage (long control runs, weak supply) or faulty hold-on contact	Measure coil voltage during start; inspect auxiliary contacts
MCCB trips instantly on start	Magnetic trip set below starting current; or a genuine short	Coordinate the magnetic setting above the starting transient; megger the motor

Safety essentials

415 V three-phase deserves supervision. Panel building and first energisation should be overseen by lab staff. Lockout-tagout before any work inside the panel.
Short-circuit protection is separate from overload protection. The OLR will not clear a short circuit; the MCCB/fuses must be sized and set to do it.
Earth everything: panel body, motor frame, cable armour — bonded to the installation earth and verified.
Cable glands and shrouding: no exposed live conductors, no cables entering through ragged holes. Exhibition-week panels get touched by visitors; build like it.
Test the trips: OLR test button, E-stop, and the interlock logic are verified on commissioning day and re-verified after any modification.

Reading a contactor datasheet (the numbers that matter)

A contactor datasheet is dense, but a student needs only five lines:

Ie (rated operational current) at AC-3 — the current it can switch for motor duty at a stated voltage (e.g. 18 A at 415 V AC-3). This is the number you select against — not the bigger AC-1 (resistive-load) rating printed more prominently on some datasheets.
Rated operational voltage (Ue) — typically 690 V for industrial contactors; fine for 415 V systems.
Mechanical/electrical life — millions of no-load operations, hundreds of thousands under AC-3. Frequent jogging duty eats electrical life; size up if the application jogs.
Coil voltage and consumption — match the coil to your control supply and budget the coil burden in the control transformer's sizing (small, but real across several contactors plus lamps).
Auxiliary contacts — count the built-in NO/NC auxiliaries; the seal-in and interlock logic needs them, and add-on auxiliary blocks exist when the built-ins run out.

Buy contactors from established makes (L&T, Schneider, Siemens, ABB, C&S in the Indian market) — the contact material and spring calibration in a cheap no-name contactor are exactly where the cost was cut, and welded contacts on a motor starter are a safety failure, not an inconvenience.

Commissioning-day checklist

Megger the motor windings to earth and between phases before first start (500 V megger; expect tens to hundreds of MΩ on a healthy motor).
Verify phase sequence at the panel incomer.
With power off, push each contactor manually and confirm the star–delta interlock physically prevents simultaneous closure.
Energise control only: press Start, watch the contactor sequence and timer changeover on the bench before the motor is connected.
First run uncoupled (or unloaded): time the star acceleration, set the timer, verify clean changeover.
Measure running current on all three phases — balanced within a few percent.
Press the OLR test button and the E-stop; confirm the contactor drops every time.
Torque-check every power terminal after the first thermal cycle (heat loosens terminals; the re-torque catches it).

The short version

DOL is full voltage, full current (6–8× FLC), full torque — right for small motors the utility permits. Star-delta starts at 1/3 voltage per winding, giving 1/3 current and 1/3 torque, then changes to delta for full-speed running — right for medium motors with light starting loads and six-terminal windings. Select contactors at AC-3 for the current each actually carries (line ≥ FLC, delta/star ≥ FLC/√3), set the OLR to the current at its location in the circuit, interlock star against delta both electrically and mechanically, and protect short circuits with the MCCB, not the OLR. When the load needs torque to break away, or speed must vary, step up to rotor-resistance starting, soft starters or a VFD — the Electrical branch hub has builds across all of them.
