TinyML Keyword Spotting on Microcontroller

Smart speakers detect wake words locally, but students rarely get to build that pipeline themselves — the full chain from dataset to a model running inside a microcontroller's kilobytes of RAM. Keyword spotting is the canonical TinyML problem: a small CNN listens to one-second audio clips and classifies them into a fixed vocabulary plus silence and unknown. This project builds that chain end to end: the Google Speech Commands dataset (35 words, background noise, 12-command standard subset) is turned into MFCC features, a depthwise-separable CNN is trained in TensorFlow/Keras, the model is quantized to int8 with TensorFlow Lite and deployed to a mic-equipped microcontroller (e.g. ESP32-S3 or Arduino Nano 33 BLE Sense). The web dashboard connects over serial to show live detection events, per-keyword confidence bars, inference-time statistics and the confusion matrix from the evaluation notebook. Because the model runs entirely on-device, there is no cloud dependency and no audio leaves the hardware — a genuine edge-AI story for the report and viva.

1. One-second clips from the Speech Commands dataset are converted to MFCC spectrograms; the 12-command subset defines the classification task.
2. A depthwise-separable CNN is trained on the training split, validated on the validation split, and evaluated on the test split — accuracy, F1 and confusion matrix come from this run.
3. The trained model is quantized to int8 with TensorFlow Lite and its accuracy is re-checked to measure the quantization cost.
4. The int8 model is compiled into the MCU firmware; the microphone streams audio, the firmware extracts features on-device and runs inference per window.
5. When a keyword's confidence crosses the threshold, the MCU signals detection — an LED/buzzer fires and the event streams to the dashboard over serial.
6. The dashboard renders the detection event, confidence bars and rolling latency statistics from the MCU's own timing measurements.

Tech stack:

• Python, TensorFlow/Keras, librosa (MFCC), NumPy
• Google Speech Commands dataset (12-command subset)
• TensorFlow Lite post-training int8 quantization
• ESP32-S3 / Arduino Nano 33 BLE Sense (mic-equipped MCU)
• Arduino/ESP-IDF firmware with TFLite Micro
• Web serial dashboard (HTML/CSS/JS)

• [Speech Commands training pipeline] MFCC feature extraction, DS-CNN training on the 12-command subset, train/valid/test splits — the full notebook runs on the buyer's machine.
• [Int8 quantization] Post-training quantization with TensorFlow Lite shrinks the model to fit MCU flash and RAM; the notebook compares float vs int8 accuracy.
• [On-device inference] The quantized model runs entirely on the microcontroller — wake-word detection works with no internet and no audio leaves the device.

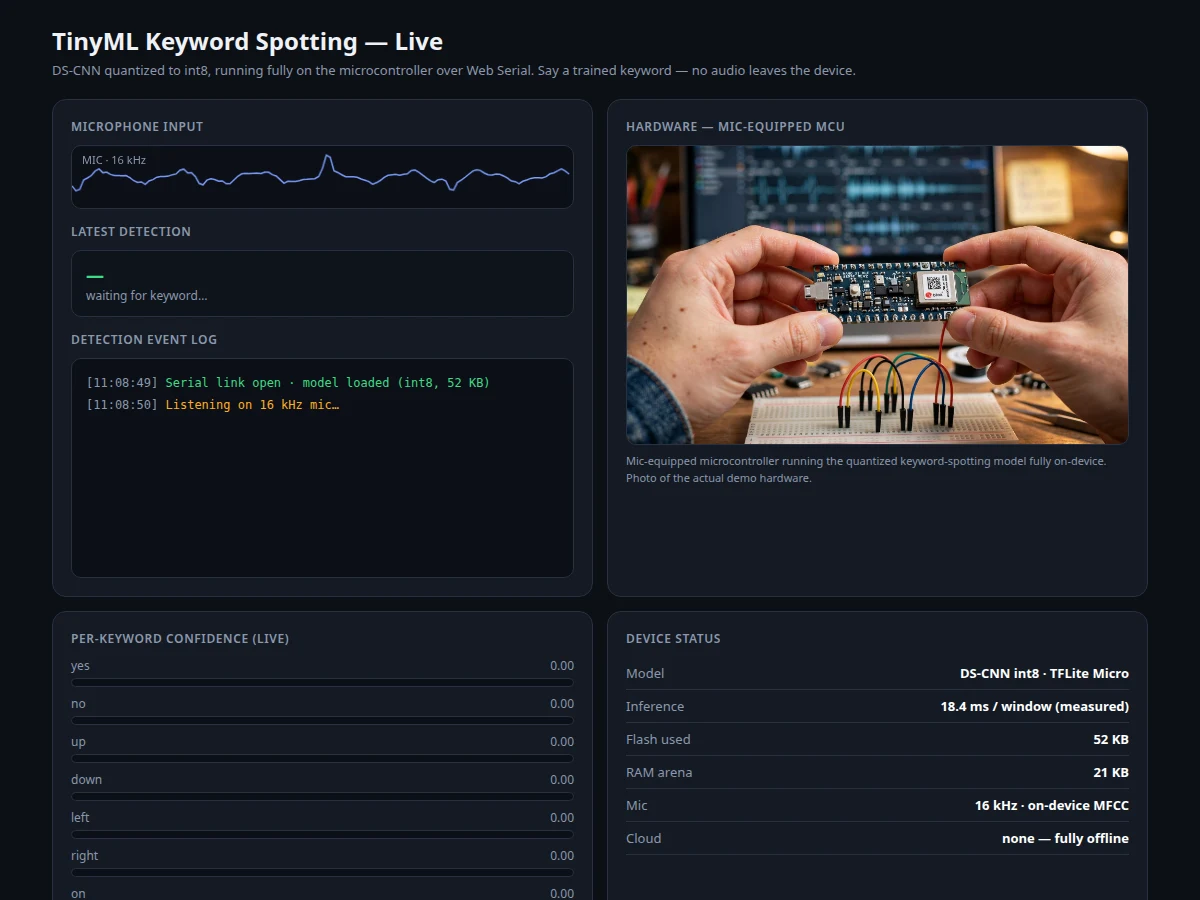

• [Live detection dashboard] Web serial stream of detection events with per-keyword confidence bars and a rolling event log.
• [Latency and memory stats] Inference time per window and model RAM/flash footprint displayed from the MCU's own measurements.
• [Confusion-matrix evaluation] The notebook computes accuracy, per-class precision/recall and the confusion matrix on the official test split — never pre-claimed.
• [Custom keyword extension] Documented procedure for adding your own keyword recordings to the training set and retraining.
• [Noise-robustness tests] Background-noise augmentation and a documented test protocol with the noise files included.

• Complete training notebook (preprocessing, MFCC, DS-CNN training, quantization, evaluation)
• Quantized TFLite model from the included training run
• MCU firmware with on-device inference and serial protocol
• Web dashboard (live detections, confidence bars, latency stats)
• Noise-augmentation test files and test protocol
• Project report PDF (TinyML background, model design, evaluation results)
• PPT presentation for final review
• Viva Q&A preparation document (CNNs, quantization, MFCC, edge AI, evaluation)

• The model recognizes the 12 trained commands (plus silence/unknown) — it is a fixed-vocabulary spotter, not a speech recognizer, and unseen words fall into "unknown".
• Accuracy is measured by the student's own training run on the official test split; the report documents those numbers. A design target of roughly 90%+ test accuracy on the 12-command subset is typical for this architecture, but final performance depends on the training run and is never pre-claimed.
• Performance degrades in loud or unfamiliar noise and with strong accents far from the dataset's speaker distribution; the noise-robustness tests document this openly.
• Int8 quantization trades a small accuracy cost for MCU fit; the notebook measures this cost so it is visible, not hidden.
• On-device RAM limits how large the model can grow — adding many custom keywords needs the documented retraining procedure and may exceed the MCU's memory.
