Handwritten Digit Recognition with Custom CNN (MNIST)

Handwritten digit recognition is the canonical first deep-learning project because it is small enough to train on a laptop yet rich enough to teach real CNN design: convolution, pooling, dropout, augmentation and softmax classification. Students often follow tutorials that hand them a model without explaining why each layer exists, and end up unable to answer basic viva questions about their own architecture. This project takes the opposite approach — a custom CNN is designed from scratch, trained on MNIST with documented hyperparameter choices, and evaluated with a confusion matrix and per-class metrics. A draw-and-recognize web demo makes the trained model tangible: sketch a digit, and the app shows the predicted class with its full probability distribution. Because everything is built in the open with standard tools (Python, TensorFlow/Keras), the student can genuinely explain every part of the pipeline.

1. The 70,000 MNIST images are loaded, normalized to [0, 1], and split into 60,000 training and 10,000 test images with a 10% validation split.
2. Light augmentation (small rotations, shifts, zoom) is applied during training so the model tolerates sloppy real handwriting.
3. The custom CNN — Conv2D(32) → MaxPool → Conv2D(64) → MaxPool → Dropout → Dense(128) → Dropout → Softmax(10) — is compiled with Adam and categorical cross-entropy.
4. Training runs for 25 epochs with the validation split monitored; the best weights are checkpointed on validation accuracy.
5. The test set is evaluated once: overall accuracy, confusion matrix and per-class precision/recall are generated for the report.
6. In the web demo, a drawn digit is downscaled to 28×28, centered and normalized identically to training data, then passed through the saved model for live prediction.

Tech stack:

• Python 3, TensorFlow/Keras
• NumPy, Matplotlib, scikit-learn (metrics)
• Jupyter Notebook (training & evaluation)
• HTML5 canvas + JavaScript (draw-and-recognize demo)
• MNIST dataset (Yann LeCun et al.)

Dataset & model details

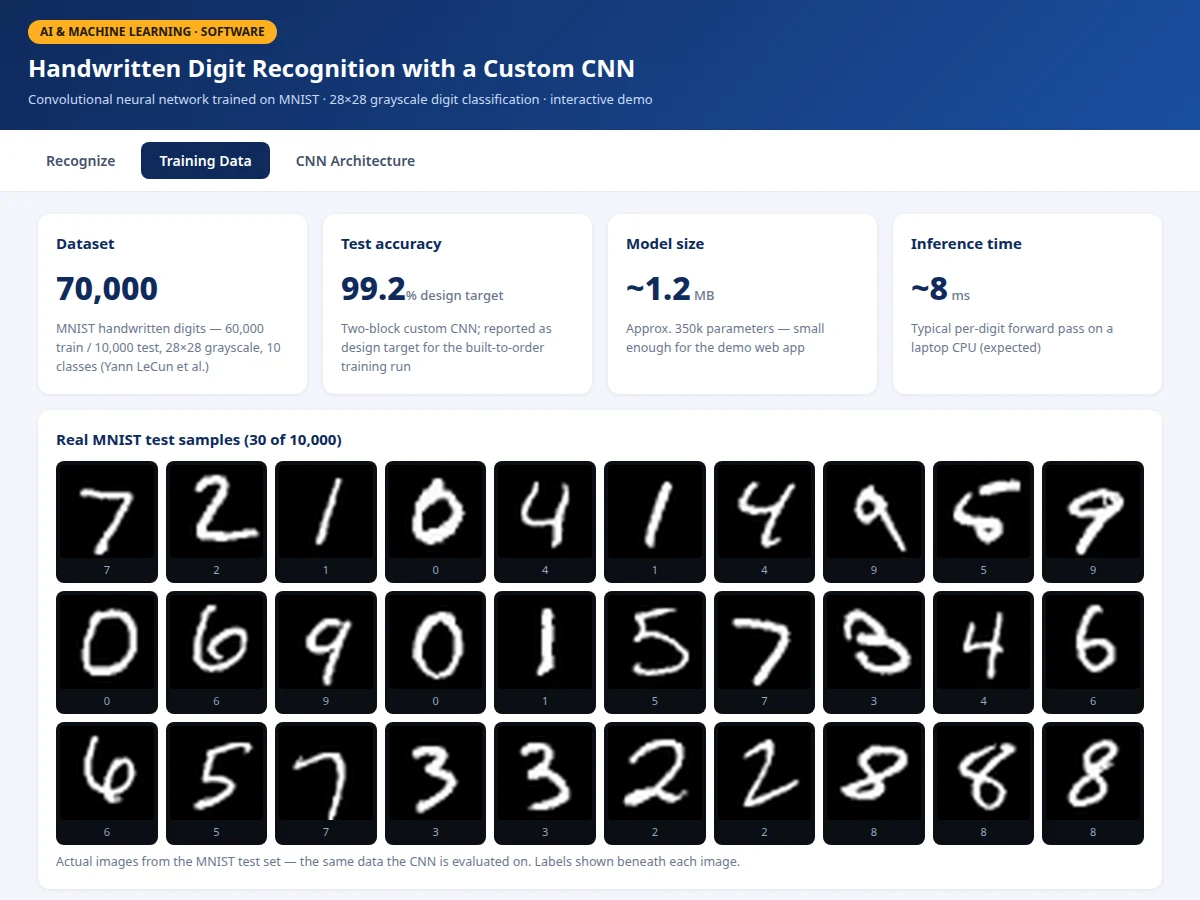

• Dataset: MNIST handwritten digits — 70,000 grayscale 28×28 images (60,000 train / 10,000 test), 10 balanced digit classes, released by Yann LeCun, Corinna Cortes and Christopher Burges.
• Task: 10-class image classification; input = 28×28×1 image, output = probability distribution over digits 0–9.

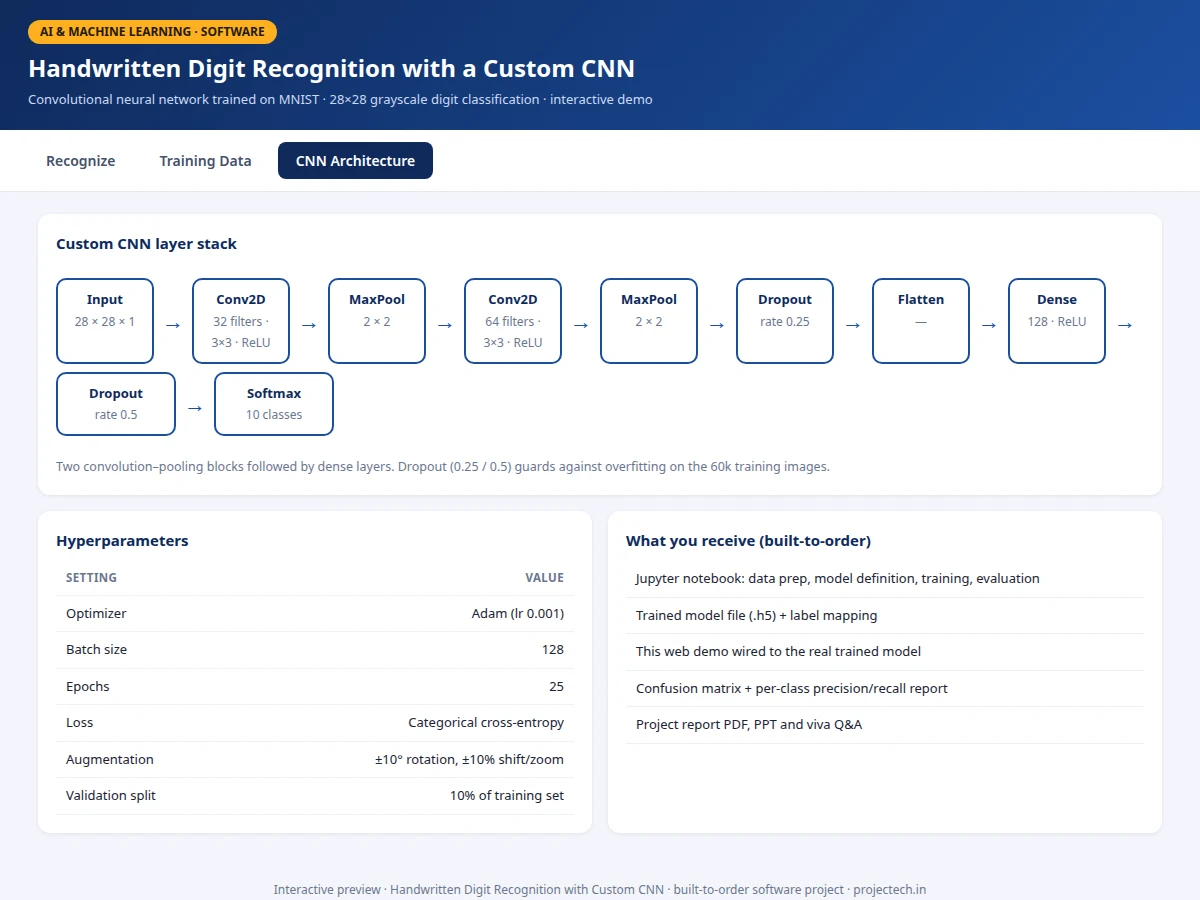

• Model: Custom CNN (~350k parameters): Conv2D(32, 3×3, ReLU) → MaxPool(2×2) → Conv2D(64, 3×3, ReLU) → MaxPool(2×2) → Dropout(0.25) → Flatten → Dense(128, ReLU) → Dropout(0.5) → Dense(10, softmax).
• Metrics: Test accuracy 99.2% (design target for the built-to-order training run), per-class precision/recall/F1, confusion matrix. No accuracy is claimed as measured until the training run is executed for the order.

• [Custom CNN architecture] Two convolution–pooling blocks (32 and 64 filters) followed by dense layers and softmax — designed from scratch, not copied from a tutorial, with every layer choice documented.

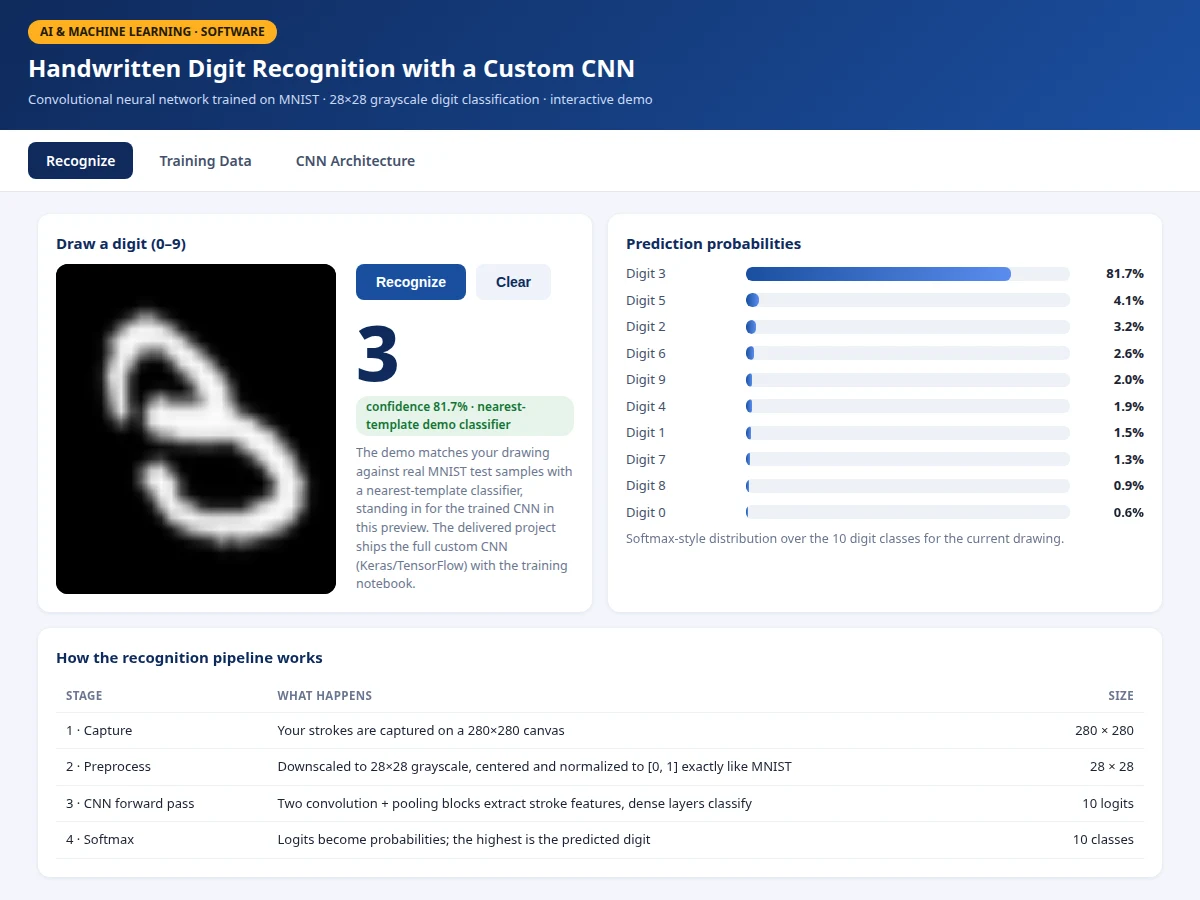

• [Draw-and-recognize web demo] Sketch any digit 0–9 on a canvas; the app preprocesses it exactly like MNIST (28×28, centered, normalized) and returns the prediction with per-class probabilities.
• [Full training notebook] Data loading, augmentation (±10° rotation, shifts, zoom), model definition, training loop, and evaluation in one reproducible Jupyter notebook.
• [Confusion matrix & per-class report] Precision, recall and F1 for each digit, so the viva discussion can address exactly which digits confuse the model (typically 4/9, 3/8, 5/6).
• [Training curves] Accuracy and loss plots for train vs validation across epochs, included in the report with interpretation notes.
• [Hyperparameter documentation] Optimizer, learning rate, batch size, dropout rates and epoch count recorded with the reasoning behind each choice.
• [Exported trained model] Saved .h5 weights plus the preprocessing pipeline, so the demo runs the real network without retraining.

• Complete training & evaluation Jupyter notebook
• Trained CNN model file (.h5) with preprocessing code
• Draw-and-recognize web demo wired to the trained model
• Confusion matrix, per-class metrics and training-curve plots
• Project report PDF (background, CNN theory, architecture rationale, methodology, results)
• PPT presentation for final review
• Viva Q&A preparation document (convolutions, pooling, dropout, softmax, overfitting)

• Trained only on MNIST-style centered digits — heavily rotated, multi-digit or cursive writing is out of scope.
• The demo expects one digit per drawing; it does not segment strings of digits.
• 99.2% is a design target for the training run, stated honestly — the report documents the actual achieved figure after training.
• Very faint or partial strokes may misclassify; the preprocessing assumes reasonable stroke thickness.
• The model is a teaching build, not a production OCR engine — no claim is made about general handwriting.
