Your project needs to lift water 3 metres into a tank, and you bought the biggest, cheapest pump you could find. It screams, moves barely a trickle, and trips the power supply. Or the opposite: a tiny pump that was "enough on paper" pushes nothing at all because the pipe run is longer than you assumed. Pumps are one of the most commonly mis-selected components in student projects — irrigation rigs, fountains, cooling loops, water-level controllers — and the fix is about thirty minutes of honest arithmetic.

Pump selection is not about brand or wattage on the box. It is about matching the pump's capability to two numbers your system demands: flow (how much water per unit time) and head (how much height and resistance the pump must overcome). This guide shows you how to find both, read a pump curve, avoid cavitation, and size the motor — with a worked example you can copy for your own project.

The two numbers: flow and head

Flow (Q) is volume per unit time — litres per minute (LPM) or litres per second. Your application decides it: a drip-irrigation zone might need 8 LPM, a decorative fountain 20–40 LPM, a cooling loop whatever removes the heat. If you cannot state the required flow, you are not ready to select a pump. Estimate it from the application first — a bucket-and-stopwatch test on a similar setup beats a guess.

Head (H) is the total resistance the pump must overcome, expressed as a height of water column in metres. Head has three parts:

1. Static head — the vertical lift from the water surface (not the pump!) to the discharge point. A pump sitting 1 m above the sump, discharging 2 m above the pump, has 3 m of static head. Measure it with a tape; students consistently underestimate it.
2. Friction head — the resistance of pipes, bends, valves, and fittings. Long thin pipes and lots of elbows add metres of effective head. Keep pipes short and fat where you can; every 90° elbow behaves like extra pipe length.
3. Pressure head — if the discharge goes into a pressurized vessel or through a nozzle/sprinkler that needs pressure to work. A sprinkler needing 1 bar adds roughly 10 m of head.

Total head = static + friction + pressure. The pump must deliver your required flow at that total head. A pump rated "40 LPM max" delivers that only at near-zero head — at your real head it delivers far less. This single misunderstanding causes most student pump failures.

Centrifugal vs positive displacement: pick the right family

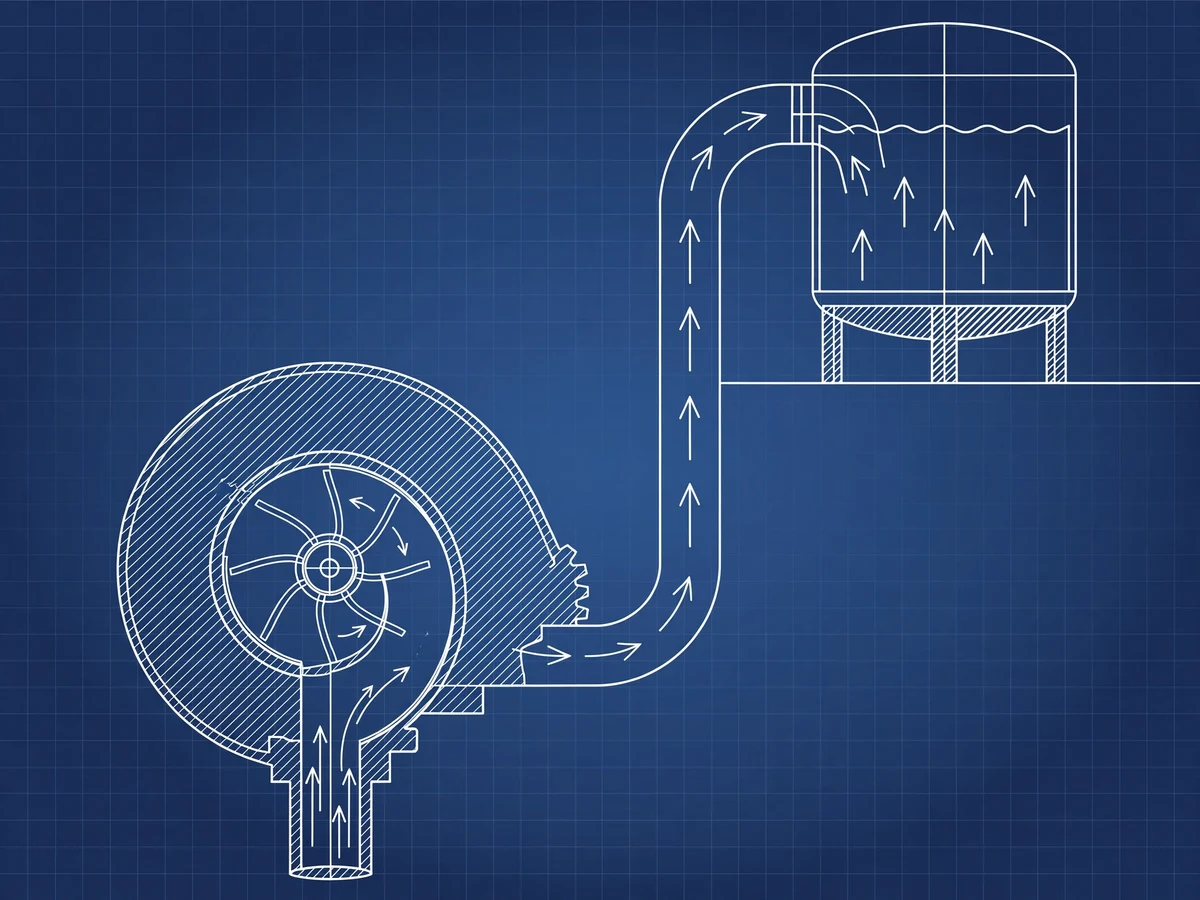

Centrifugal pumps (the common small submersible, fountain, and aquarium pumps) use a spinning impeller. Flow falls as head rises; block the outlet and flow drops toward zero while the pump just churns. They are cheap, simple, and right for water transfer, fountains, irrigation, and cooling loops — nearly every student application.

Positive displacement pumps (peristaltic, diaphragm, gear, piston) push a fixed volume per stroke or revolution. Flow is nearly constant regardless of head, and blocking the outlet spikes pressure dangerously. Use them for dosing (hydroponics nutrients, chemical dosing), where precise small flows matter more than raw volume.

For water-moving student projects, you almost always want centrifugal. The rest of this guide assumes centrifugal.

Reading a pump curve

Every proper pump datasheet carries a pump curve: a graph of head (vertical axis) against flow (horizontal axis). Read it like this:

• The curve slopes downward: maximum head at zero flow (called shut-off head), maximum flow at zero head.
• Your system's demand is also a curve — the system curve — rising with flow, because friction grows with flow. It starts at your static head on the vertical axis.
• Where the two curves cross is the duty point: the flow your system will actually get with that pump.

Mark on the curve the BEP (best efficiency point) — the flow where the pump is most efficient, usually marked on the datasheet. Running near BEP means quiet operation, low power draw, and long life. Running far from it (throttled or oversized) means noise, vibration, and wasted electricity. Aim to land your duty point within roughly 70–110% of BEP flow.

Small cheap pumps often ship with no curve at all — just "max head 5 m, max flow 40 LPM." Treat the midpoint skeptically: assume you will get about 60–70% of max flow at half the max head, and test with a bucket and stopwatch before finalizing the design.

Cavitation and NPSH: the killer you cannot hear until it is too late

If the pressure at the pump inlet drops too low, water vaporizes into bubbles inside the pump; the bubbles then collapse violently against the impeller. That is cavitation — it sounds like gravel rattling inside the pump, and it eats impellers. The datasheet guards against it with NPSH required (NPSHr): the minimum inlet pressure the pump needs, in metres.

Your installation provides NPSH available (NPSHa), roughly: atmospheric pressure (about 10.3 m of water at sea level) minus suction lift (how far above the water surface the pump sits) minus suction-pipe friction. The rule is simple: NPSHa must exceed NPSHr with margin — 1 m of margin is a comfortable student target.

Practical consequences:

• Put the pump below the water level when you can (flooded suction). A submersible pump sitting in the sump has excellent NPSHa — one reason submersibles are forgiving for students.
• Keep suction pipes short, fat, and free of high points. Long thin suction lines are cavitation invitations.
• Never throttle the suction valve to control flow — throttle the discharge side instead.

Sizing the motor: the power formula

The hydraulic power the water receives is:

P = ρ × g × Q × H / η

where ρ is water density (1000 kg/m³), g is 9.81 m/s², Q is flow in m³/s, H is total head in metres, and η is pump efficiency (use 0.4–0.6 for small pumps if the datasheet is silent).

Worked example — a courtyard fountain project:

• Required flow: 20 LPM = 0.000333 m³/s
• Static head: 2.5 m lift to the nozzle
• Friction + nozzle pressure: estimate 1.5 m
• Total head H = 4 m, efficiency η = 0.5
• P = 1000 × 9.81 × 0.000333 × 4 / 0.5 ≈ 26 W

So the water needs about 26 W. Pick a pump rated comfortably above that — a 60 W pump gives margin for your friction estimate being optimistic (it usually is). Then check the pump's curve: at 4 m head, does it still deliver at least 20 LPM? If yes, buy it. This two-step — power sanity check, then curve check — is the whole selection method.

The selection recipe, in order

1. Fix the flow from the application (measure or estimate; bucket-and-stopwatch beats guessing).
2. Measure static head with a tape, water surface to discharge point.
3. Estimate friction + pressure head honestly — count elbows and valves, note nozzle pressure needs.
4. Shortlist pumps whose curve passes through your (flow, head) point, aiming near BEP.
5. Check NPSH: NPSHa > NPSHr with ~1 m margin; prefer flooded suction.
6. Verify power: run the P = ρgQH/η check so the motor is not absurdly over or under-sized.
7. Test before building around it: run the pump into a bucket, time it, confirm the flow at your actual pipe setup.

Mistakes that kill student pump projects

• Buying on "max" ratings. Max flow happens at zero head; max head happens at zero flow. Your operating point is neither.
• Undersized suction piping. A 12 mm pipe on the suction of a pump that wants 25 mm starves the inlet and invites cavitation.
• Dead-heading. Running a centrifugal pump against a fully closed valve for more than a minute or two overheats the trapped water. Always provide a minimum-flow path.
• Dry running. Most small pumps are water-cooled and water-lubricated — seconds of dry running can wreck seals and bearings. Your water-level controller project should interlock the pump against low sump level.
• Ignoring the duty cycle. A "60 W" fountain pump may be rated for intermittent duty. Running it 24×7 in a cooling loop needs a continuous-duty rating — check the datasheet.

Frequently asked questions

Submersible or surface pump for my project?
Submersible if the pump can sit in the water — flooded suction, quiet, no priming, forgiving NPSH. Surface (self-priming) only when the pump must stay dry, and then keep the suction lift under 3–4 m and the suction line short.

Can I control pump speed with a dimmer or PWM?
Mains AC pumps: no — use a proper VFD or a multi-tap pump. DC pumps (12/24 V): yes, PWM on the supply works and is the standard way to trim flow. Never PWM the mains side of an AC pump.

Why does my pump deliver less than the rating?
Almost always head: the real static + friction head exceeds what you assumed. Measure the actual vertical lift, count the elbows, and check for a partially closed valve or kinked pipe before blaming the pump.

How do I measure flow without a flow meter?
Bucket and stopwatch: time how long the discharge takes to fill a known volume. Three runs, average them. It is accurate enough for every student project.

Peristaltic pump for a hydroponics dosing project — overkill?
No, it is exactly right: peristaltic pumps give precise, repeatable small doses, the liquid touches only the tube (no contamination), and they self-prime. That is what the family is for.

Limitations

• The friction-head estimates here are rules of thumb; precise pipe-friction calculation uses the Darcy-Weisbach equation with your pipe's roughness and Reynolds number — worth doing if your head budget is tight.
• Small-pump efficiency (η) is genuinely hard to know without a datasheet curve; the 0.4–0.6 band is a planning estimate, not a specification.
• This guide covers clean-water centrifugal selection. Slurries, viscous fluids, and food-grade or chemical duties change the selection rules and the pump family entirely.
