Reading a Motor Nameplate: Decoding the Codes Every Student Should Know

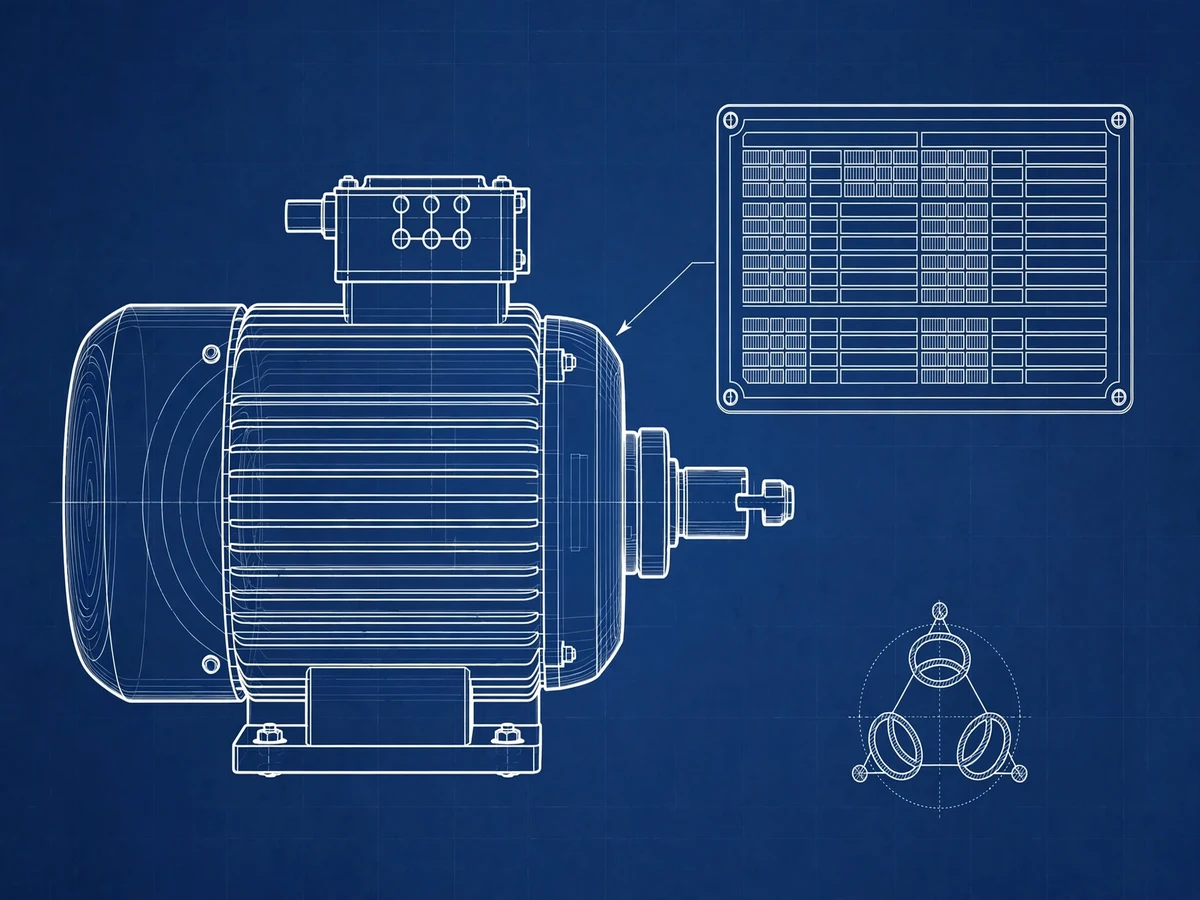

Every induction motor ships with a small metal plate riveted to its frame, covered in abbreviations: kW, cos phi, IP55, S1, Cl.F, IE3, 400V delta / 690V star. Most students wire the motor, set the overload relay to a guess, and hope. The nameplate is the motor's datasheet in miniature — every number on it answers a question you will be asked in the lab, in a viva, or when something trips at 2 a.m. before a demo.
This guide decodes each field, shows how the numbers connect to real decisions (starter type, cable size, protection setting), and works through one complete example nameplate.
Why the nameplate is the first thing you read
Before the nameplate, you have a motor-shaped unknown. After it, you know its rated power, the voltage it expects, how much current it draws at full load, how fast it spins, how hard you may run it and for how long, how well it is sealed against dust and water, and how hot its insulation is allowed to get. Those seven facts determine the contactor rating, the overload relay setting, the cable cross-section, whether a star-delta starter is even legal, and whether the motor will survive your duty cycle. Reading it takes two minutes; skipping it causes most student motor failures.
Power: kW, HP and what "rated" means
The headline number is the rated mechanical output power — what the shaft delivers at full load, not what the motor draws electrically. A "3 kW" motor delivers 3 kW of mechanical power; its electrical input is higher, divided by efficiency.
- kW is the SI unit you will see on Indian-market motors.
- HP (horsepower) still appears on older plates and some imports: 1 HP = 0.746 kW, so a 5 HP motor is about 3.7 kW.
- Rated means continuous duty at the stated voltage and frequency. Running beyond rated power is overloading the motor, even if it "seems fine" — the insulation ages far faster above its temperature class, and the overload relay should trip before damage.
Decision: the contactor and cable are sized from the full-load current, not the power — but the kW figure is what you quote when ordering a replacement or matching a load.
Voltage, current and the delta/star connection
A typical three-phase plate reads something like 400 V Δ / 690 V Y, 6.1 A / 3.5 A. This is one motor with two legal connections:
- Delta (Δ) at 400 V — each winding sees the full 400 V line voltage; draws the higher current (6.1 A here).
- Star (Y) at 690 V — each winding sees 690 / √3 ≈ 400 V; draws the lower current (3.5 A).
On a 400 V three-phase supply — the standard Indian industrial/LT supply — you connect this motor in delta. The star connection is for 690 V systems, and it is also the configuration used during the start phase of a star-delta starter (which is exactly why star-delta starting only suits motors rated 400 V Δ).
Full-load current (FLA) is the anchor number for protection: the overload relay is set to the FLA of the connection you actually wired. Wire it in delta, set the relay near 6.1 A; set it to 3.5 A on a delta-wired motor and it will nuisance-trip at half load, and the motor is unprotected against real overloads.
Decision: match the connection to your supply voltage first, then size the starter, cable and overload from that connection's current.
Speed: rpm, poles and slip
The plate gives a rated speed like 1440 rpm at 50 Hz. The synchronous speed of the rotating field is fixed by the pole count:
| Poles | Synchronous speed at 50 Hz | Typical rated speed |
|---|---|---|
| 2 | 3000 rpm | ~2850–2950 rpm |
| 4 | 1500 rpm | ~1400–1470 rpm |
| 6 | 1000 rpm | ~940–980 rpm |
| 8 | 750 rpm | ~700–730 rpm |
The difference between synchronous and rated speed is slip — the small lag that lets the rotor actually develop torque. A 4-pole motor rated 1440 rpm has (1500 − 1440) / 1500 = 4% slip, perfectly normal.
Decision: speed tells you the pole count, which matters when you select a VFD or design a belt/gear reduction. If a "4-pole" motor plate reads 1440 rpm and your tachometer shows 1480 at no load, that is normal — no-load slip is smaller, not a fault.
Frequency and voltage tolerance
50 Hz is the Indian grid standard; a 50 Hz motor run on 60 Hz spins 20% faster and draws different magnetising current — do not mix them without checking. Most plates also imply the standard tolerance: ±5% voltage variation is generally acceptable. Sustained undervoltage is the silent killer — current rises to hold power output, heating follows current squared, and the overload relay may not react fast enough to save the insulation.
Duty: S1, S2, S3 and why they matter
The duty type (IEC 60034-1) describes the load pattern the motor is rated for:
- S1 — continuous duty. Run at rated load indefinitely. The default for most general-purpose motors; if the plate says nothing about duty, assume S1.
- S2 — short-time duty, with a stated duration (e.g. S2 30 min): rated load for 30 minutes from cold, then rest until cool.
- S3 — intermittent periodic duty, with a cyclic duration factor (e.g. S3 40%): repeating cycles of loaded run and rest, where 40% means 4 minutes loaded per 10-minute cycle. Common on crane, hoist and press motors.
Decision: an S3-40% motor is not a continuous-duty motor. Running it S1 at rated load overheats it. Match the duty to your application's actual cycle — a conveyor that runs all day needs S1; a lab demo rig with short bursts can use S3.
Insulation class: how hot the windings may run
The insulation class sets the maximum winding temperature the insulation survives long-term:
| Class | Max temperature | Typical use |
|---|---|---|
| B | 130 °C | Common in standard motors |
| F | 155 °C | Most modern industrial motors |
| H | 180 °C | High-temperature / harsh duty |
A Class F motor running at Class B temperatures lasts dramatically longer — insulation life roughly halves for every 10 °C above its rating, which is why reputable manufacturers build in the margin. Ambient temperature matters too: the rating assumes 40 °C ambient, so a motor in a hot enclosure or a non-ventilated corner has less headroom than the class suggests.
IP rating: dust and water sealing
The IP code (e.g. IP55) has two digits: solids protection, then liquids protection.
- First digit: 5 = dust-protected (some ingress permitted but not enough to interfere), 6 = dust-tight.
- Second digit: 4 = splash-proof, 5 = water jets, 6 = powerful jets / temporary immersion conditions.
IP55 is the workhorse rating for industrial motors — fine for dusty workshops and washdown splashes. IP23 (open ventilated) motors belong indoors in clean panels; IP65+ is for genuinely wet or dusty environments. The rating applies to the as-shipped motor — a missing terminal-box gasket or an uncapped cable entry voids it in practice.
Efficiency: the IE classes
IE1 (standard) → IE2 (high) → IE3 (premium) → IE4 (super-premium) under IEC 60034-30. The plate's IE class tells you how much of the input power becomes shaft power versus heat. IE3 is the common minimum for new industrial motors in many markets now; the efficiency difference between IE2 and IE3 on a motor that runs thousands of hours a year pays for itself in electricity.
Decision: for a project motor that runs occasionally, IE class is a minor concern. For anything running daily, prefer IE3 — it also runs cooler, which compounds into longer insulation life.
Power factor: cos phi
A typical plate shows cos φ ≈ 0.82–0.88 at full load. Induction motors draw magnetising current that does no useful work, so the power factor lags. Two practical notes:
- Power factor is worst at light load — a motor at 25% load may show 0.5 or worse. Oversizing a motor "to be safe" guarantees a poor power factor and wasted current capacity in your cables.
- This is the number behind power-factor correction: capacitor banks sized from motor loads are a standard industrial exercise, covered in the APFC panel guide linked below.
Frame size, mounting and service factor
- Frame size (e.g. 112M) standardises the shaft height, mounting-hole pattern and shaft dimensions — it is what lets you swap brands without re-machining the base.
- Mounting codes like B3 (foot-mounted) or B5 (flange-mounted) describe how the motor bolts to the machine.
- Service factor (SF), e.g. 1.15, is the permissible continuous overload multiplier: an SF 1.15 motor may run at 115% of rated power continuously without invalidating its rating. It is a margin for real-world conditions, not a licence to undersize the motor — and the overload relay must still be set with the service-factor current in mind.
Worked example: reading one complete plate
Take this illustrative plate (values typical of a real 3 kW motor, shown as an example):
Type Y2-100L2-4 · 3 kW · 400 V Δ / 690 V Y · 6.1 / 3.5 A · 1440 rpm · 50 Hz · cos φ 0.85 · S1 · Ins. Cl. F · IP55 · IE3 · Frame 100L · SF 1.0
Reading it end to end:
- 3 kW, 1440 rpm — a 4-pole motor (nearest synchronous speed 1500 rpm, ~4% slip), delivering 3 kW mechanically at the shaft.
- 400 V Δ — on a 400 V supply, wire it in delta; full-load current is 6.1 A. The overload relay gets set just above 6.1 A (per the relay's own setting practice), and the contactor and cable are chosen for at least this current with margin.
- S1 — rated for continuous running; no duty-cycle restriction on your conveyor or pump.
- Class F, IP55 — 155 °C winding limit, dust-protected and jet-resistant: fine for a workshop floor.
- IE3, cos φ 0.85 — premium efficiency; draws about 3 kW / (0.85 × √3 × 400 × 0.93) ≈ 6 A, consistent with the plated 6.1 A — the numbers cross-check, which is how you know you read it right.
That last cross-check is the habit to build: the plate's numbers must agree with each other through the three-phase power relation. If they do not, you misread a field — recheck before wiring.
The five mistakes students make
- Setting the overload relay from the wrong connection's current — 3.5 A on a delta-wired motor means nuisance trips and no real protection.
- Wiring 690 V-star motors in delta on a 690 V supply (or vice versa) — mismatching connection and supply voltage saturates or starves the windings.
- Ignoring duty type — running an S3 intermittent motor continuously, then blaming "a faulty motor" for the burnout.
- Reading speed as synchronous speed — expecting exactly 1500 rpm from a 1440 rpm plate and diagnosing healthy slip as a fault.
- Ordering by kW alone — same power, wrong voltage, wrong speed, wrong frame: the replacement does not fit the base or the starter. Quote the full plate when ordering.
FAQ
What if the nameplate is missing or unreadable?
Measure what you can (frame size, shaft diameter) and check the driven equipment's requirements, but treat the motor as unknown for protection settings — never guess the FLA. For lab work, run it unloaded first and check current against typical values for its frame, or replace it: an unidentifiable motor is a liability in a student project.
Can I run a 50 Hz motor on a VFD at 60 Hz?
A VFD can drive it above base speed, but power, cooling and bearing limits all shift — the fan cools less effectively relative to the higher losses, and the nameplate ratings no longer apply directly. Possible within limits, not free.
Why do two identical-kW motors have different currents?
Efficiency and power factor differ between designs and IE classes. Current is what the supply must deliver; two 3 kW motors can easily differ by half an amp. Always use the plated current, never a rule of thumb.
Does the nameplate tell me the starting current?
Not directly. Direct-on-line starting current is typically 6–8 times FLA for standard motors (the design letter/code on some plates, e.g. NEMA code letters, encodes locked-rotor kVA). That is why starter selection — DOL vs star-delta vs soft starter — is a separate decision from the nameplate reading.
What does "AMB 40 °C" mean?
The maximum ambient temperature the ratings assume. Above it, derate the motor — the insulation and the cooling were both calculated for 40 °C air.
Limitations
This guide covers standard three-phase squirrel-cage induction motor plates under IEC conventions, the type students meet in labs and workshops. It does not cover DC motor plates, single-phase capacitor-motor specifics, NEMA-frame conventions in full detail, or hazardous-area markings (Ex d, Ex e) — those appear on motors for explosive atmospheres and deserve their own guide. Nameplate layouts vary by manufacturer; the fields are standard even when the order is not.
