Digital Dice using 555 Timer and 7-Segment Display

Before microcontrollers, randomness in a circuit came from physics: a counter running too fast for a human to time, frozen at the moment a finger leaves a button. This project is that idea built properly — a 555 timer astable clock near 50 Hz drives a CD4017 decade counter, the button gates the clock, and on release the count freezes and a 7-segment display shows a die face 1–6 through a BCD decoder. Every block is a syllabus topic: the 555's RC timing, counter sequencing, switch debouncing, seven-segment decoding and current-limited LED drive. Because there is no code to hide behind, the student must understand each IC's behaviour to make it work — and that shows in the viva.

1. The 555 astable multivibrator generates a clock near 50 Hz, set by its resistor-capacitor timing network.
2. The clock drives the CD4017 decade counter, whose ten outputs sequence continuously while the button is held.
3. Releasing the roll button gates the clock off through the debounce stage, freezing the counter at an unpredictable output.
4. Reset feedback wiring forces any count above 6 back to 1, so the frozen state is always a valid die face 1–6.
5. The frozen BCD value feeds a 4511 decoder/driver, which lights the correct segments on the 7-segment display.
6. The buzzer sounds during the roll and stops on freeze, marking the result.

Tech stack:

• NE555 timer IC (astable + monostable)
• CD4017 decade counter
• CD4511 BCD-to-7-segment decoder
• Common-cathode 7-segment display
• RC debounce network
• Tilt sensor (shake-to-roll)
• 9V battery / 5V regulated supply
• Breadboard prototype build

• [Pure hardware design] No microcontroller — the entire dice is 555 timer, 4017 counter, 4511 decoder and logic, built on a breadboard.
• [50 Hz free-run clock] A 555 astable stage runs the counter far faster than human reaction time, so the frozen value is effectively random.
• [7-segment die display] A common-cathode display driven through a BCD-to-7-segment decoder shows faces 1–6.
• [Hardware debounce] The roll button is debounced with an RC network plus a 555 monostable, so one press always means one roll.
• [Shake-to-roll option] A tilt sensor input lets the dice "roll" when shaken, like a real die in a cup.
• [Roll sound] A piezo buzzer chirps while the counter runs and clicks on freeze, giving the roll an audible feel.
• [Mod-6 counter logic] Reset wiring on the 4017 skips states 0 and 7–9, so only valid die faces 1–6 ever appear.

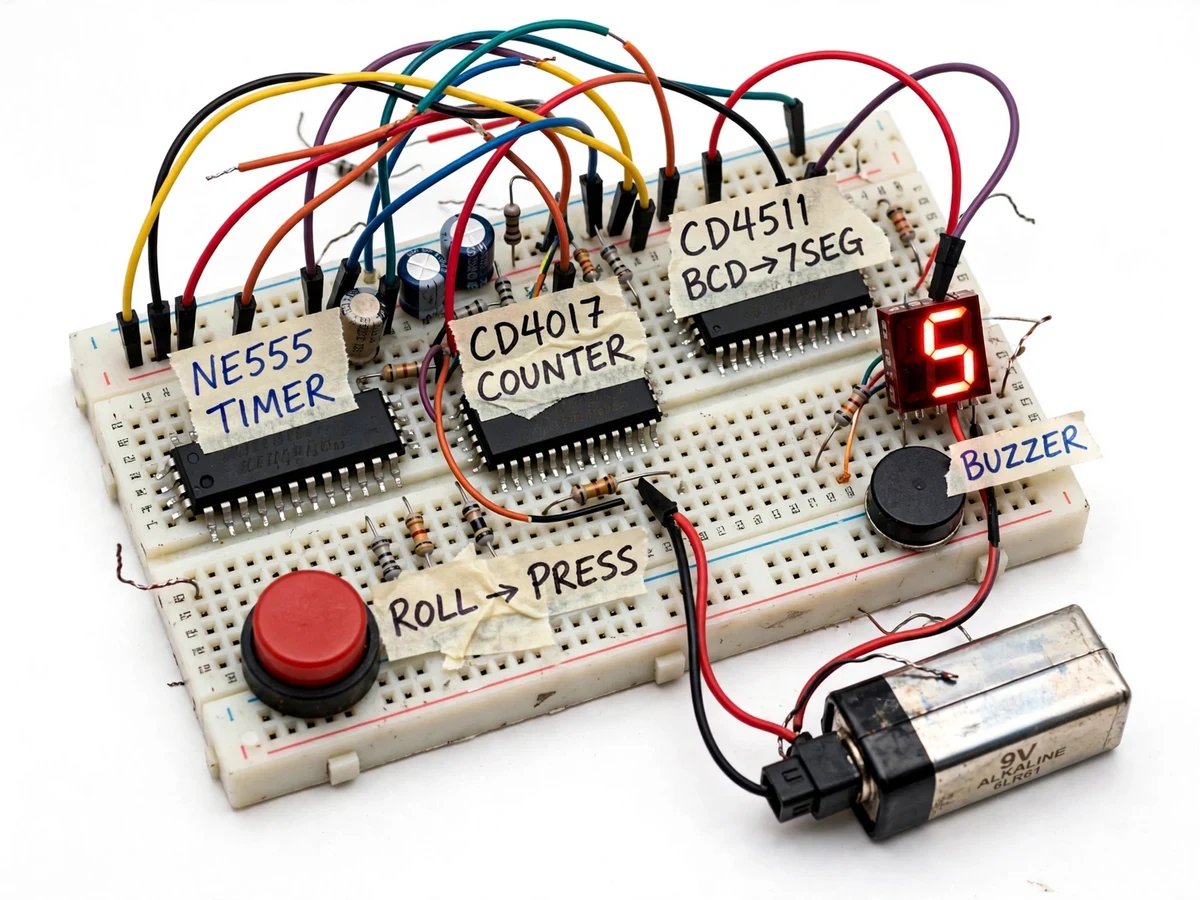

• Working digital dice prototype on breadboard with display and buzzer
• Complete circuit diagram with component values and timing calculations
• 555 timing and debounce design notes (RC math shown)
• Build and testing procedure
• Project report PDF (555 theory, counter/decoder operation, debouncing, randomness discussion)
• PPT presentation for final review
• Viva Q&A preparation document (astable operation, mod counters, BCD decoding, metastability-free freeze)

• The "randomness" is pseudo-random from human timing, not cryptographic — the report explains exactly why it is unpredictable enough for a dice and no more.
• A 555 clock drifts with temperature and supply voltage; the roll rate is approximate by design and needs no precision.
• The breadboard build is for demonstration — moving to a soldered PCB is listed as future scope for a pocketable version.
• Only one die face is displayed; multi-dice games need multiple builds or a microcontroller version, noted as an extension.
• The buzzer roll sound is a simple on/off tone, not synthesized audio.
