You type a sentence, and a machine paints a picture from it. Diffusion models power Stable Diffusion, DALL-E, and Midjourney — and unlike GANs, they are remarkably stable to train and conceptually elegant. If you have built a classifier, you already understand half the machinery; the other half is a simple idea taken to its logical conclusion: destroy an image with noise, then learn to undo the destruction.
This guide explains diffusion models from first principles: the forward and reverse processes, why training is just noise prediction, what the U-Net does, how text conditioning steers generation, and what latent diffusion changed. The math stays at the intuition level — no stochastic calculus required.
The core idea: destroy, then learn to restore

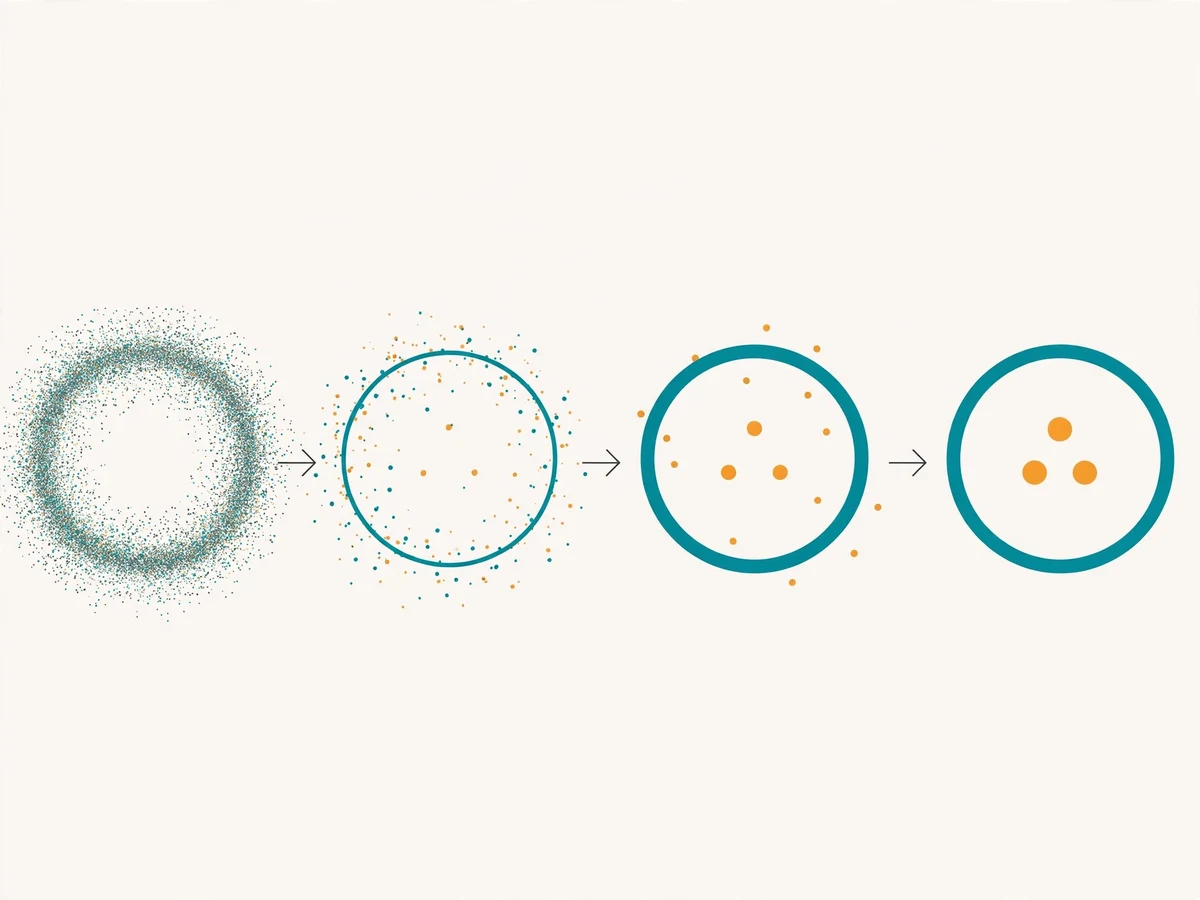

Take a photo and gradually add Gaussian noise, step by step, over hundreds of steps. Eventually the photo becomes pure static — indistinguishable from random noise. That is the forward process (also called the diffusion process). It is fixed, has no learned parameters, and is mathematically convenient: at any step, you can compute the noisy image directly from the original in one formula.
Now train a neural network to do the reverse: given a noisy image and the current step number, predict the noise that was added. Subtract the predicted noise, and you get a slightly cleaner image. Repeat. This is the reverse process (denoising), and it is the only part the network learns.
Generation works by starting from pure noise and running the reverse process. The network never saw that exact image — it learned the general skill of removing noise from images of the training distribution, so starting from random noise and denoising repeatedly lands on a coherent image.
Note: This is very different from a GAN. There is no generator-discriminator arms race, no mode collapse, no delicate loss balancing. The training objective is a simple regression: predict the noise. That simplicity is why diffusion won.
Forward process: adding noise on a schedule
The forward process is a Markov chain. At each step t, we add a small amount of Gaussian noise to the image from step t−1:
q(x_t | x_{t−1}) = N(x_t; √(1−β_t) · x_{t−1}, β_t · I)
The β values (the noise schedule) control how much noise is added per step — typically increasing linearly or with a cosine schedule from near 0 to around 0.02 over T = 1000 steps.
The clever part: because the noise is Gaussian, you can skip straight to step t from the original image x_0 without simulating every intermediate step:
x_t = √(ᾱ_t) · x_0 + √(1 − ᾱ_t) · ε, where ε ~ N(0, I)
Here ᾱ_t is the cumulative product of (1 − β) terms. This closed form is what makes training efficient — you sample a random timestep, a random noise vector, and train on that single step.
Reverse process: learning to denoise
The reverse process is also modeled as a Markov chain, but with learned parameters:
p_θ(x_{t−1} | x_t) = N(x_{t−1}; μ_θ(x_t, t), Σ_θ(x_t, t))
In practice, instead of predicting the mean μ directly, the network predicts the noise ε that was added. This reparameterization gives a beautifully simple training objective — mean squared error between the true noise and the predicted noise:
L = E[ || ε − ε_θ(x_t, t) ||² ]
That is the whole training loss. No adversarial games, no variational bounds in the code — just "given this noisy image, what was the noise?" The network learns it by seeing millions of (noisy image, noise) pairs.
At inference, you start from x_T ~ N(0, I) and iterate: predict the noise, subtract a fraction of it, add a little fresh noise (except at the final step), repeat 1000 times — or fewer with fast samplers.
The U-Net: the network that predicts noise
The denoising network is almost always a U-Net — an encoder-decoder with skip connections, borrowed from medical image segmentation. Why it fits:
| U-Net component | Role in diffusion |
|---|---|
| Downsampling encoder | Compresses the noisy image into multi-scale features |
| Bottleneck | Captures global structure at low resolution |
| Upsampling decoder | Reconstructs the noise prediction at full resolution |
| Skip connections | Pass fine spatial detail straight across, so the output aligns pixel-for-pixel with the input |
| Timestep embedding | A sinusoidal encoding of t tells the network "how noisy is this input?" so one network handles all steps |
The timestep conditioning is essential: removing a little noise from a nearly-clean image is a different task than removing a lot of noise from static, and the network must know which job it is doing.
A minimal training loop in PyTorch looks like this:
import torch
# x0: batch of clean images, model: U-Net predicting noise
t = torch.randint(0, 1000, (batch_size,)) # random timesteps
noise = torch.randn_like(x0) # true noise
x_t = q_sample(x0, t, noise) # forward diffusion formula
pred = model(x_t, t) # predict the noise
loss = torch.nn.functional.mse_loss(pred, noise) # the entire objective
optimizer.zero_grad(); loss.backward(); optimizer.step()
That loop, scaled up, is what trains models like Stable Diffusion.
How text enters the picture: conditioning
Unconditional diffusion generates random plausible images. Text conditioning steers generation toward a prompt. The mechanism is cross-attention: the text prompt is encoded (Stable Diffusion uses a CLIP text encoder), and the U-Net's attention layers attend to the text embeddings while denoising.
At each denoising step, the network effectively asks: "given this prompt, what should this region look like as it gets cleaner?" Classifier-free guidance — a technique worth knowing by name — runs the network twice per step (once with the prompt, once without) and pushes the result away from the unconditional prediction, which is what the "guidance scale" slider in every UI controls.
Latent diffusion: why Stable Diffusion is fast
Running 1000 denoising steps on 512×512 pixels is expensive. Latent diffusion (the innovation behind Stable Diffusion, Rombach et al., 2022) does the diffusion in a compressed latent space instead:
- A pretrained autoencoder (VAE) compresses the image to a latent roughly 8× smaller spatially (64×64 instead of 512×512).
- The diffusion process runs entirely on latents.
- The VAE decoder converts the final latent back to pixels.
The VAE is frozen — it is not part of diffusion training. This cuts compute dramatically while barely affecting quality, because the VAE already threw away imperceptible detail.
Diffusion vs GANs: the honest comparison
| Aspect | GANs | Diffusion models |
|---|---|---|
| Training stability | Fragile — generator and discriminator must stay balanced | Stable — simple regression objective |
| Mode coverage | Prone to mode collapse (repeats similar outputs) | Covers the distribution well |
| Sample quality | Excellent at its peak | Matched or exceeded GANs by 2021–2022 |
| Sampling speed | One forward pass — very fast | Tens to hundreds of steps — slow without fast samplers |
| Controllability | Hard to steer precisely | Text conditioning, inpainting, and editing are natural |
The speed disadvantage is real: generating one image can take seconds to a minute on consumer hardware. Fast samplers (DDIM, DPM-Solver) cut the steps from 1000 to 20–50 with little quality loss — DDIM is the one to learn first.
Running diffusion yourself: practical path
You do not need to train a diffusion model from scratch — that takes thousands of GPU-hours. The student-accessible path:
- Inference: install
diffusersand run a pretrained Stable Diffusion pipeline on a free Colab GPU. Generation works out of the box. - Fine-tuning: LoRA adapters on Stable Diffusion let you teach it a new style or subject on a single GPU in under an hour.
- Training small: train a tiny unconditional diffusion model on CIFAR-10 or MNIST. It converges on a single GPU and teaches you the full loop.
from diffusers import StableDiffusionPipeline
import torch
pipe = StableDiffusionPipeline.from_pretrained(
"runwayml/stable-diffusion-v1-5", torch_dtype=torch.float16
).to("cuda")
image = pipe("a watercolor painting of a lighthouse at dusk",
num_inference_steps=30).images[0]
image.save("lighthouse.png")
For the fine-tuning route, the LoRA fine-tuning guide explains the adapter technique that applies equally to diffusion models and LLMs.
Common mistakes
- Sampling with too few steps and blaming the model. Below ~20 DDIM steps, images look undercooked. Tune
num_inference_stepsbefore changing anything else. - Confusing the VAE with the diffusion model. Blurry outputs are often a VAE decode issue; incoherent composition is a diffusion/conditioning issue. Diagnose accordingly.
- Training on a tiny dataset from scratch. Diffusion needs data diversity. On small datasets, fine-tune a pretrained model instead of training from random initialization.
- Ignoring the noise schedule. The linear schedule from the original DDPM paper is not optimal for all resolutions; the cosine schedule generally behaves better. It is a hyperparameter, not a law.
- Evaluating by vibes only. Track FID on a held-out set during training (see the note on honest evaluation below) — eyeballing samples cherry-picks.
Honest evaluation: how quality is measured
The standard metric is FID (Fréchet Inception Distance): it compares the distribution of generated images against real images using Inception-v3 features. Lower is better. Published FID numbers are comparable only when computed on the same dataset with the same protocol — never quote an FID without naming both. For class-conditional models, Inception Score is sometimes reported alongside, though FID is the more trusted of the two.
Where to go from here
Diffusion is one pillar of modern generative AI; the other is the transformer. Read the transformer architecture guide to understand the attention mechanism that also powers text conditioning. If you want to adapt models rather than train them, the LoRA fine-tuning guide covers parameter-efficient adaptation. For running big models on modest hardware, see model quantization. More generative-AI topics live in the AI & Machine Learning branch hub.
